2-17
Reinstalling the Rear Glass
To reinstall the rear glass, do the following:

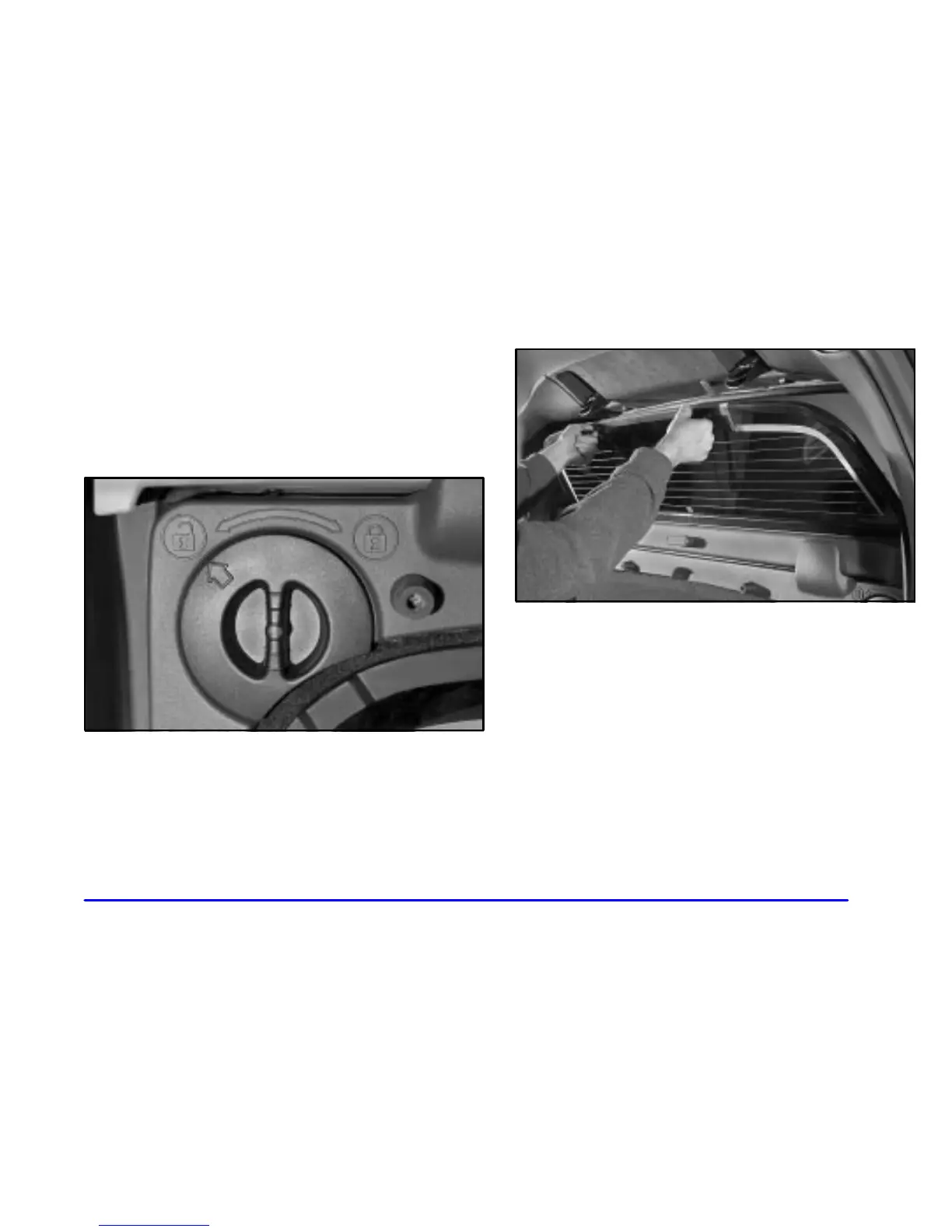

1. Squeeze and pull down the latch levers (A),
located near the upper corners of the rear glass,
so they unlatch.
2. Hold the rear glass in place with one hand and turn
the glass lock knobs, located at both top corners of
the glass storage pocket, to the unlocked position.
3. Pull the rear glass out from the storage pocket using
the grab handles.
4. With the rear glass tilted at an angle, place
the bottom edge in the lower channel of the
window frame.
To Next Page
