3
Installation Preparation

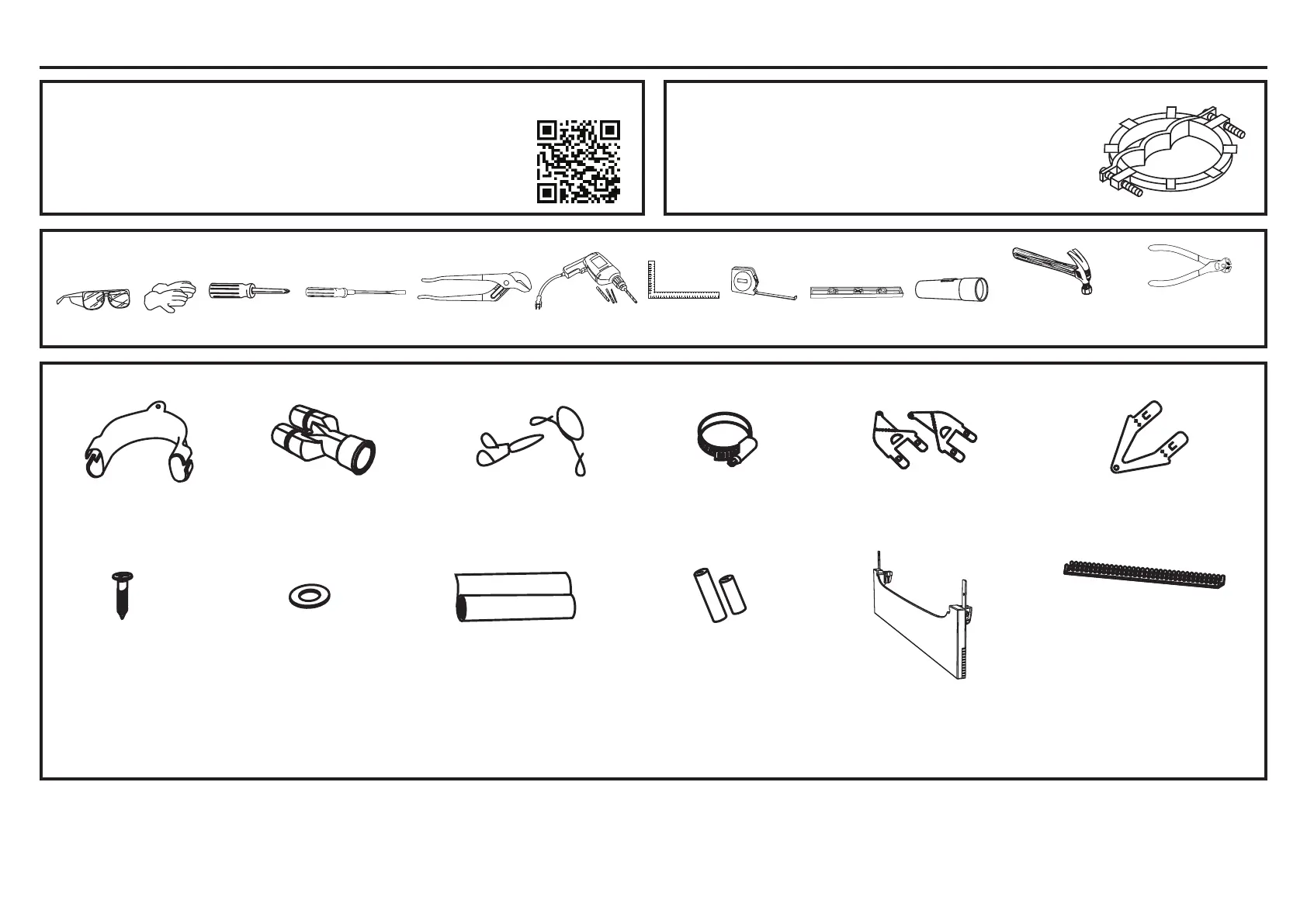

PARTS SUPPLIED IN INSTALLATION PACKAGE
If the drain hoses supplied are not long enough to reach your services, you must use a Drain Hose Extension Kit WD24X30798 which will extend the drain hoses by 11’ 10” (3.6m).
The kit is available from GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.
Clamp (1)
(for securing
Drain hose joiner)
Wire clip (2)
(for securing
Drain hose joiner)
Phillips
»´PP
screws (9)
Drain hose
support (1)
Moisture protection
tape (1)
(to prevent moisture
damage to cabinetry)
Drain hose
joiner (1)
Top
mounting
brackets (2)
OPTIONAL
Prefinished
toekick (1)
Edge Protector (1)
(If the services hole is through a
metal partition, the hole must be
protected with the Edge Protector
supplied to prevent damage to the
power cord or hoses.)
Rubber washer
for inlet hose (1)
(comes already
fitted)
Hexagonal
socket for feet
adjustment (2)
(long & short)
Side mounting
bracket kit
(A and B) (2)
OPTIONAL
NOTE: Consider recycling options for your appliance packaging material.
DISHWASHER DRAWER INSTALLATION OVERVIEW
This video provides an overview of what is needed to install a Dishwasher
Drawer.
It is intended as an overview only of the installation process and is not
intended to be used as a guide on how to install the Dishwasher Drawer
yourself.
TOOLS YOU WILL NEED
Measuring
Tape
Phillips-Head
Screwdriver
Flashlight
GlovesSafety Glasses
Flat Head
Screwdriver
Carpenter’s
Square
Hammer
(For Hardwired
Installations Only)
USA
Flush Edge Wire Cutters
(For Hardwired
Installations Only)
Level
PART YOU WILL NEED
Strain Relief Clamp
(For Hardwired
Installations Only)
Drill and Bits
Pliers
(Channel Lock)
