12
buer tank
thermostatic
radiator valves
(TRV) on each
radiator
TRV
TRV
TRV
TRV
TRV
TRV
R
W
C
T
T
com
power
zone
transformer
N LL
RELAY 1
C N/ON/C C N/ON/C
RELAY 2
ZSR101
T
T
L
N

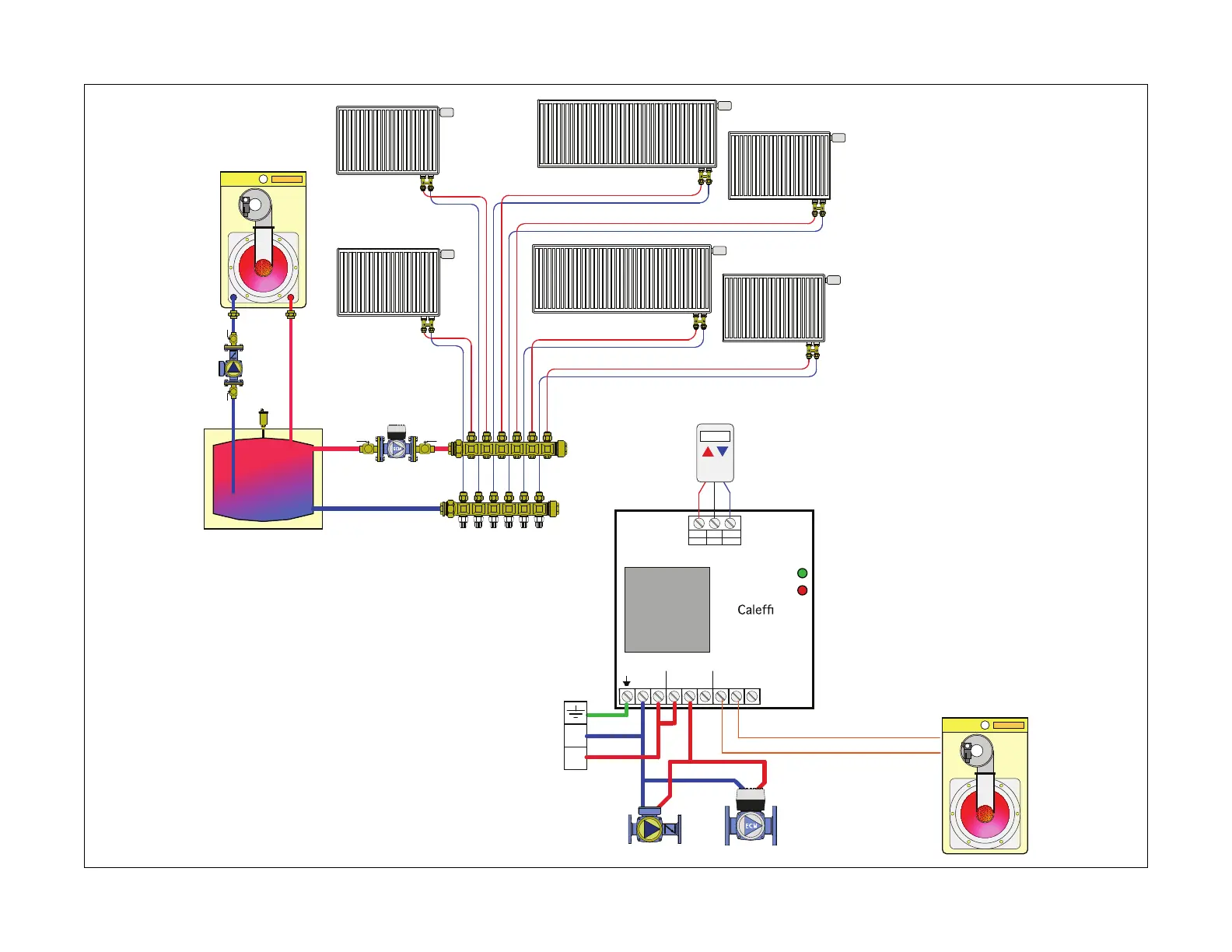

A3 - Single master thermostat, panel radiators with TRVs, variable speed pump
Hydronic diagram is for illustration purposes only, some components have been removed for simplicity.
