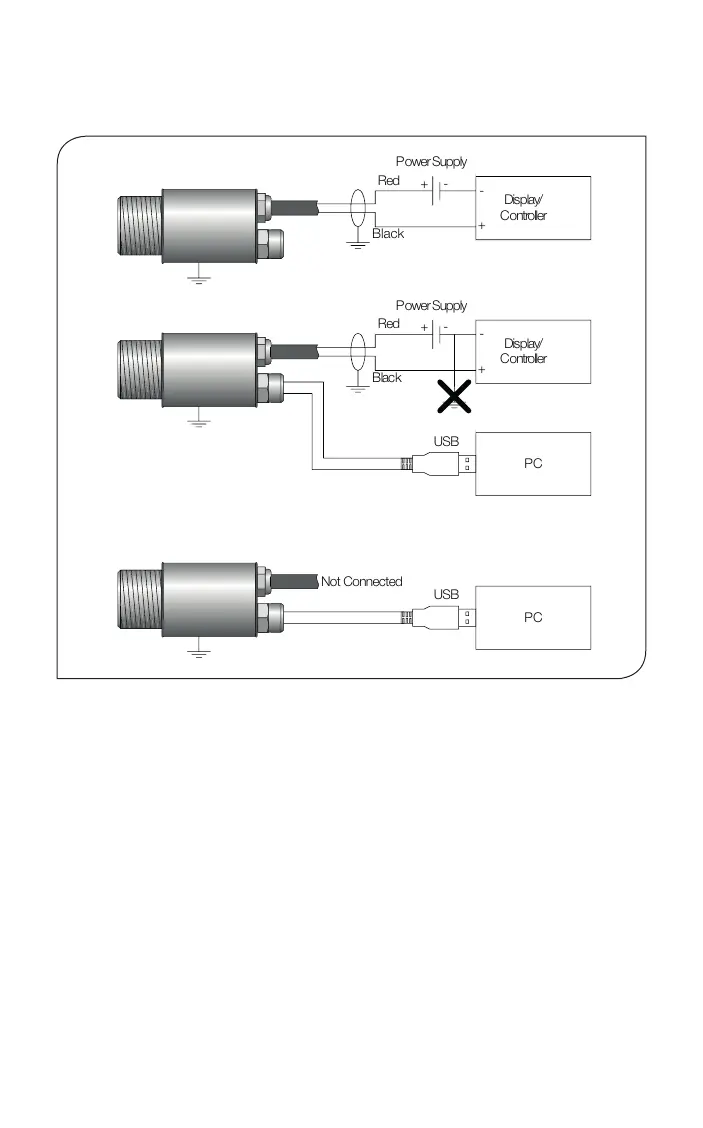

CONNECTIONS
The sensor will operate with either the 4 to 20 mA cable connected, the USB cable connected,
or both.
+-
-
+
Display/
Controller
Red
kcalB
Power Supply
+-
-
+
Display/
Controller
Red
Black
Power Supply
PC
PC
Not Connected
USB
USB
SOFTWARE
The sensor may be used with a choice of software: CalexConfig (for one sensor), CalexSoft 2
(for multiple sensors), or third-party Modbus software.
System Requirements
• Windows 7 or newer
• USB 2.0 port, Internet access (for software download)
Installation
1 Download and run the software installer at www.calex.co.uk/software
2 Follow the on-screen instructions
NOTE: Do not use any other USB cable than the one supplied with the sensor. Do not
connect the sensor to the PC before the software is installed.
CONNECTING THE SENSOR TO A PC
1 Connect the circular connector on the USB cable provided to the sensor
2 Connect the USB A connector on the USB cable provided to an available USB 2.0 port
3 Double click on the software desktop icon
