The CamnSmart PTZ Wi-Fi Camera is a smart surveillance device designed for easy integration into a home or office environment. It features a PTZ (Pan-Tilt-Zoom) mechanism, allowing for flexible monitoring of an area. The camera is designed to be powered via an E27 power connector, resembling a standard light bulb, which simplifies installation as it can be screwed into existing light sockets.

Function Description:

The primary function of the CamnSmart PTZ Wi-Fi Camera is to provide video surveillance. It connects to a Wi-Fi network, enabling remote access and control via a dedicated mobile application, "Tuya Smart." The camera supports real-time video streaming, allowing users to view live footage from their smartphone or tablet. With its PTZ capabilities, users can remotely adjust the camera's viewing angle to cover a wider area. The camera also supports video recording, either continuously or based on motion detection, with footage stored on a microSD card. Two-way audio communication is possible through the built-in microphone and speaker.

Important Technical Specifications:

The manual presents four models: E27SX1TY, E27XS2TY, E27STY, and E27TY, each with slight variations in dimensions and features.

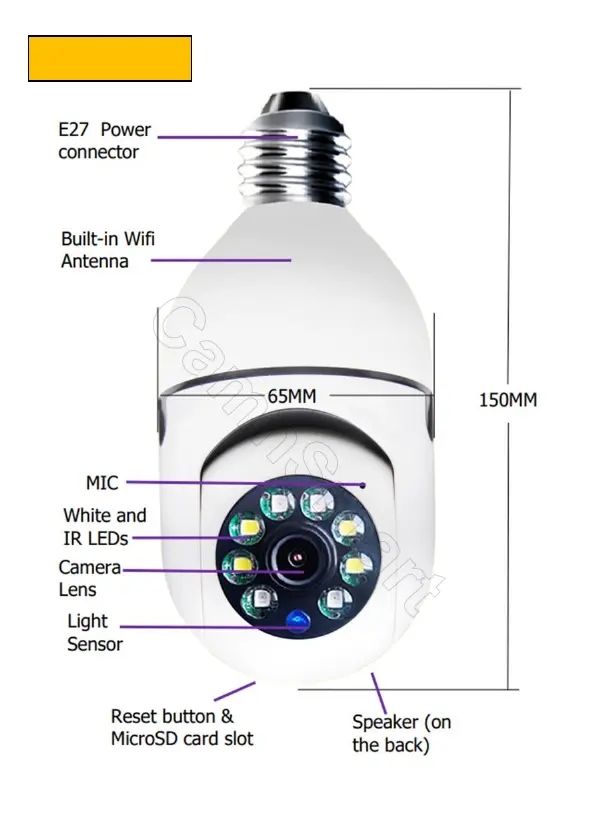

Power Connector: All models utilize an E27 power connector.
Wi-Fi Connectivity: All models feature a built-in Wi-Fi antenna and support 2.4GHz Wi-Fi. It's noted that if a router operates at 5GHz, it might be integrated with 2.4GHz, and users might need to configure their router to set a distinct name for the 2.4GHz Wi-Fi network.
Dimensions:
- E27SX1TY & E27XS2TY: 65mm diameter, 150mm height.
- E27STY: 95mm diameter, 180mm height.
- E27TY: 110mm diameter, 210mm height.
Weight:
- E27STY: 320g.
- E27TY: 387g.
Audio: All models include a MIC (microphone) and a speaker (located on the back).
Imaging Components: All models feature a Camera Lens and a Light Sensor.
Illumination:
- E27SX1TY: Features IR LEDs.
- E27XS2TY: Features White and IR LEDs.
- E27STY & E27TY: Feature IR & white LEDs.
Storage: All models include a MicroSD card slot for local video recording.
Reset Mechanism: All models have a reset button. For E27STY and E27TY, the reset button and MicroSD card slot are located under a cover.

Usage Features:

Easy Installation: The E27 power connector allows the camera to be screwed into a standard light bulb socket, simplifying the power supply.
Mobile App Control: The camera is controlled via the "Tuya Smart" app, available on Apple Store and Android app store.
Account Management: Users need to register an account on the app. The app includes features for password recovery.
Device Pairing: The camera can be added to the app using a QR code scanning method. The app guides the user through connecting the camera to their Wi-Fi network by entering the Wi-Fi password.
PTZ Control: The app interface provides controls for panning, tilting, and zooming the camera.
Two-Way Audio: The built-in microphone and speaker enable two-way communication, allowing users to listen in and speak through the camera.
Night Vision: IR LEDs provide night vision capabilities, while models with white LEDs can offer color night vision or additional illumination.
Motion Detection: The camera can detect motion and trigger event-based recording.
Multiple Recording Modes: Users can choose between "Event recording" (motion-triggered) and "Non-Stop" (continuous) recording modes via the app's settings.
Location Services: Users are advised to enable location services on their phone settings for proper app functionality.

Maintenance Features:

SD Card Management:
- The camera requires a high-speed microSD card (C10 or higher, U3 preferable) for video recording due to the demands of video streaming.
- The SD card needs to be formatted through the app's "Storage Settings" before first use.
- Users can enable "Local Recording" and select their preferred recording mode (Event or Non-Stop) in the app's "Storage Settings."
Reset Functionality: In case of issues, the camera can be reset by pressing the reset button for 3-5 seconds until a "Reset successfully" prompt is heard. This can resolve connectivity or operational problems.
Firmware Updates: The app provides a "Device Update" option, indicating that firmware updates may be available to improve performance or add new features.
Troubleshooting: The manual provides steps for troubleshooting if the camera does not rotate or speak upon initial power-up, advising users to check power supply and perform a reset.
App Interface for Settings: The "Settings Interface" within the app allows users to manage various camera parameters, including storage settings, notification preferences, and sharing options.
