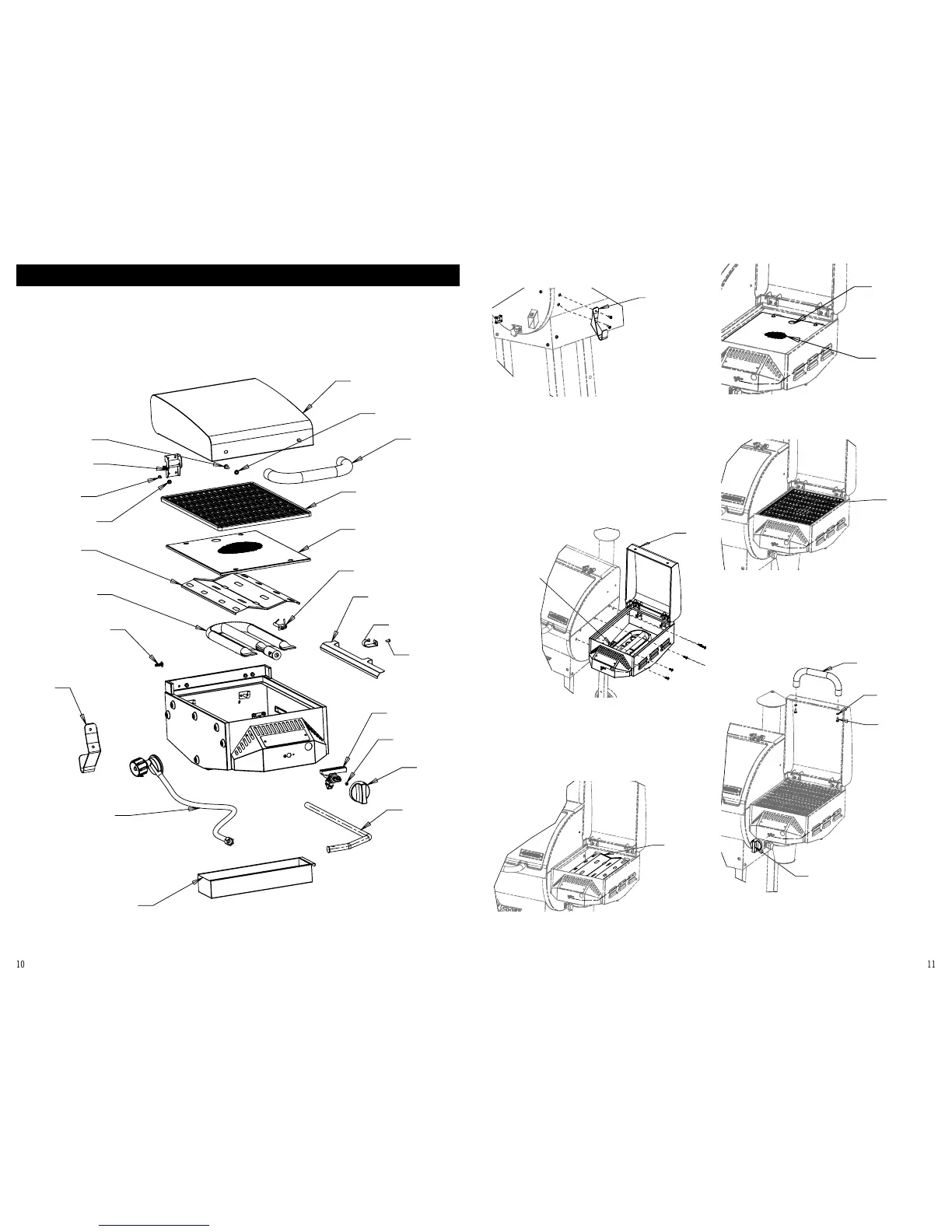

Camp Chef BBQ SEAR BOX - Parts List and Assembly; PGSEAR Component Identification; Assembly Instructions

11
10
PGSEAR PARTS LIST
1115-PGSEAR
LID
PGSEAR-1
LID HANDLE
PGSEAR-2
M6 BOLT (2)
BB30L HINGE (2)
BB30L-5
CAST IRON GRILL (1)
PGSEAR-3
FLAVOR SCREEN (1)
PGSEAR-4
HEAT DEFLECTOR (1)
PGSEAR-5
BURNER (1)
PGSEAR-6
IGNITOR ELECTRODE (1)
PGSEAR-7
VALVE (1)
PGSEAR-15
KNOB (1)
PGSEAR-11
MANIFOLD (1)
PGSEAR-12
T
ANK BKT (1)
PGSEAR-14
LP REGULATOR (1)
HRL
GREASE TRAY (1)
PGSEAR-13
MANIFOLD COVER (1)
PGSEAR-8
MANIFOLD BKT (2)
PGSEAR-9
#8-32 SCREW (7)
M4 SCREW (2)
#8-32 KEPSNUT (4)
#8-32 SCREW (4)
M6 LOCK WASHER (2)
M6 BOLT (6)
PARTS LIST
1. Remove Qty (2) bolts from drum as shown.
Propane Tank Bracket
2. Install the propane tank bracket as shown
using existing hardware.
3. Remove cast iron grate, flavor screen, and heat
deflector from the sear and set aside
4. Remove side shelf from grill.
5. Install sear as shown using the supplied
hardware.
SEAR
LEVELING SCREW
6. Level the sear using the leveling screw. (Note:
Make sure the lid does not interfere with the
rivets on the side of the grill.)
7. Install heat deflector as shown.
HEA
T DEFLECTOR
8. Install flavor screen as shown with finger hole
at the back.
FLAVOR SCREEN
FINGER HOLE
9. Install cast iron grate as shown.
CAST IRON GRATE
10. Install handle as shown using the supplied
hardware.
11. Install knob and tighten the set screw in the
bottom with the allen wrench that is included.
HANDLE
KNOB
M6 LOCK WASHER (2)
M6 BOLT (2)
