NOTE: This assembly is easier using two people to help hold the parts.

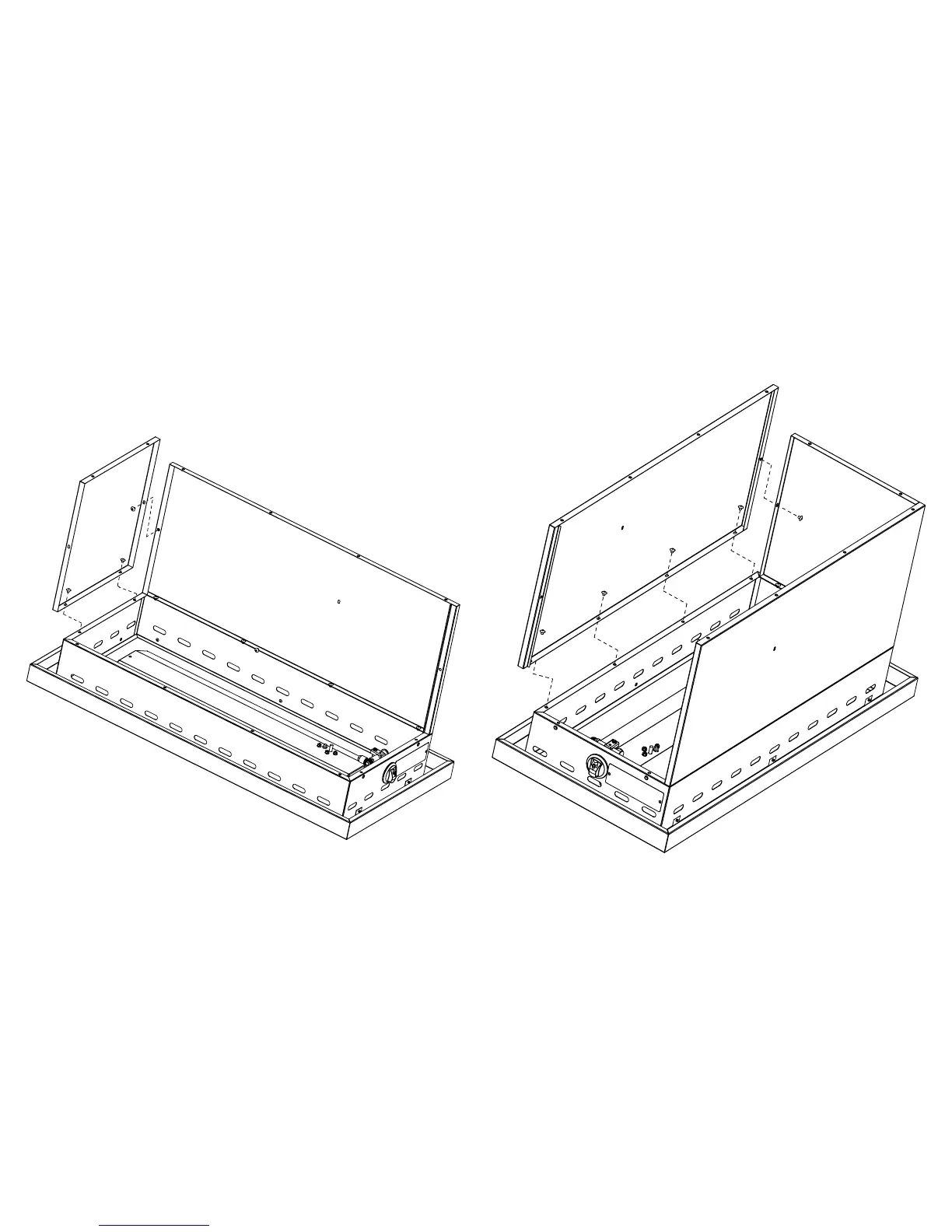

Install back panel as shown using QTY 3 #10 screws. Do not tighten the
screws all the way at this point.
Install side panel as shown using QTY 5 #10 screws. Do not tighten the
screws all the way at this point. Starting with the rear panel make sure
the outside surfaces of the panels are flush with the outside panels of the
bottom assembly and tighten the screws.
