Option 2
The position of the plinth is
set back more than 55 mm from
the front of the furniture.
Note: components not supplied
-hinges
-supports
-door stop
! Firstly, slide the dryer into an
opening of the size indicated in
the diagram (figure 7).
Note: As soon as the hinges
are fixed on the furniture it is
not possible to slide the dryer
in and out.
!
Fix the door to the furniture with
standard hinges and supports
(not supplied) and stop the door
with a std hook (not supplied)
(figure 8).
!
Now it’s possible to fix the hinges
to the door of the furniture.
! Use the N° 4 mount caps (G)
to cover all the holes on the
front panel of the dryer.
GENERAL

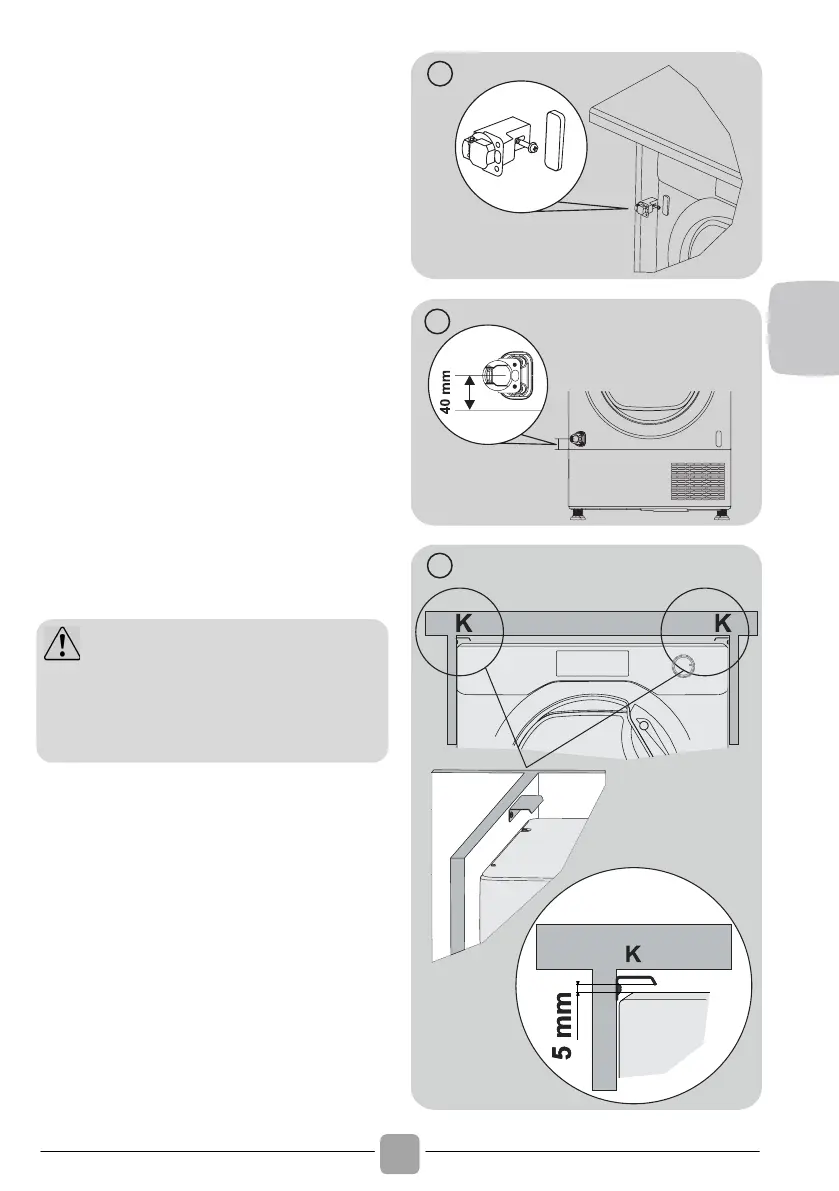

! If the distance between the top
of the dryer and the top of the
furniture is more than 10 mm,
fix the N° 2 L metal brackets
(K) to the furniture sides, to
avoid possible tilting (figure 10).
Pay attention to position
the bottom hinge 40 mm above
the kick plate in order to
facilitate its removal (figure 9).
