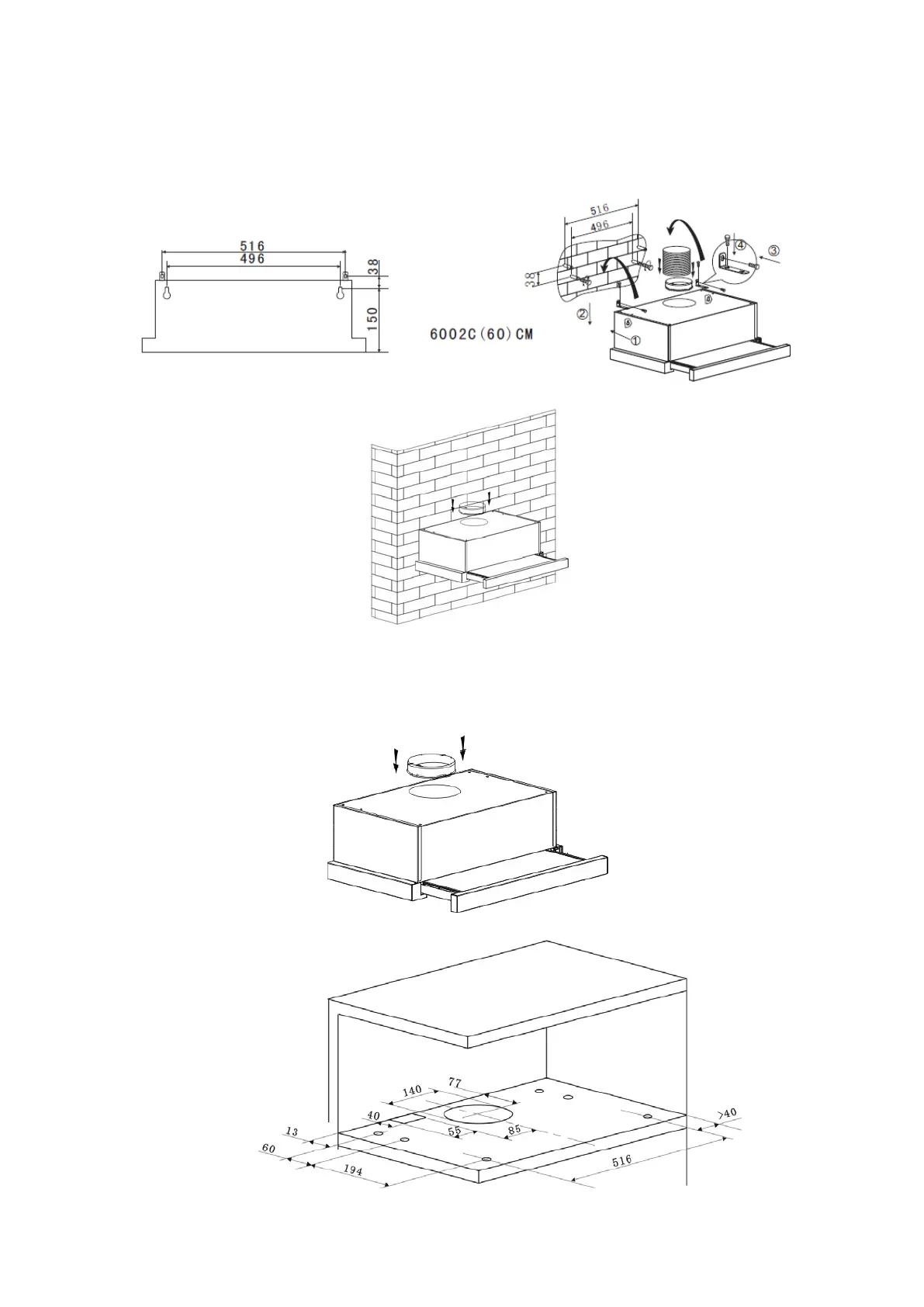

3. The cooker hood is wall mounted by 4 screws (4mm x 30mm) and wall plugs.
Mount the cooker hood on the wall on the back of the cooker hood by 2 screws
(4mm x 30mm) and wall plugs. Then fix the cooker hood on the wall by 2 screws
(4mm x 30mm) and wall plugs through the small L-shaped bracket.
4. Fix the one-way-valve to the air outlet of the cooker hood.
INSTALLATION (Cabinet Mounting)
1. Fix the one-way-valve to the air outlet of the cooker hood.
2. Mount the cooker hood on the cabinet by 6 screws (4x35mm) and flat washers.
