Control Panel

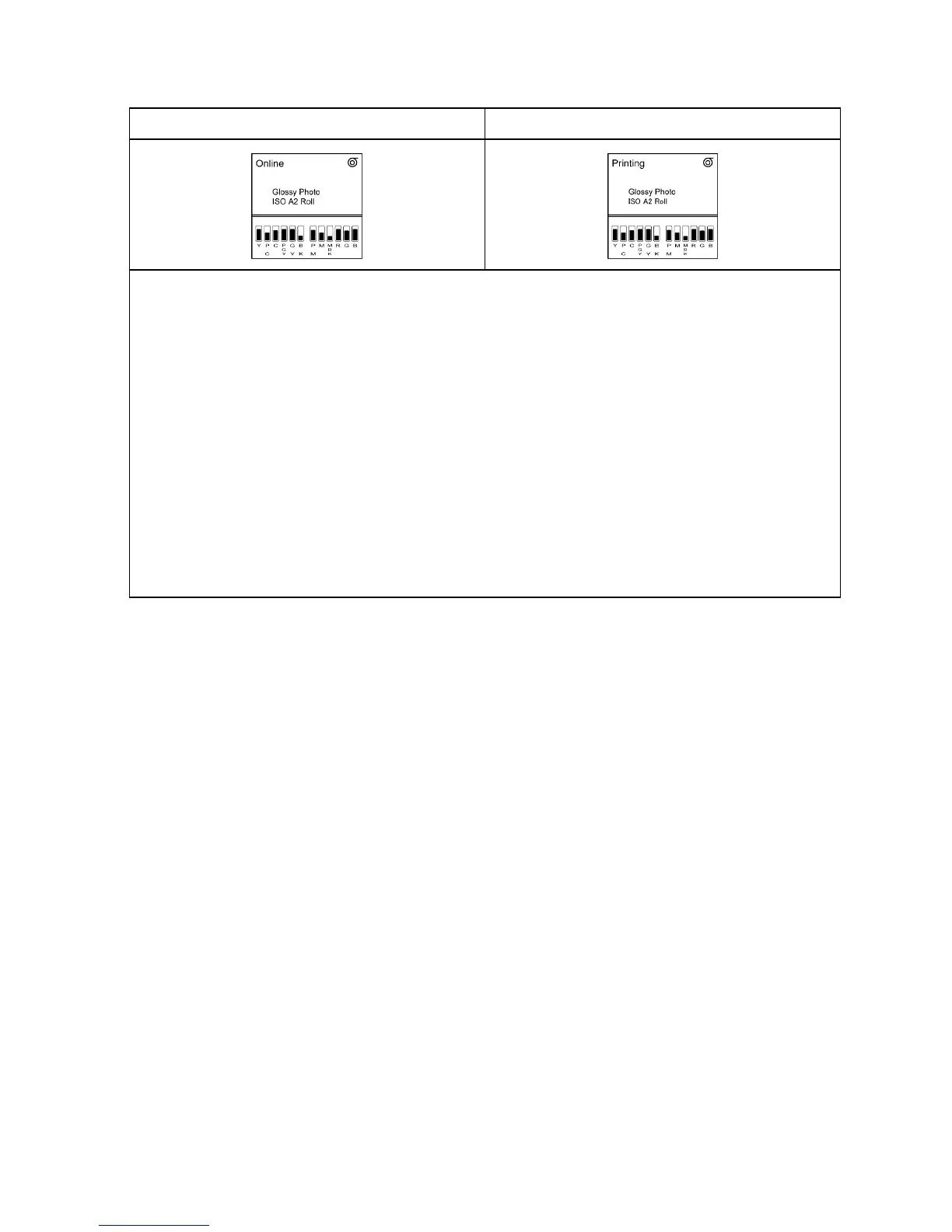

Online, and state of the Control Panel
Not printing
Printing in progress (receiving or
processing print jobs)
Display Screen
• T op Line of the Display Screen
The printer status is displayed here. The selected paper source is indicated by an icon in the upper-right
corner .
Any warning messages are displayed here on lines 2-4. T ake the appropriate action. ( → P .686)
• Middle Level of the Display Screen
The rst and second lines display the paper type and size.
• Bottom Line of the Display Screen
Here, the remaining ink level is indicated. ( → P .621)
Control Panel
• Online lamp
Lit when the printer is online.
• Data lamp
Flashes when print jobs are being received or processed.
• Message lamp
Lit when warning messages are displayed.
