Canvas Vernon CTCKC-4 User Manual

VERNON KITCHEN ISLAND WITH BUTCHER BLOCK TOP
10

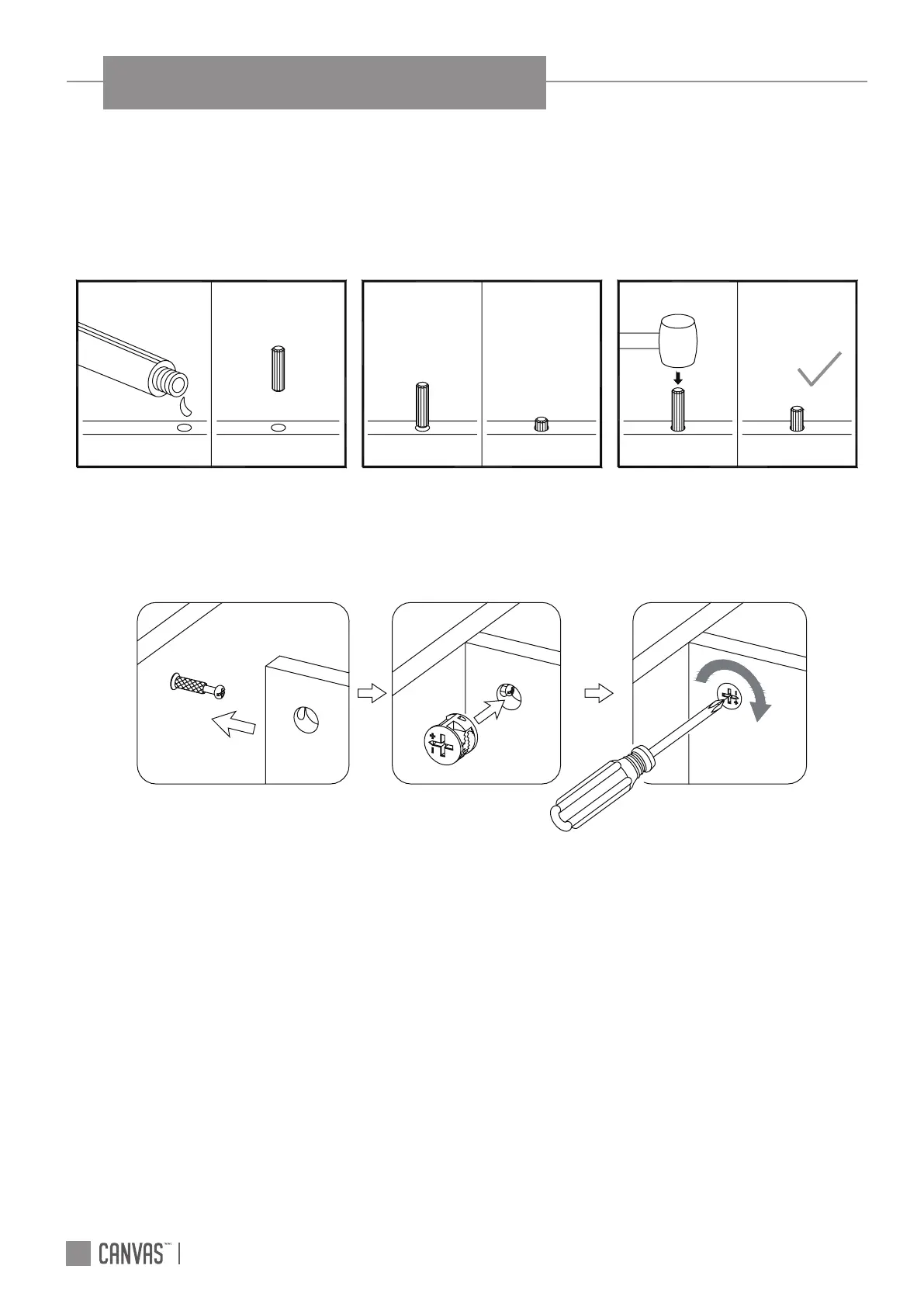

BEFORE YOU BEGIN ASSEMBLY
CAM LOCK SYSTEM OPERATION
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE
WIPEDOFFWITHDAMPCLOTH.
InsertdowelatleasthalfwaybytappinglightlywitharubbermalletIFNECESSARY.
GLUE
X
X
1 4
3
2
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1.Screwcamboltintothepre-drilledsmallholesonpanel.Alignthepanelstobejoined
so that the cam bolt goes into the pre-drilled hole on the edge of the second panel and
protrudesintotheholethatwillhousethecamlock.
2.Insertthecamlockintopre-drilledlargeholeonpanel.Makesurearrowonthecam
lockispointedtowardthecambolt.
3.Oncethecamboltisconnectedinsidecamlock,takeacross-headscrewdriverand
tightenthecamlockbyturningclockwise.
You are now ready to assemble the product.
