Capcom CPS2 - Desuiciding 93646 B-5, 93646 B-6, 93646 B-7, 97691 A-3

Desuicidingrevisions93646B5,93646B6,93646B7,97691A3

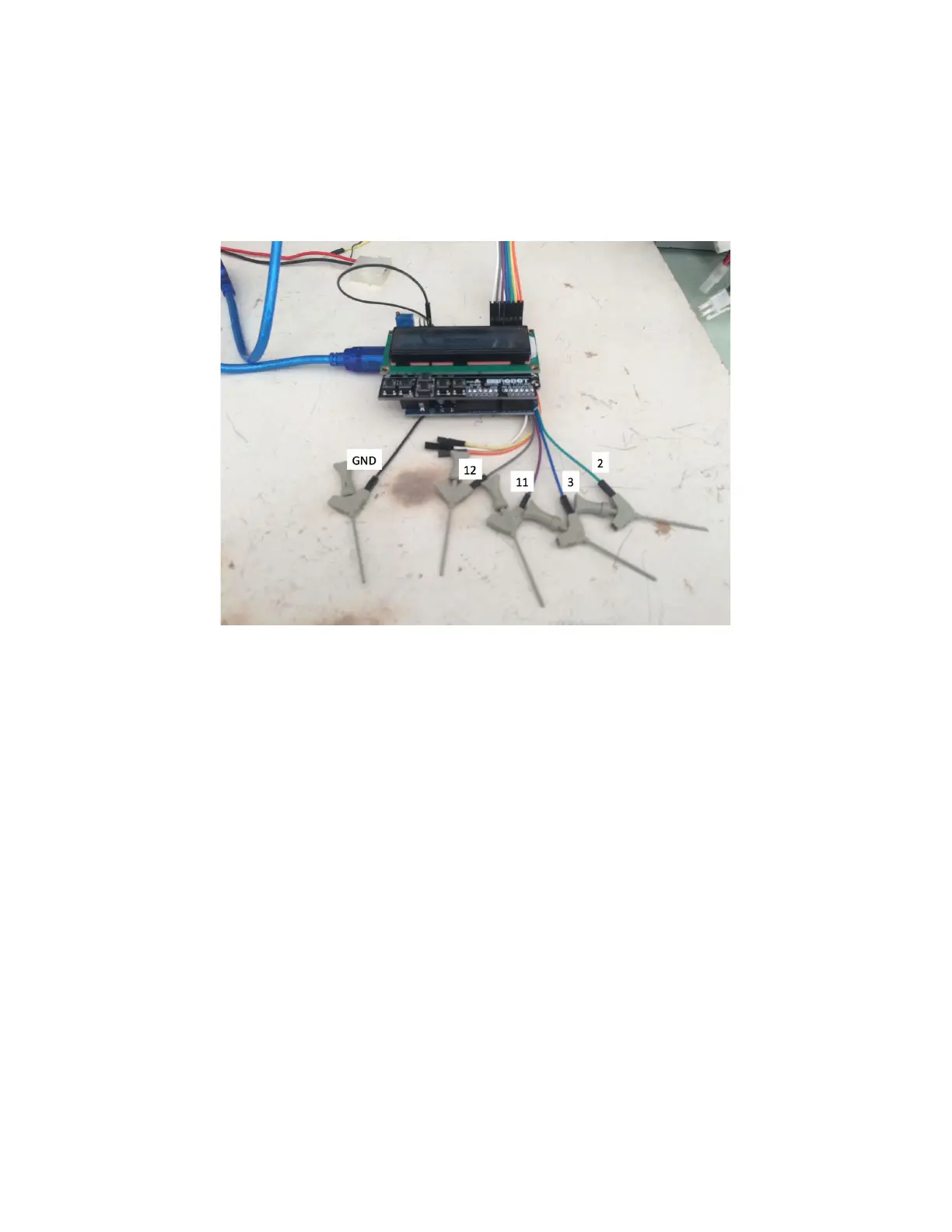

1. Connecttheicclipstothecorrespondingoutputsofthearduinoprogrammer(2,3,11,
12&GND)



2. ConnectallgrabberstoCN9followingthisorder.YoucanalsouseaJSTNH6pin
connector,pinsarepartnumberSHF001T0.8BSorSHF002T0.8BSdependingon
yourwiregauge.

DATA Arduino#2 →CN9#2
SETUP1 Arduino#3 →CN9#3
CLOCK Arduino#11 →CN9#4
SETUP2 Arduino#12 →CN9#5
GND ArduinoGND →CN9#6

