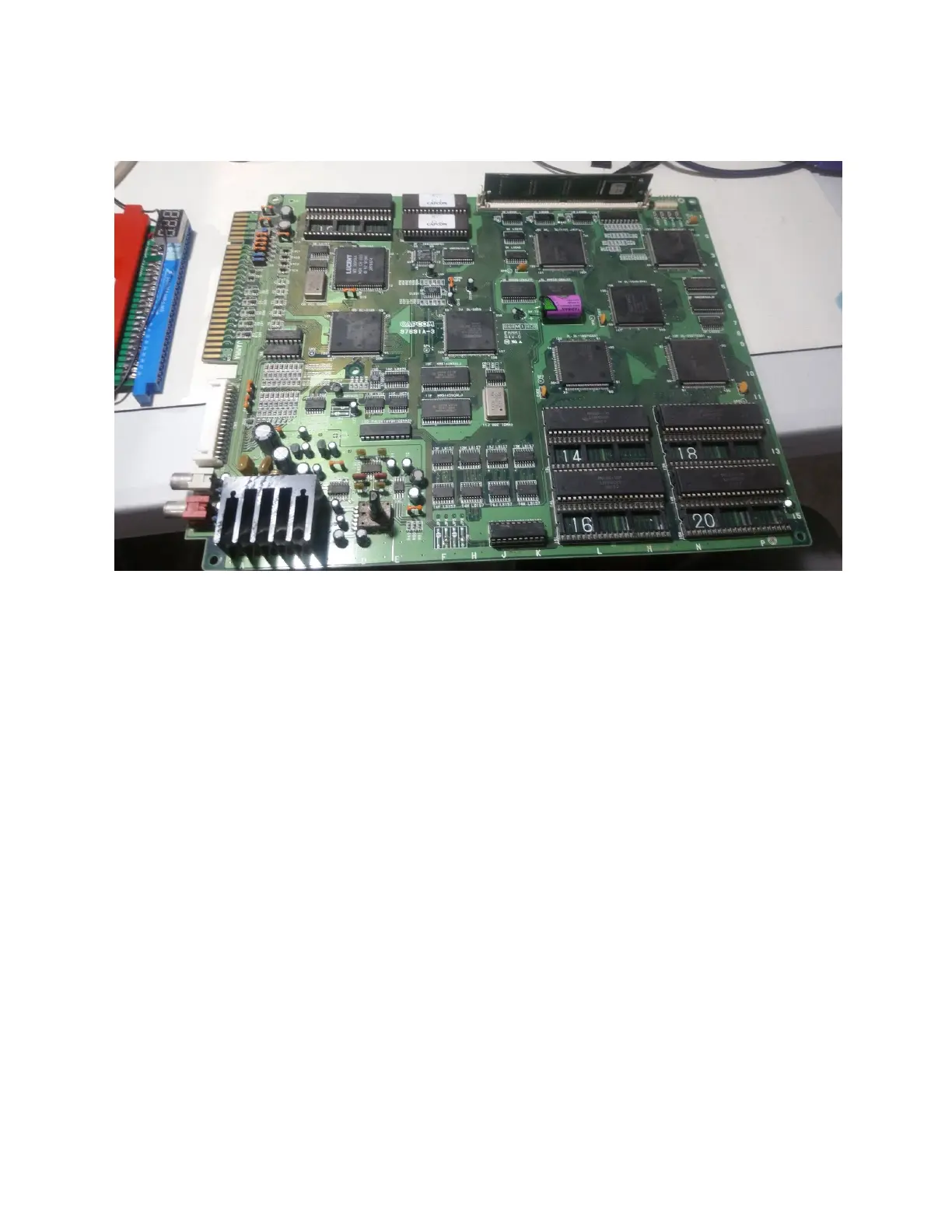

Capcom CPS2 - Pinout for 93646 B-3 and 93646 B-4; CN2 Interface Pins (93646 B-3;4); CN7 Power Pins (93646 B-3;4); Pinout for 93646 B-5


97691A3(Blackcase,singleboard):

Pinoutforboardrevisions93646B3and93646B4
CN2interfacepins: 

DATA Arduino#2 →CN2A32
SETUP1 Arduino#3 →CN2A30
CLOCK Arduino#11 →CN2A31
SETUP2 Arduino#12 →CN2A29

CN7powerpins:

+5V Powersupply →CN7A25
GND Powersupply&ArduinoGND→CN7A23
GND Powersupply&ArduinoGND→CN7B23


Pinoutforboardrevisions93646B5
CN9interfacepins: 

DATA Arduino#2 →CN9#2
SETUP1 Arduino#3 →CN9#3
