DDMEXT21 & DDMEXT25
DDMEXT21 DDMEXT25

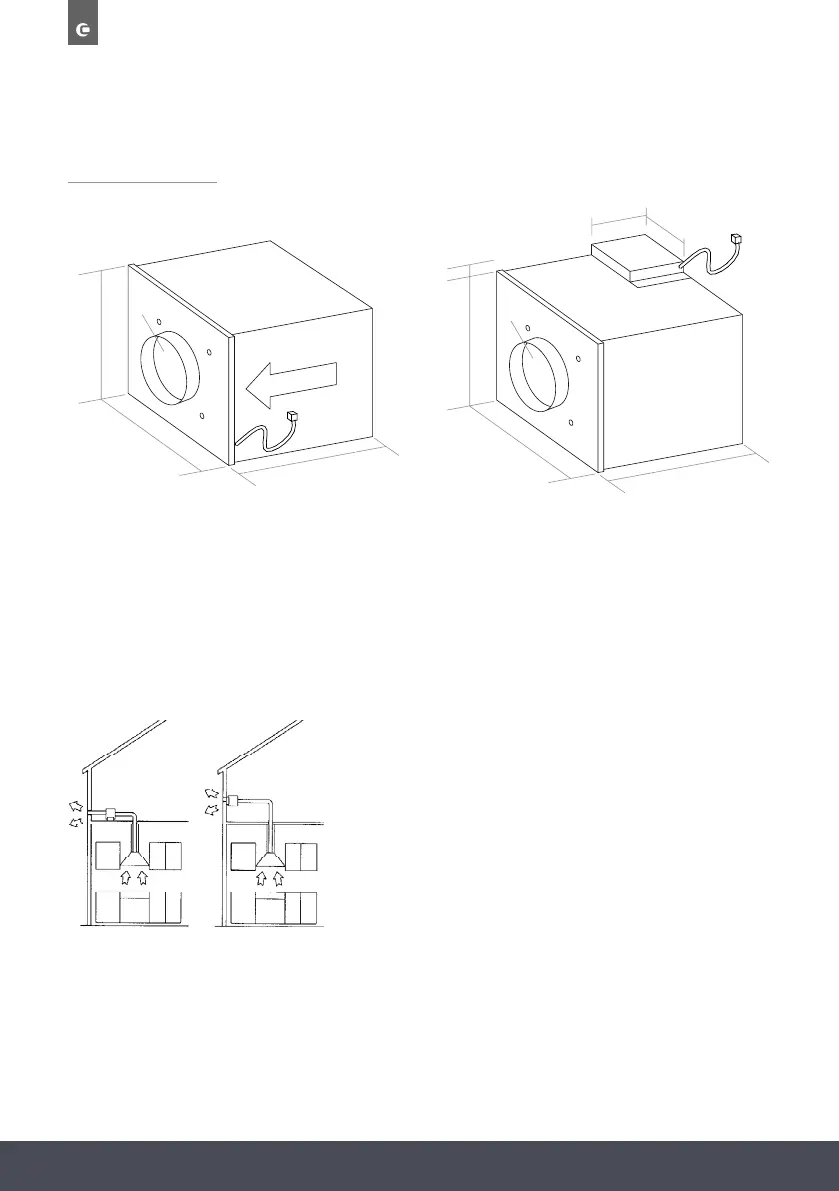

DIMENSIONS
255mm
302mm
302mm
∅150mm
DIMENSIONS
200mm
50mm
350mm
350mm
400mm
150mm
∅200mm
These products are designed to efficiently exhaust fumes and
odours. They must be installed inside the house and connected
to the cooker-hood, which is in the kitchen (Fig.1).
TYPES OF INSTALLATION:
To make the installation easy, the product can be fixed to the
wall, the ceiling or the floor in a horizontal position (Fig.2) or
vertically (Fig.3) to the fixing level.
NOTE:
For the vertical fixing, the brackets supplied can be used only on
the longest side (Fig.4).
DDMEXT21 & DDMEXT25
DDMEXT21 DDMEXT25
FIG.1
FIG.2
FIG.3
FIG.4
A
A
A
B
B
These products are designed to efficiently exhaust fumes and odours. They must be installed
inside the house and connected to the cooker-hood, which is in the kitchen (Fig.1).
