19Instruction manual Wi3150 & Wi3155Please keep this instruction manual for future reference
INSTALLING THE FULL HEIGHT PLINTH GRILLE

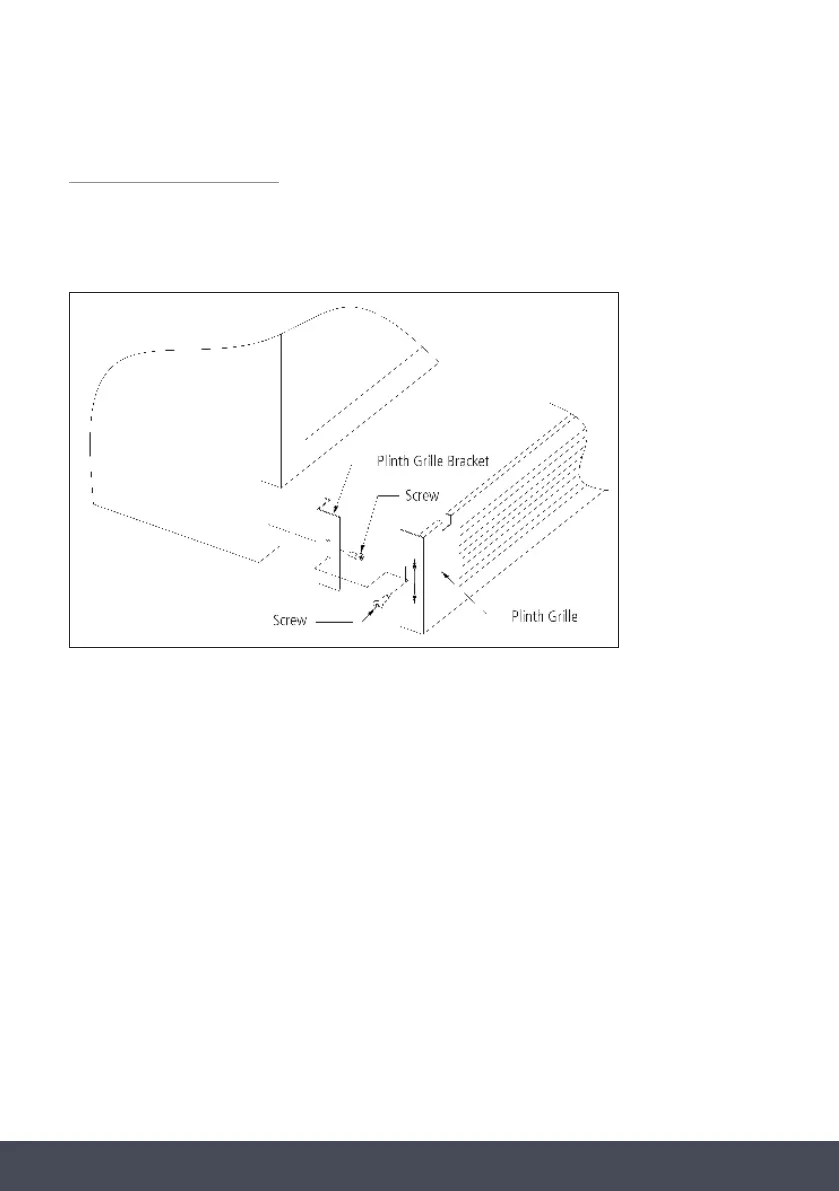

Take out the full height plinth grille and the brackets from the accessories box. Fix the brackets
to the cabinet with screws provided and x both sides of the grille to the brackets with the 2
supplied screws as shown in below diagram.
NOTE: To be installed with a 150mm plinth height.
If you wish to reduce your plinth height, the smaller, slot-on plinth grille (see installing a slot-on
Plinth Grille) should be used.
Full height plinth grille only included with WI3150.
