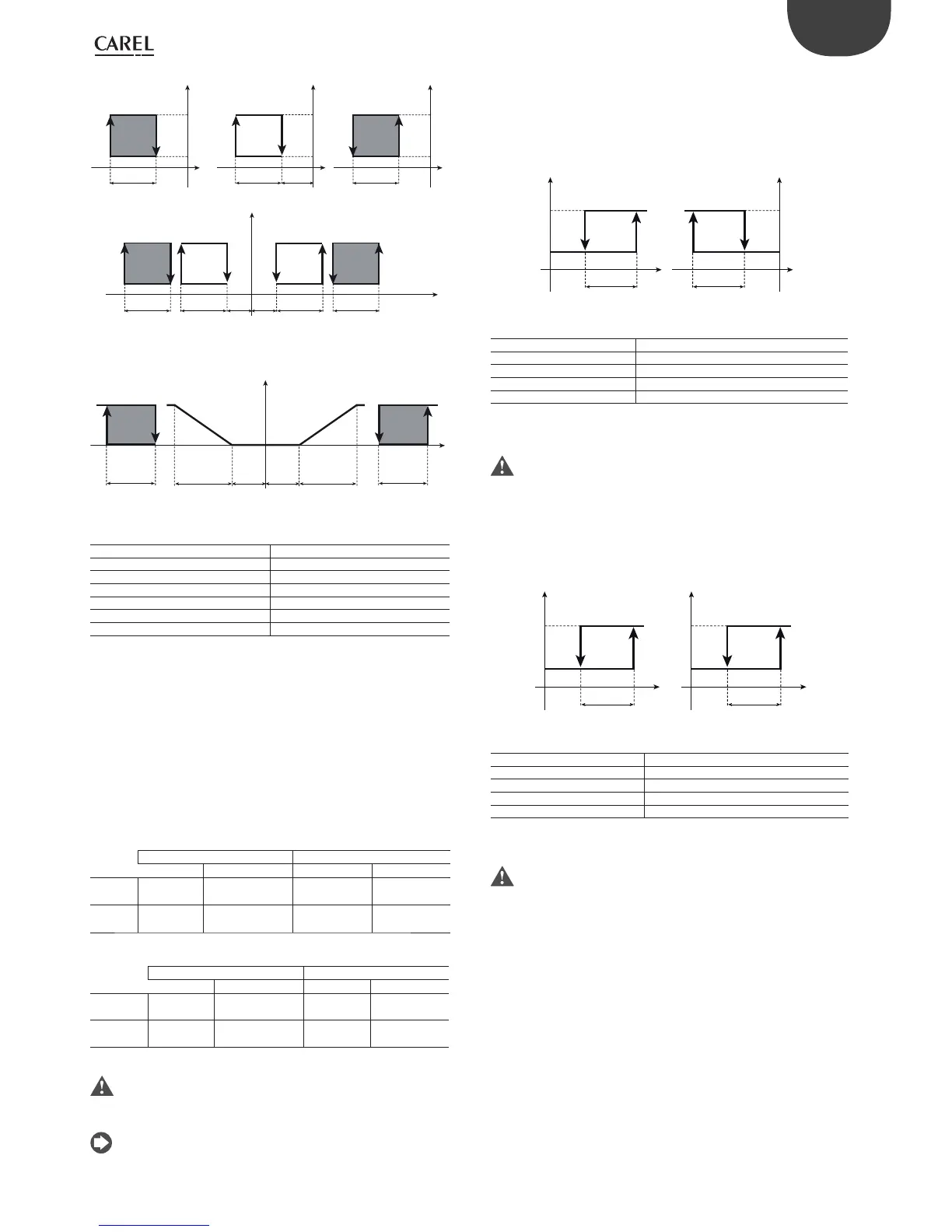

ON
OUT1 (HIGH/LOW ALARM)
Mod. V
Mod. Z
OFF
B1P27
P25/P26
ON
OFF
B1P27
P25/P26
P27
P25
St1
St1
P26
ON
OUT1
Mod. W
OUT2 (HIGH/LOW ALARM)
OUT3 (LOW ALARM) OUT4 (HIGH ALARM)
OFF
B1P1 P3
OUT1
B1P1 P3 P3
P27
OUT2
P2
Fig. 5.g
OUT4
Mod. E
0%
St1
B1
P1 P3
OUT2
P2P3
OUT3 (LOW ALARM)
P27
P25
OUT1(HIGH ALARM)
P27
P26
Fig. 5.h
Key
St1 Set point 1
P1 “Reverse” di erential
P2 “Direct” di erential
P3 Dead zone di erential
P27 Alarm di erential
OUT1/2/3/4 Output 1/2/3/4
B1 Probe 1
Parameter P28 represents the “alarm activation delay”, in minutes;
with reference to probe 1 the low temperature alarm (E05) is activated
only if the temperature remains lower than the value of P25 for a time
greater than P28. The alarm may be relative or absolute, depending on
the value of parameter P29. In the former case (P29=0), the value of P25
indicates the deviation from the set point and thus the activation point
for the low temperature alarm is: set point - P25. If the set point changes,
the activation point also changes automatically. In the latter case (P29=1),
the value of P25 indicates the low temperature alarm threshold. The low
temperature alarm active is signalled by the buzzer and code E05 on the
display. The same applies to the high temperature alarm (E04), with P26
instead of P25. Likewise parameters P30 to P34 refer to probe 2.
Alarm set point relative to working set point P29=0
Low alarm High alarm
Enable Disable Enable Disable
Probe
1(P29=0)
St1-P25 St1-P25 +P27 St1 +P26 St1+P26 -P27
Probe
2(P34=0)
St2 -P30 St2 -P30 +P32 St2 +P31 St2 +P31 -P32
Tab. 5.f
Absolute alarm set point P29=1
Low alarm High alarm
Enable Disable Enable Disable
Probe
1(P29=1)
P25 P25+P27 P26 P26-P27
Probe
2(P34=1)
P30 P30+P32 P31 P31-P32
Tab. 5.g
The low and high temperature alarms are automatically reset; if there
is an alarm active on the control probe, these alarms are deactivated
and monitoring is reinitialised.
When alarms E04/E15 and E05/E16 are active, the buzzer can be
muted by pressing Prg/mute. The display remains active.
5.3.6 Mode 6: Direct/reverse with changeover from
DI1 c0=6
The controller operates in “direct” mode based on St1 when digital input
1 is open, in “reverse” based on St2 when it is closed.
INPUT DI1 OPEN INPUT DI1 CLOSED
ON
OUT1
Mod. V
OFF
St1
B1
P1
ON
OUT1
Mod. V
OFF
St2
B1
P2
Fig. 5.i
Key
St1/St2 Set point 1/2
P1 “Direct” di erential
P2 “Reverse” di erential
OUT1 Output 1
B1 Probe 1
For models W & Z the activations of the outputs are equally distributed
inside the di erential set (P1/P2).
Parameter c29 is not active in mode 6.
5.3.7 Mode 7: Direct with set point & di erential,
changeover from DI1 c0=7
The controller always operates in “reverse” mode, based on St1 when
digital input 1 is open and based on St2 when it is closed.
INPUT DI1 OPEN INPUT DI1 CLOSED
ON
OUT1
Mod. V
OFF
St1
B1
P1
ON
OUT1
Mod. V
OFF
St2
B1
P2
Fig. 5.j
Key
St1/St2 Set point 1/2
P1 “Direct” di erential St1
P2 “Direct” di erential St2
OUT1 Output 1
B1 Probe 1
For models W & Z the activations of the outputs are equally distributed
across the di erential (P1/P2).
Parameter c29 is not active in mode 7.
