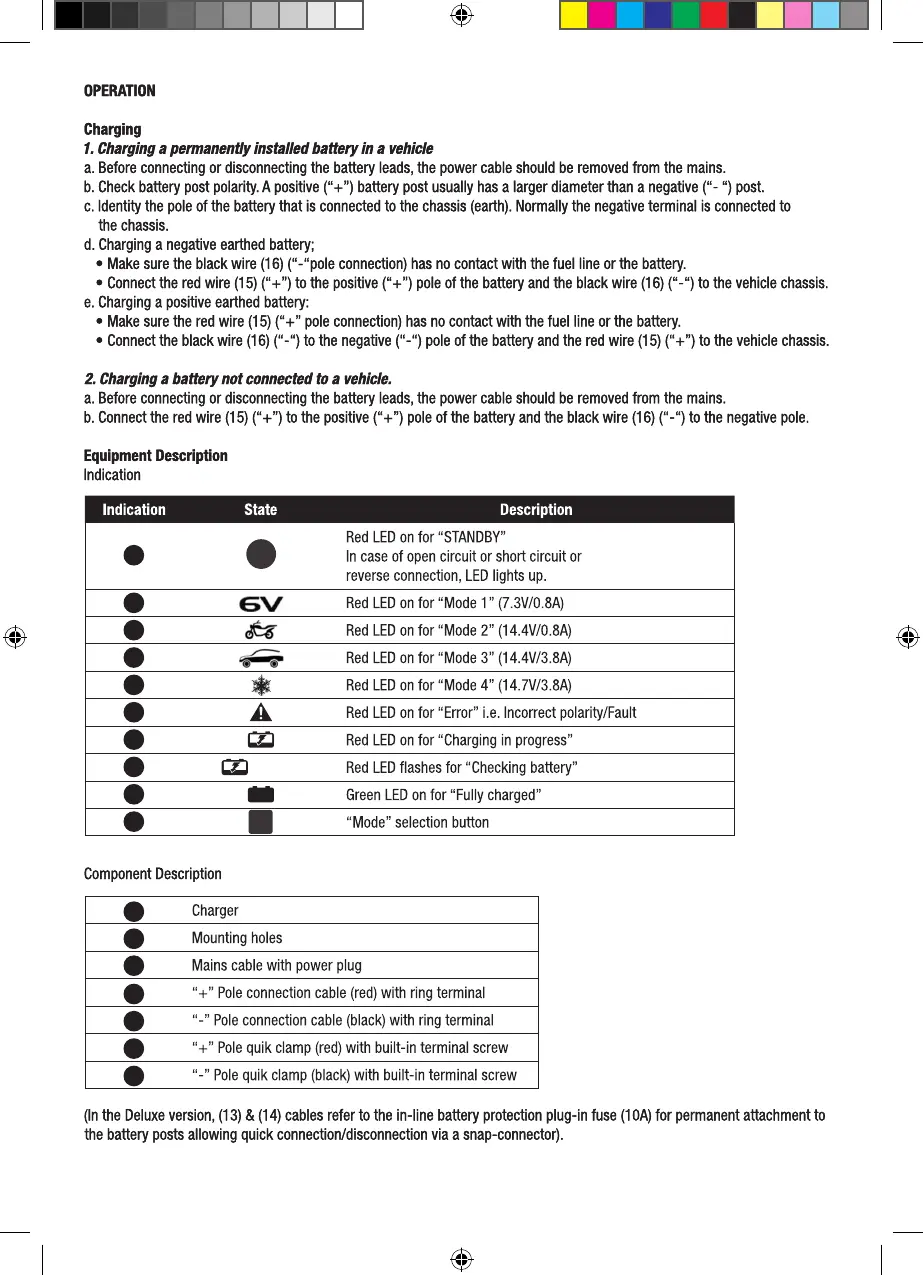

Indication State Description
Red LED on for “STANDBY”
In case of open circuit or short circuit or
reverse connection, LED lights up.
Red LED on for “Mode 1” (7.3V/0.8A)
Red LED on for “Mode 2” (14.4V/0.8A)
Red LED on for “Mode 3” (14.4V/3.8A)
Red LED on for “Mode 4” (14.7V/3.8A)
Red LED on for “Error” i.e. Incorrect polarity/Fault
Red LED on for “Charging in progress”
Red LED ashes for “Checking battery”
Green LED on for “Fully charged”
“Mode” selection button
Charger
Mounting holes
Mains cable with power plug
“+” Pole connection cable (red) with ring terminal
“-” Pole connection cable (black) with ring terminal
“+” Pole quik clamp (red) with built-in terminal screw
“-” Pole quik clamp (black) with built-in terminal screw
