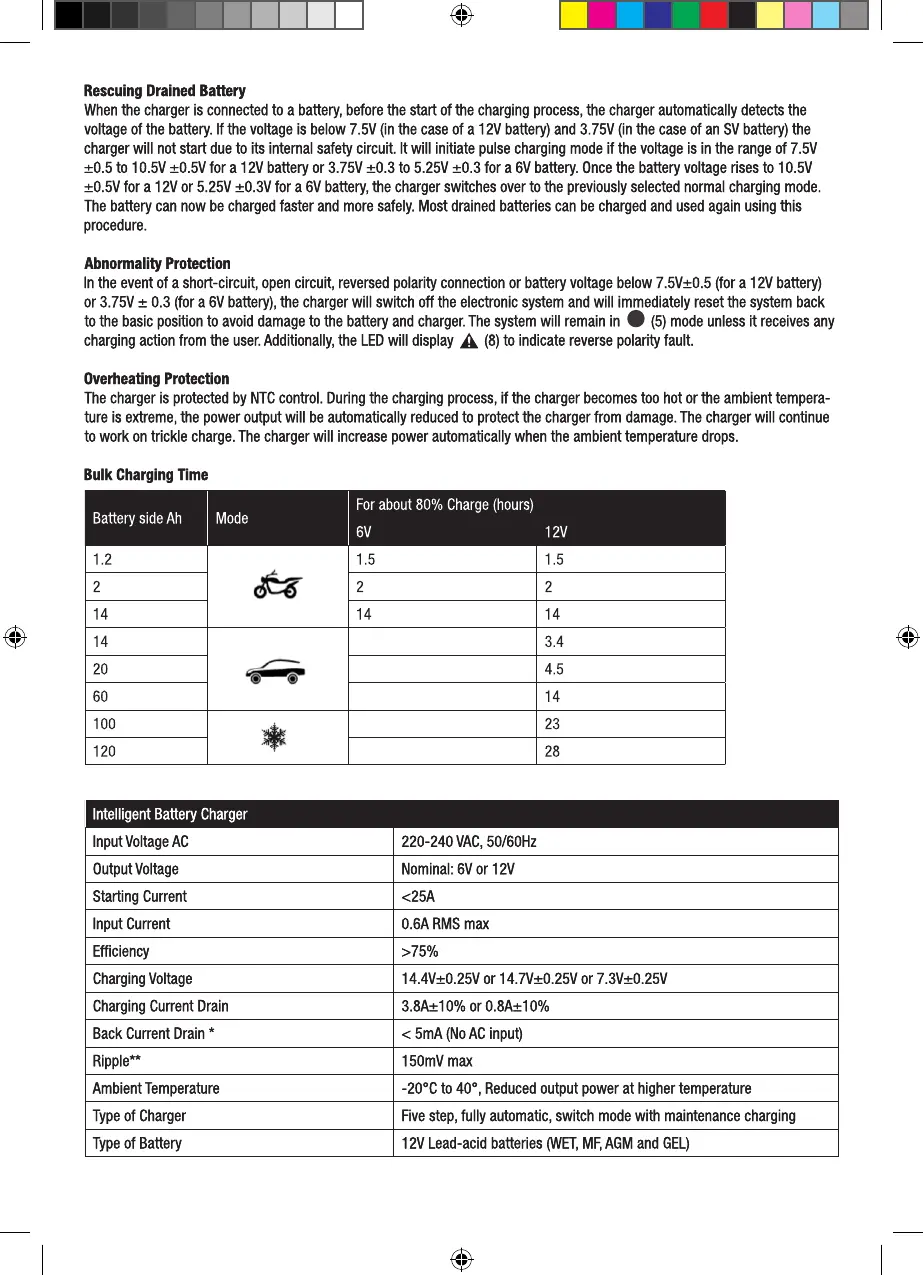

Battery side Ah Mode
For about 80% Charge (hours)
6V 12V
1.2 1.5 1.5
2 2 2
14 14 14
14 3.4
20 4.5
60 14
100 23
120 28
Intelligent Battery Charger
Input Voltage AC 220-240 VAC, 50/60Hz
Output Voltage Nominal: 6V or 12V
Starting Current <25A
Input Current 0.6A RMS max
Efciency >75%
Charging Voltage 14.4V±0.25V or 14.7V±0.25V or 7.3V±0.25V
Charging Current Drain 3.8A±10% or 0.8A±10%
Back Current Drain * < 5mA (No AC input)
Ripple** 150mV max
Ambient Temperature -20°C to 40°, Reduced output power at higher temperature
Type of Charger Five step, fully automatic, switch mode with maintenance charging
Type of Battery 12V Lead-acid batteries (WET, MF, AGM and GEL)
