8-3.Installation
8-3-1. Optional installation parts

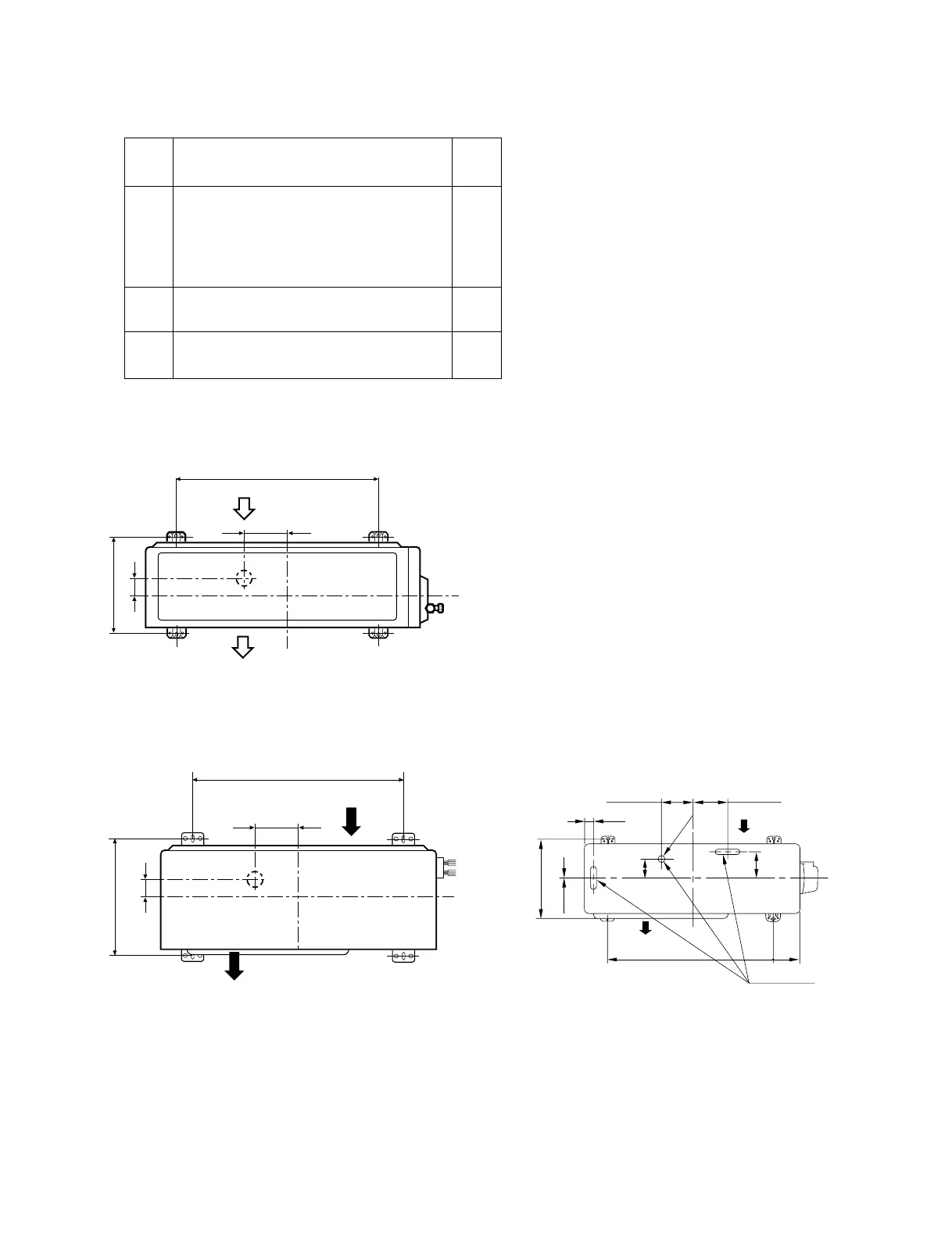

<Fixing bolt arrangement of outdoor unit>
38HNR018-713
Fig. 8-3-1
38CJR024-723, 38TAR024X-723, 38TAR018-723, 38HNR024-713
Fig. 8-3-2
• Secure the outdoor unit with the fixing bolts and nuts if the unit is likely to be exposed to a strong wind.
• Use ∅8 mm or ∅10 mm anchor bolts and nuts.
Air inlet
Air outlet
Part
Code
A
B
C
Q'ty
One
each
1
One
each
Parts name
Refrigerant piping
Liquid side : ∅6.35 mm
Gas side : ∅12.70 mm (42CJR018)
Gas side : ∅15.88 mm (42CJR024,
42TA024, 42TA018)
Pipe insulating material
(polyethylene foam, 6 mm thick)
Putty, PVC tapes
600 mm
340 mm
64 mm
120 mm
600 mm
120 mm
325 mm
52 mm
Air inlet
Air outlet
FILE NO. SVM-05010
Air inlet
Air outlet
Drain outlet
600 mm
90 mm
125 mm115 mm
32.5 mm
73 mm
102 mm
310 mm
7 mm
30
Fig. 8-3-3
38CJR018-723
