SG-40MAHB-01: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
8

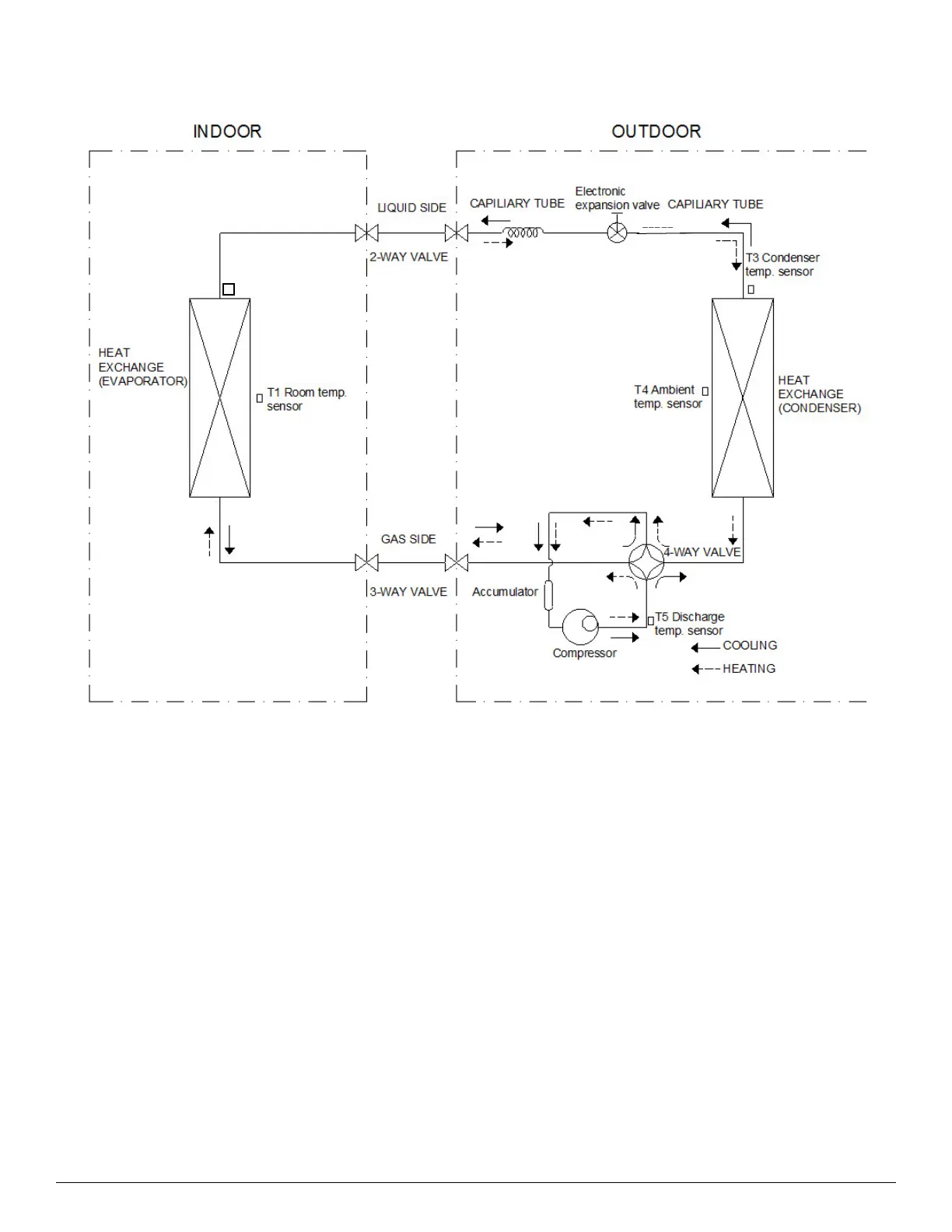

REFRIGERATION CYCLE DIAGRAM
Fig. 7 — Refrigeration Cycle Diagram
REFRIGERANT LINES
IMPORTANT: Both refrigerant lines must be insulated separately.
Table 2 on page 3 lists the pipe sizes for the indoor unit. Refer to the outdoor unit’s installation instructions for other allowed piping lengths and
refrigerant information.
T2 Evaporator
temp. sensor
