Carrier 40MBQB09D-3 Service Manual

74
DISASSEMBLY INSTRUCTIONS
skrameRserudecorPeman traP.oN
1 Panel plate
How to remove the panel plate.
1) Stop operation of
the air conditioner and turn
“OFF” the power breaker.
2) Remove the screws of top
cover, and remove the top
cover. (9 screws)
3) Remove the screws of right
front side panel, and remove
the right front side panel (2
screws)
4) Remove the screws of front
panel, and remove the front
panel. (9 screws)

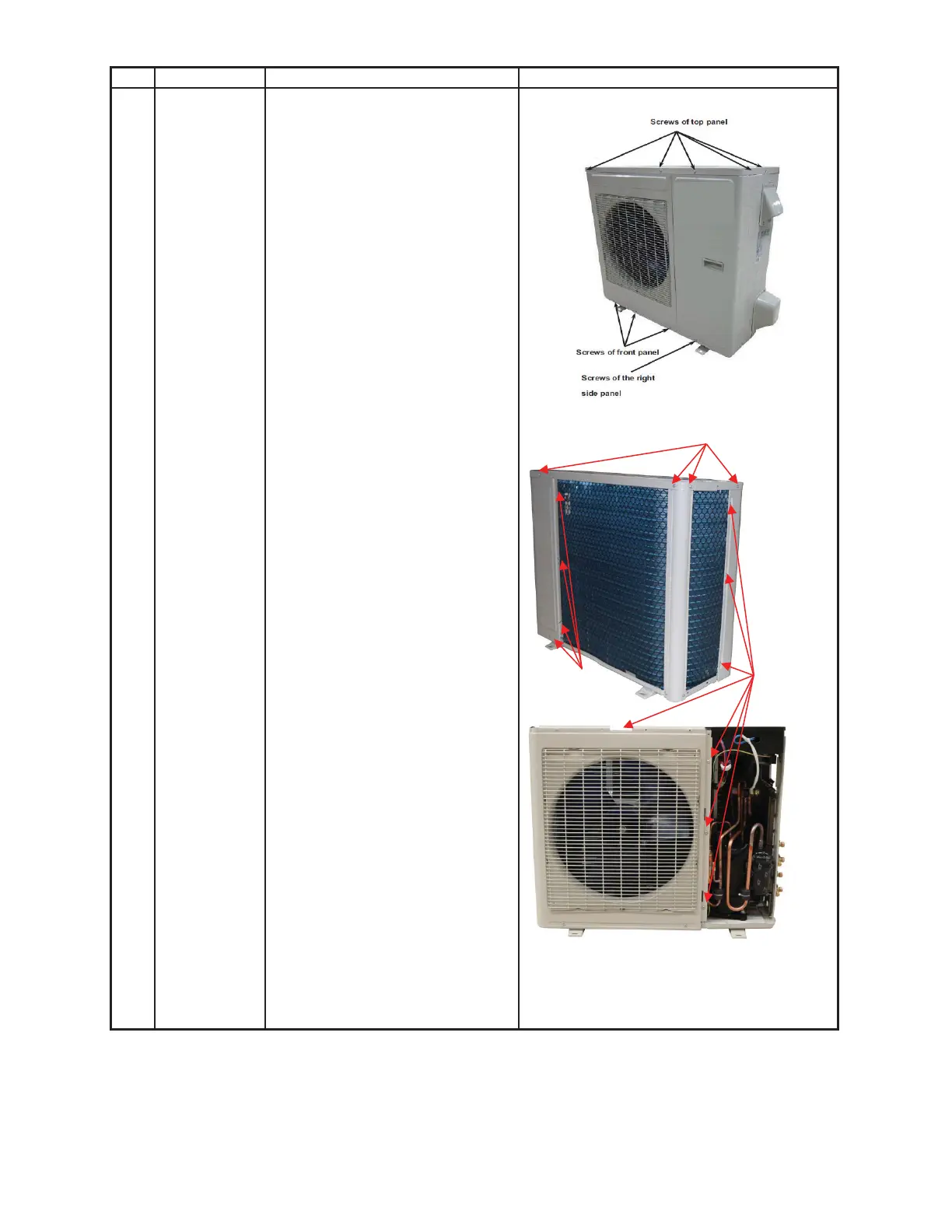

Screws of top cover
Screws of
front panel
Screws of right-
rear panel
