5) Remove the screws of big
handle, and remove the big
handle.(4 screws)
6) Remove two screws of
terminal board, four screws
of water collector and
fourteen screws of right-
rear panel, and remove the
right-rear panel.
2 Fan ass’y
How to remove the fan ass’y.
1) Remove the top cover, right
front side panel and front
panel from item 1.step 1~4
2) Remove the hex nut fixing
the fan.
3) Remove the fan.
ĸ
ĸ



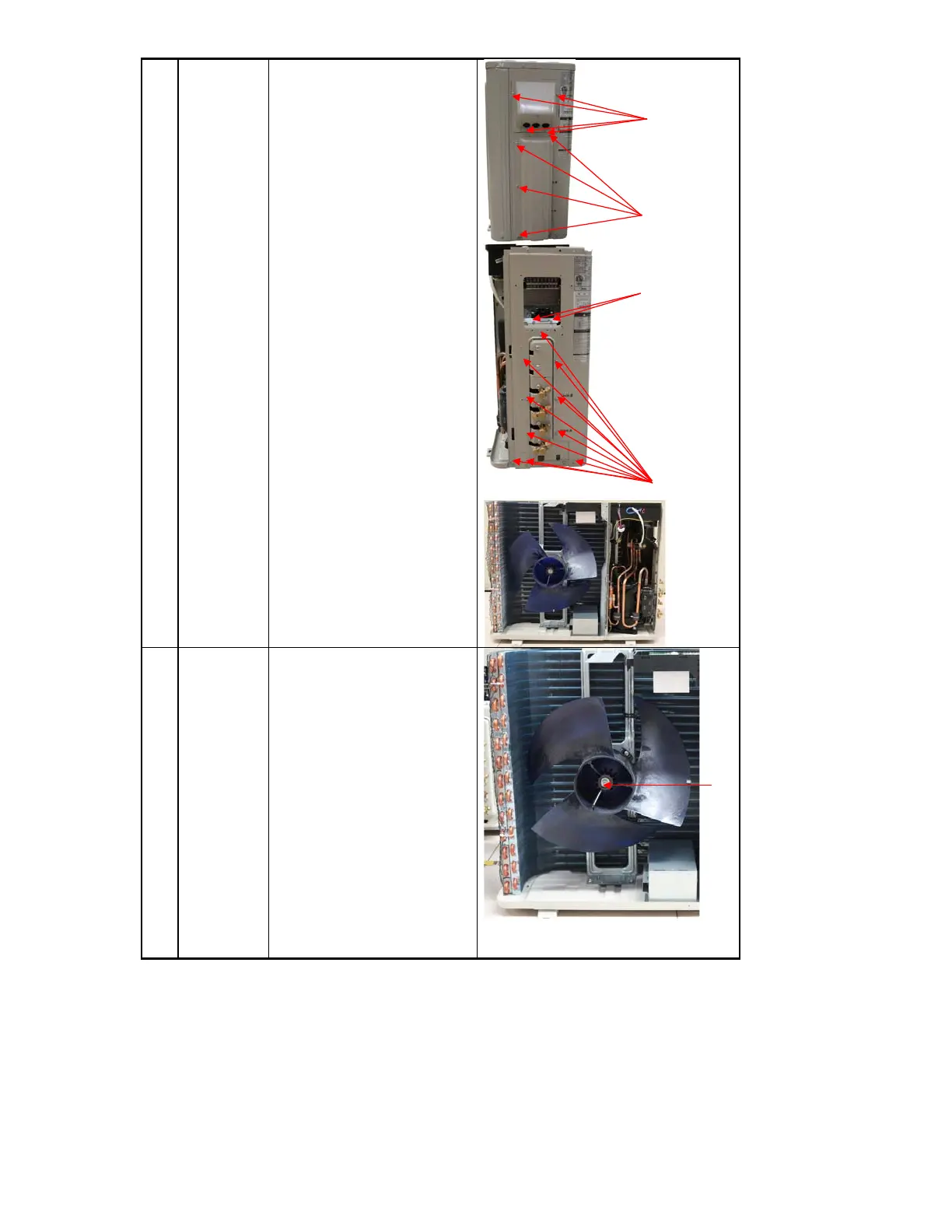

Screws of
big handle
Screws of
terminal board
Screws of
water collector
Screws of right-
rear panel
