REFRIGERANT CYCLE
5

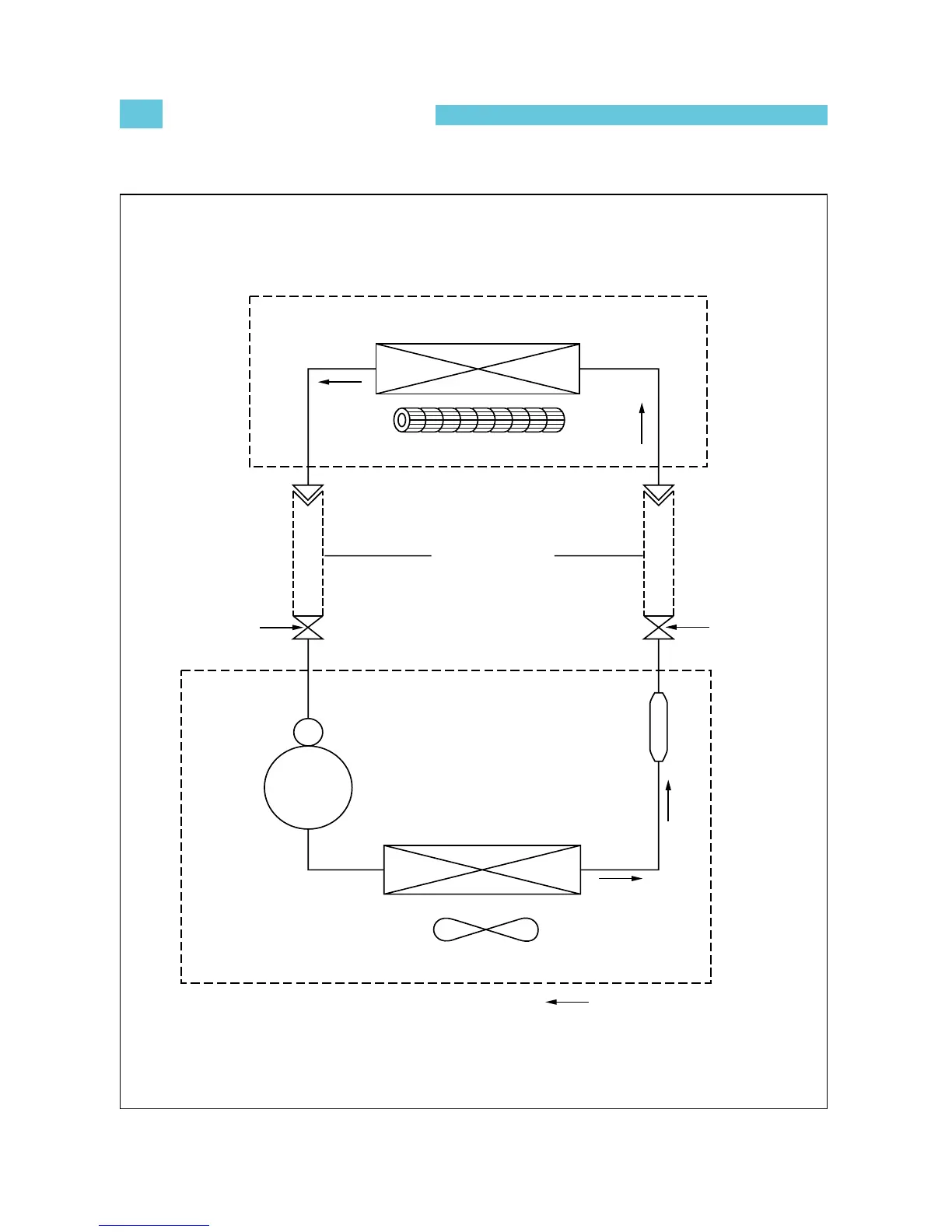

1) 42HWG007/009/012/018/024 & HWG195C/225C/305C/455C/605C
INDOOR UNIT
Evaporator
Cross flow fan
Service
valve
Expansion
device
Condenser
Propeller fan
OUTDOOR UNIT
Compressor
Accumulator
Service valve
Refrigerant flow
Connecting pipe
