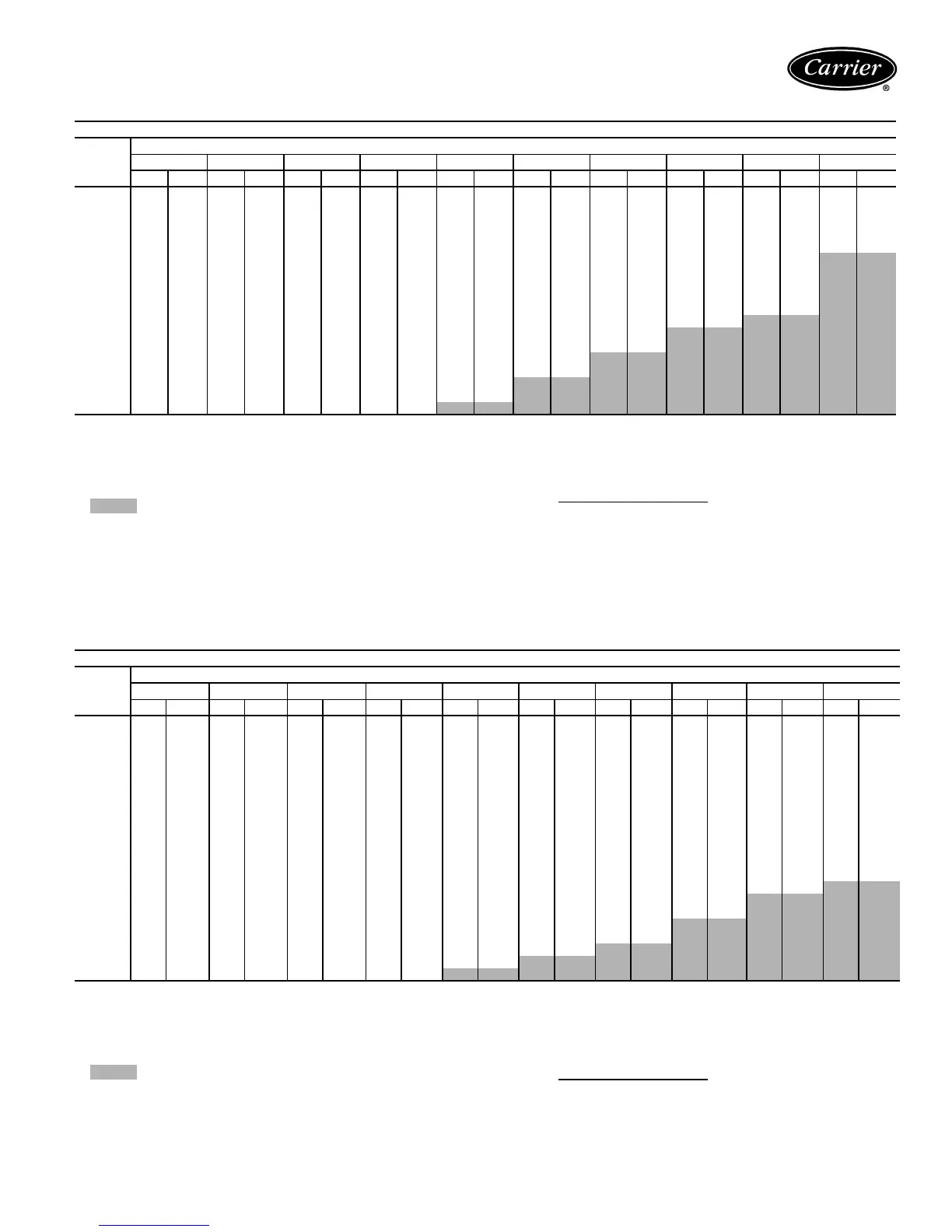

FAN PERFORMANCE (ENGLISH) — VERTICAL DISCHARGE UNITS (cont)
LEGEND
NOTES:
1. Boldface indicates field-supplied drive required (see Note 3).
2. indicates field-supplied motor and drive required.
3. Factory-shipped drive range is 690 to 900 rpm. Other rpms may require a
field-supplied drive.
4. Values include losses for filters, unit casing, and wet coils.
5. Extensive motor and electrical testing on these units ensures that the full
range of the motor can be utilized with confidence. Using your fan motors
up to the wattage ratings shown will not result in nuisance tripping or
premature motor failure. Unit warranty will not be affected. See
Evaporator-Fan Motor Performance table on page 30 for additional
information.
6. Use of a field-supplied motor may affect wire sizing. Contact your Carrier
representative to verify.
7. To convert Watts to Bhp:
Motor Efficiency: .83 Maximum Continuous Watts: 2120
8. Interpolation is permissible. Do not extrapolate.
9. Static pressure losses (i.e., economizer, electric heater) must be added to
external static pressure before entering Fan Performance table.
LEGEND
NOTES:
1. Boldface indicates field-supplied drive required (see Note 3).
2. indicates field-supplied motor and drive required.
3. Factory-shipped drive range is 710 to 890 rpm. Other rpms may require a
field-supplied drive.
4. Values include losses for filters, unit casing, and wet coils.
5. Extensive motor and electrical testing on these units ensures that the full
range of the motor can be utilized with confidence. Using your fan motors
up to the wattage ratings shown will not result in nuisance tripping or
premature motor failure. Unit warranty will not be affected. See
Evaporator-Fan Motor Performance table on page 30 for additional
information.
6. Use of a field-supplied motor may affect wire sizing. Contact your Carrier
representative to verify.
7. To convert Watts to Bhp:
Motor Efficiency: .85 Maximum Continuous Watts: 3313
8. Interpolation is permissible. Do not extrapolate.
9. Static pressure losses (i.e., economizer, electric heater) must be added to
external static pressure before entering Fan Performance table.
50TFF012 (8.3 TONS) — STANDARD MOTOR (BELT DRIVE)
Airflow
(Cfm)
External Static Pressure (in. wg)
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.82.0
Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts
2500 471 369 552 494 617 611 679 719 740 818 757 881 765 944 811 1034 889 1321 946 1645
2600 483 404 562 530 627 656685773 754 881 765 944 775 1025 825 1097 907 1429 959 1771
2700 495449 573 575 638 710 694 827 757 944 775 1007 793 1088 848 1240 929 1528 975 1878
2800 508 485583 620 648 755 704 881 759 1007 791 1070 808 1186 887 1357 954 1690 9871959
2900 521530594 665 659809 714 944 766 1070 807 1150 823 1339 918 1519 963 1834 999 2040
3000 532 630 605 763 670 891 725 1014 778 1148 825 1275 874 1422 926 1613974 1920
1012 2134
3100 544 677 616803680 940 735 1081 787 1216 835 1353 880 1491 933 1656 983 1963
1017 2177
3200 557 716628 859 690 998 746 1148 796 1284 844 1430 888 1569 934 1718 988 1980
1025 2230
3300 570 763 639 907 700 1064 757 1216 805 1353 854 1508 897 1648 940 1853 989 2031
1032 2282
3400 583 818651 965 711 1123 767 1284 815 1430 863 1587 907 1744 947 1946991 2099
1038 2318
3500 596 867 663 1031 721 1190 777 1353 826 1517 871 1665 916 1831 9562039
997 2195 1043 2380
3600 609924 674 1097 732 1267 787 1430 836 1595 880 1753 926 1927
966 2134 1004 2291 1045 2478
3700 622 989 686 1165 744 1335 797 1508 847 1691 890 1849 934 2015
976 2238 1013 2397 1051 2569
3800 635 1047 698 1241 755 1413 808 1595 857 1779 901 1945
943 2160 985 2344 1023 2514 1059 2688
3900 649 1123 713 1318 767 1491 818 1683 867 1866 9122050
952 2265 994 2451 1032 2633 1068 2819
4000 662 1190 722 1396 778 1578 829 1779 878 1962
922 2203 962 2371 1003 2560 1042 2763 1078 2952
4100 675 1267 734 1482 790 1674 839 1875 888 2058
933 2309 973 2496 1011 2679 1051 2895 1087 3097
4200 689 1353 746 1569 801 1761 851 1971
898 2212 943 2424 983 2624 1021 2810 1060 3029 1090 3276
Bhp — Brake Horsepower
Watts — Input Watts to Motor
Bhp =
Watts x Motor Efficiency
746
50TFF014 (10.2 TONS) — STANDARD MOTOR (BELT DRIVE)
Airflow
(Cfm)
External Static Pressure (in. wg)
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.82.0
Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts Rpm Watts
3100 570 623 636 799 693 886 748 1044 800 1202 850 1281 901 1360 950 1474 989 1597 1000 1755
3200 584 676649842 705 948 759 1097 809 1281 858 1352 907 1457 960 1571 1001 1703 1006 1834
3300 598 728 662 904 717 1027 769 1158 819 1342 867 1483 914 1536 963 1668 1010 1799 1018 1940
3400 612 781 675 957 729 1115 780 1229 829 1414 876 1589 922 1606 968 1764 1018 1940 1022 2045
3500 626 8736881018 741 1202 792 1299 840 1483 886 1676 930 1773975 1826 1021 2062 1039 2203
3600 640 913 702 1080 754 1290 803 1378 851 1553 896 1755 940 1913 983 18871026 2212 1051 2370
3700 654 1065 714 1218 767 1373 815 1514 861 1666 906 1862 950 2027 991 2202 1030 23611064 2512
3800 668 1129 727 1291 780 1456 827 1598 873 1751 916 19489592123 1001 2299 1040 2476 1075 2638
3900 683 1194 741 1365 793 1540 839 1691 884 1836 927 2035 969 2228 1010 2405 10492593 1085 2773
4000 6971267 754 1448 806 1624 851 1785 8951931 938 2123 979 23341020 2521 10592710 1095 2901
4100 711 1340 767 1531 819 1708 864 1879 907 2035 9492219 989 2441 1029 2638 1068 2837 1105 3028
4200 726 1423 780 1624 832 1802 877 1983 9192149960 2316 1000 2548 1039 2764 1077 2955 1114 3166
4300 741 1506 794 1717 845 1897 889 2096 931 2263 971 2423 1011 2647 1049 2882 1087 3092 1124 3304
4400 755 1598 808 1819 858 2000 9022210 943 2387 983 2548 1022 2764 10593010 1097 3230
1133 3442
4500 770 1700 821 1923 871 2114 915 2325 955 2512995 2683 1033 2882 1070 3138
1107 3368 1143 3590
4600 784 1794 835 2027 884 2219 928 2450 968 2638 1006 2828 1044 3010 1081 3258
1117 3516 1152 3748
4700 799 1905 849 2140 897 2343941 2566 981 2773 1018 2964 10563147
1092 3387 1127 3655 1162 3897
4800 814 2009 863 2254 910 2468 954 2692 993 2919 1030 3111 1067 3304
1103 3525 1138 3804 1172 4055
4900 829 2131 877 2378 923 2602967 2828 10063065 1043 3267
1079 3470 1114 3674 1149 3934 1182 4223
5000 843 2246 892 2503937 2746980 2964 1019 3221
1055 3424 1091 3637 1126 3822 1160 4083 1193 4382
5100 858 2378 906 2629 950 2891 993 3111
1032 3388 1068 3590 1103 3804 1137 4009 1171 4242 1204 4531
Bhp — Brake Horsepower
Watts — Input Watts to Motor
Bhp =
Watts x Motor Efficiency
746
