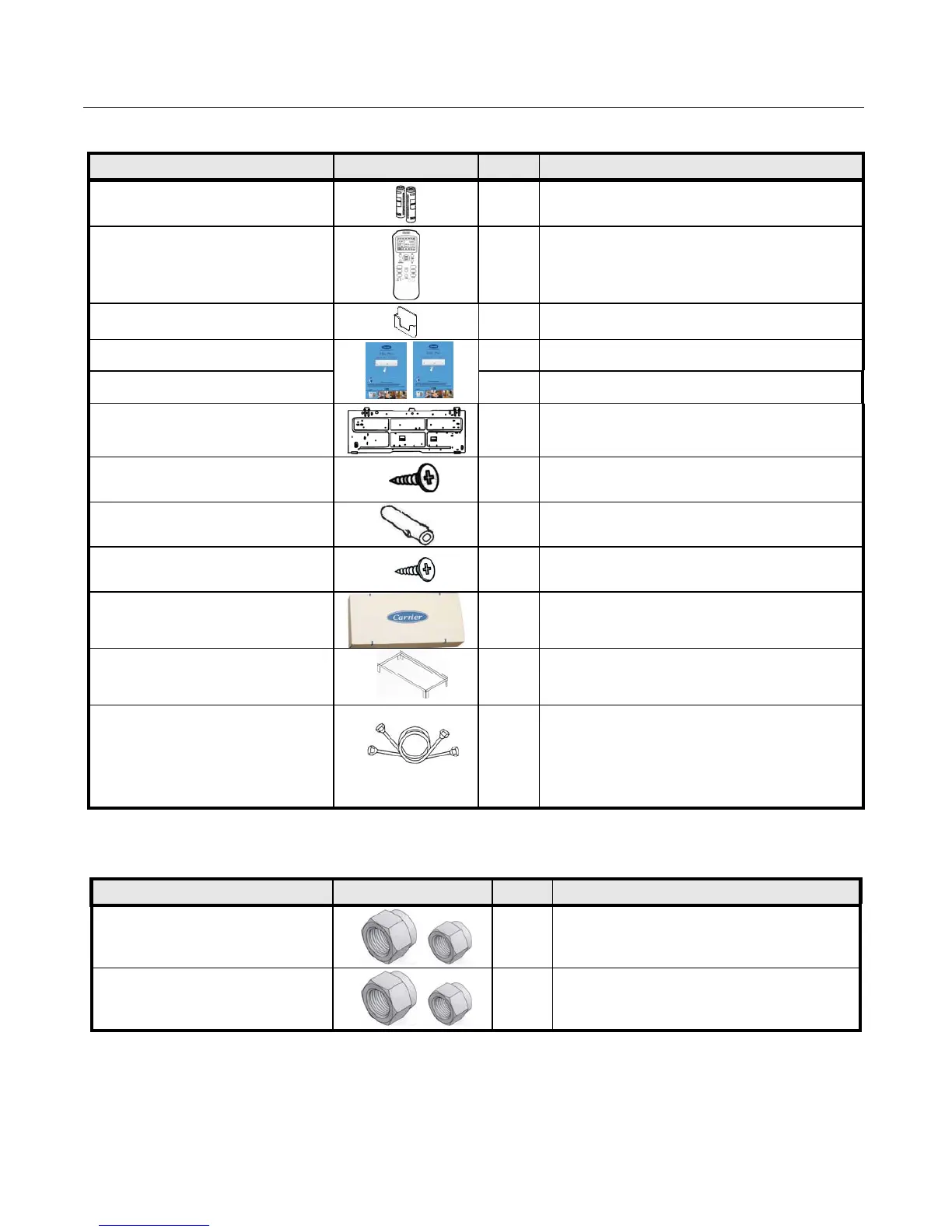

11. INSTALLATION ACCESSORIES
11.1 STANDARD INSTALLATION ACCESSORIES SUPPLIED FROM THE FACTORY
DESCREPTION SHAPE QTY USE
Battery 1.5 volt size AAA
alkaline type
2 To operate the wireless remote control
Wireless remote control
1 To operate the air conditioner
Plastic holder for remote control
1 To mount remote control on the wall
Owner manual
1 To illustrate control functions of operation
Installation Manual 1 To illustrate installation instructions.
Wall hang bracket
1 To mount the indoor unit on the wall
Self tapping screw A ST 3.9 x 25
8 For wall hang bracket installation
Clip Anchor
8 For wall installation of wall hang bracket
Self tapping screw BST 2.9 x 10
2
For wall installation pf plastic holder
of remote control
Wall support for outdoor unit
( Only for domestic market )
1 To mount outdoor unit on the wall
Floor support for outdoor unit
( Only for domestic market )
1
To mount outdoor unit on the ground
or floor
Insulated refrigerant piping lines
with flare nuts of
length 3 meter for size 30K
and length 4 meter for size 36K
( Only for domestic market )
1
To connect refrigerant between outdoor unit,
indoor unit and refrigerant piping lines
11.2 STANDARD INSTALLATION ACCESSORIES SUPPLIED FROM THE FACTORY
( Only for Export markets )
DESCREPTION SHAPE QTY USE
Flare nuts ( 5/8” & 3/8" )
supplied with outdoor units
38KHET30 and 38QHET30
1 + 1
To be mounted on the refrigerant piping
lines before being connected to the
outdoor unit.
Flare nuts ( 3/4” & 3/8" )
supplied with outdoor units
38KHET36 and 38QHET36
1 + 1
To be mounted on the refrigerant piping
lines before being connected to the
outdoor unit.
