72

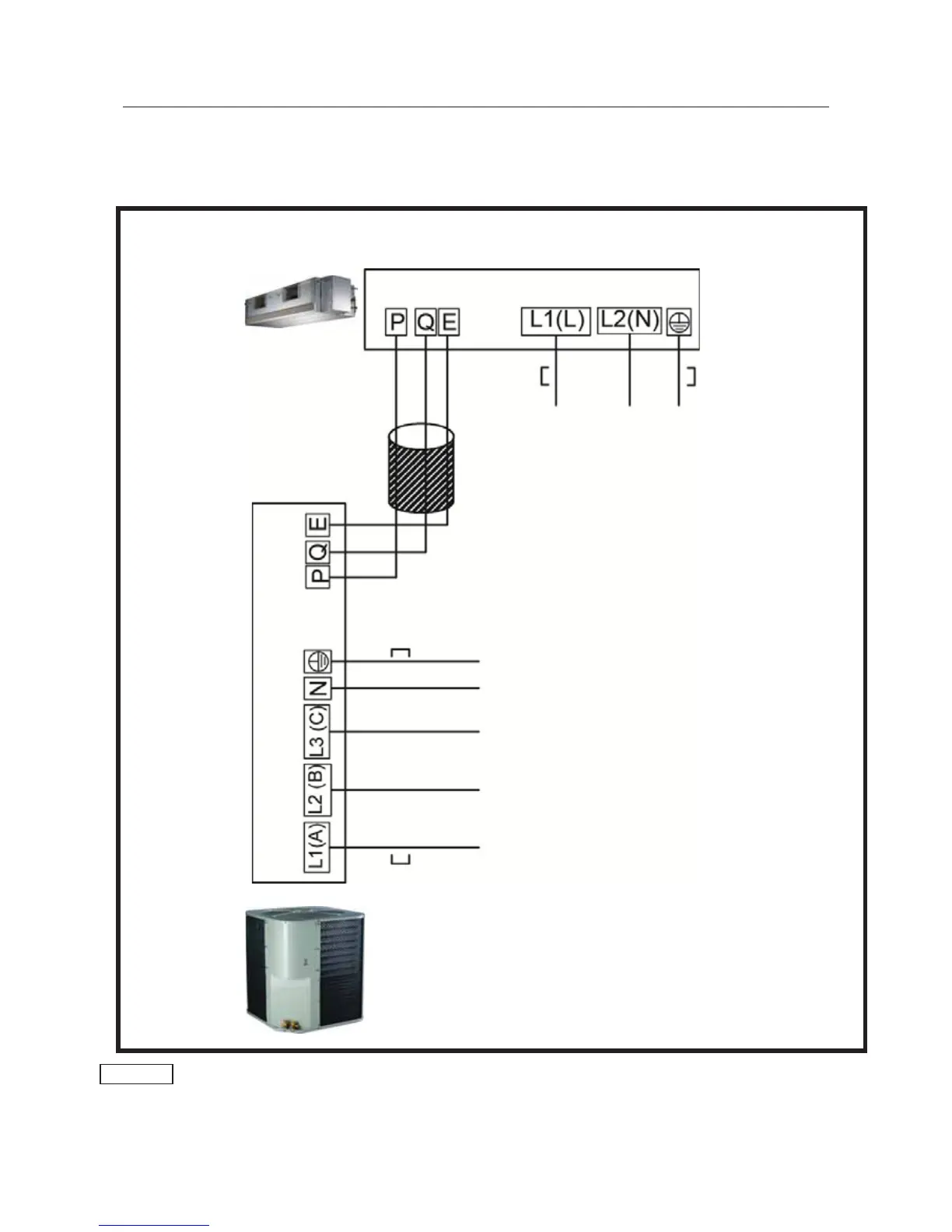

CONNECTING ELECTRICAL WIRING
21-7 Ducted Split Systems – High Static Pressure
Cool Only – 380-415V / 3 Ph / 50Hz
53KDHT42N-518T 53KDHT48N-518T 53KDHT60N-518T
Caution – Field Electrical Wiring
NOTE
Refer to wiring diagrams and stickers-caution field electrical wiring sticked inside the outdoor and indoor units.
Outdoor Units
38KDHT42N-518T
38KDHT48N-518T
38KDHT60N-518T
Indoor Unit
Outdoor Unit
Power supply:
Single-
Phase 220~240V / 1Ph / 50Hz
Use 3-core cable 3 x 1 mm
2
Power supply:
Three-Phase 380~415V / 3Ph / 50Hz
Use 5-core cable 5 x 2.5 mm
2
Use 3-core cable 3 x 0.2 mm
2
Indoor Units
42KDHT42N-718T
42KDHT48N-718T
42KDHT60N-718T
