Carrier Performance A07048 Product Data

2

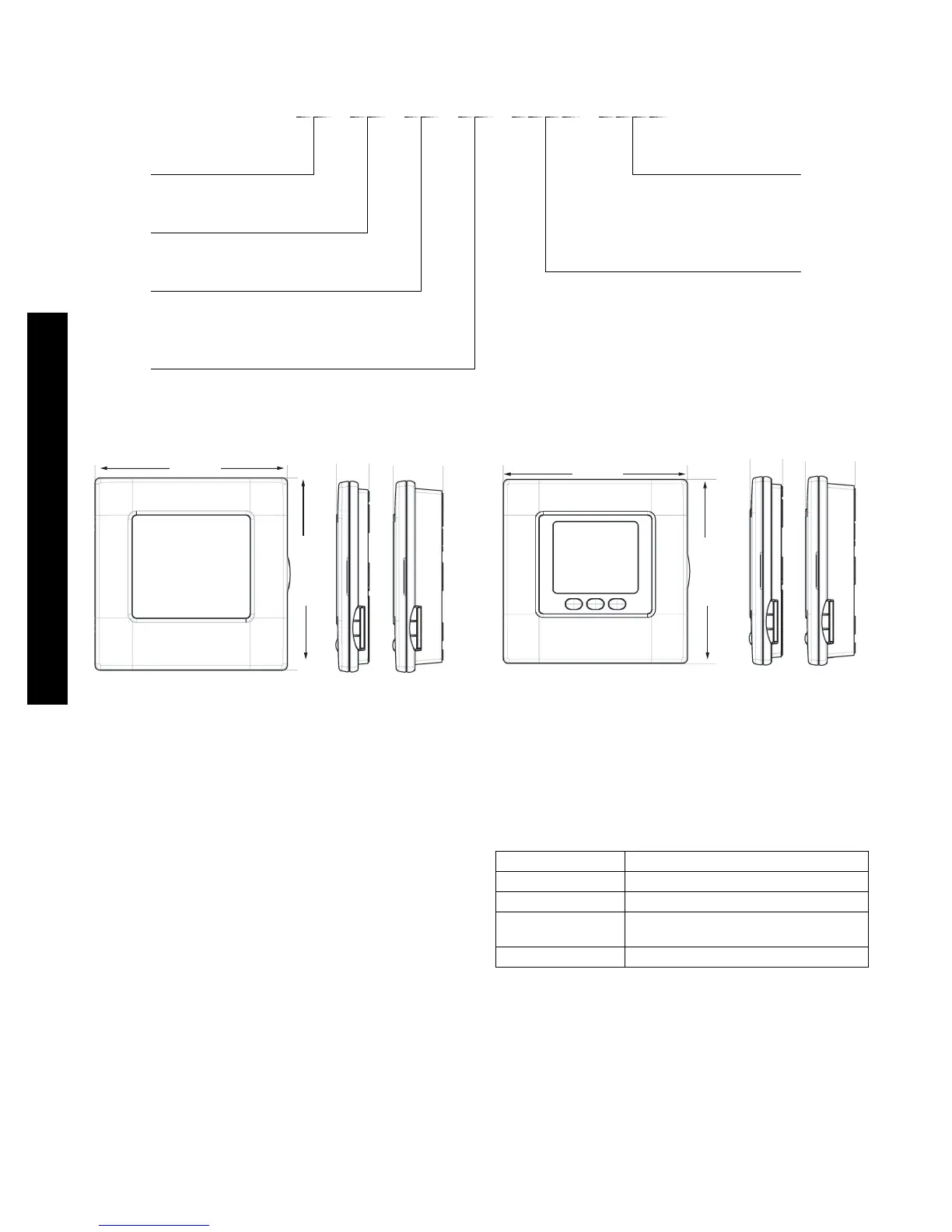

MODEL NUMBER NOMENCLATURE
12345678
TP-- PAC01
Product Packaged Quantity
T = Thermostat 01 = 1 piece
Series Equipment Type
P = Performance AC = Air conditioning
HP = Heat pump
Not Defined RH = Relative humidity
-- = Place Holder
Function Type
P = Programmable
N = Non -- programmable
DIMENSIONS
.9 in.
22.86 mm
1.3 in.
33.02 mm
Single
Piece
Two
Piece
5.2 in.
132.08 mm
5.2 in
132.08 mm
A07137
Fig. 3 -- Performance Series Programmable Thermostat
5.2 in.
132.08 mm
5.2 in
132.08 mm
.9 in.
22.86 mm
1.3 in.
33.02 mm
Single
Piece
Two
Piece
A07138
Fig. 4 -- Performance Series Non--programmable Thermostat
PRODUCT DATA INFORMATION
Physical Characteristics
Dimensions: See drawing
Mounting: Vertical or horizontal J--box provisions
Electrical
Input volts/amps: 24VAC, 3 VA, RC/RH compatible
Environ ment
Operating temperature/Relative humidity: 32_F(0_C) to
104_F(40_C), 95% RH non--condensing
Storage temperature/Relative humidity: --40_F(--40_C) to
134_F(57_C), 95% RH non--condensing
Wiring Requirements
Standard 18 to 22 gauge, local wiring codes supersede
Accessories
PART NUMBER DESCRIPTION
TSTATXXSEN01---B* Outdoor air temperature sensor
T P --- E X P ExP Expansion Memory Port
T X --- L B P 0 1
LargedecorativebackplateforTP---Pxx
a n d T P --- N x x
ZONECC0RRS01 Remote room temperature sensor
* The outdoor air temperature sensor must be used with the Thermidistat
control in a Hybrid Heat system.
TP -- PAC / -- PHP / -- PRH / -- NAC / -- NHP / -- NRH
