GB-12
Do not adopt configurations other than
those indicated above, as this may
compromise the correct operation of the
unit. In particular, avoid operating the unit
with just one aperture.

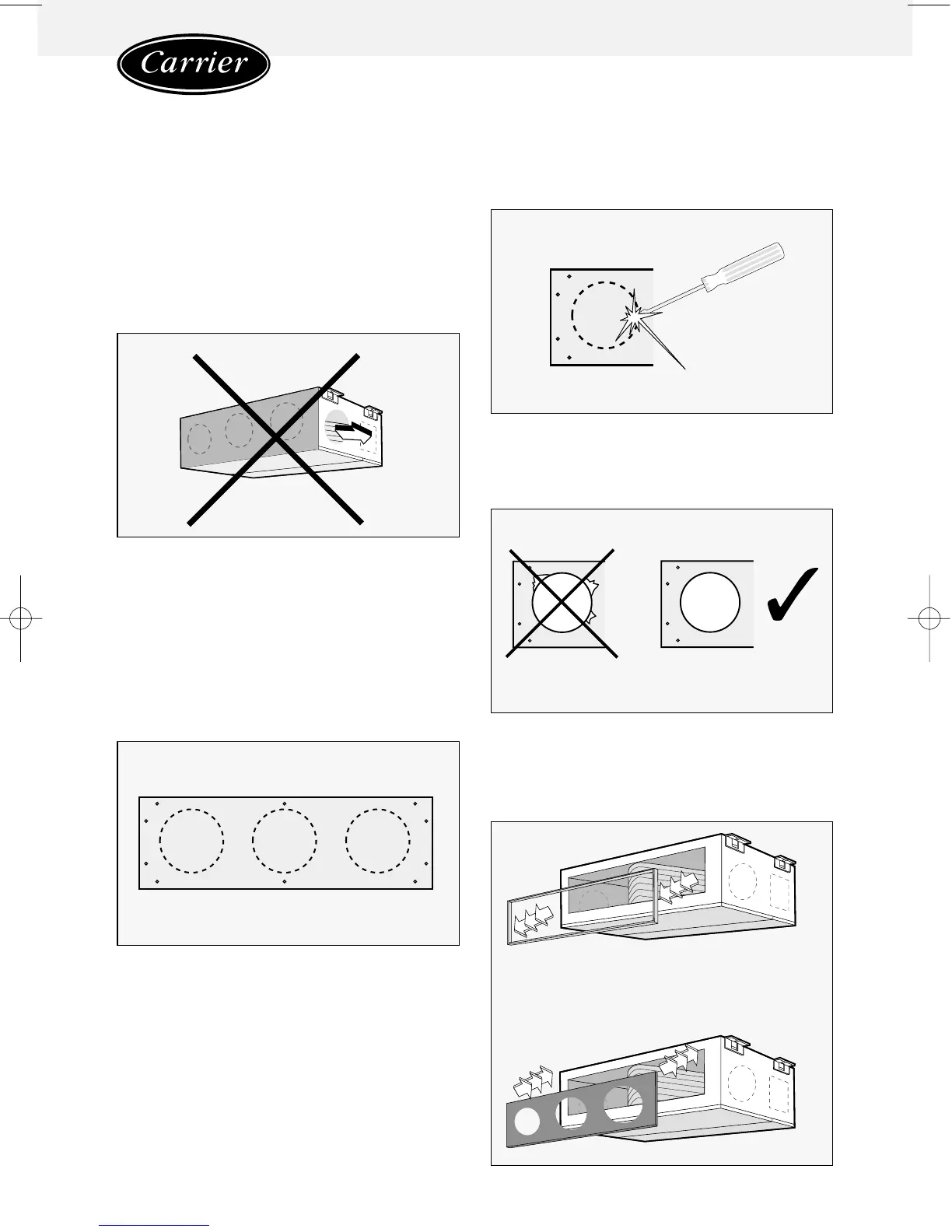

Predisposition of the unit for circular
front outlets
The unit is supplied with a front enclosure
panel with 8” diameter circular cut-outs.
Before removing the cut-outs, cut the
insulation on both sides of the panel with a
suitable knife. This facilitates opening and
prevents damage to the insulation.
After removing the cut-outs, make certain
that the insulation covers all the parts in
steel sheet.
After removing the cut-outs, replace the
front panel of the unit. Also using the screws
supplied.
