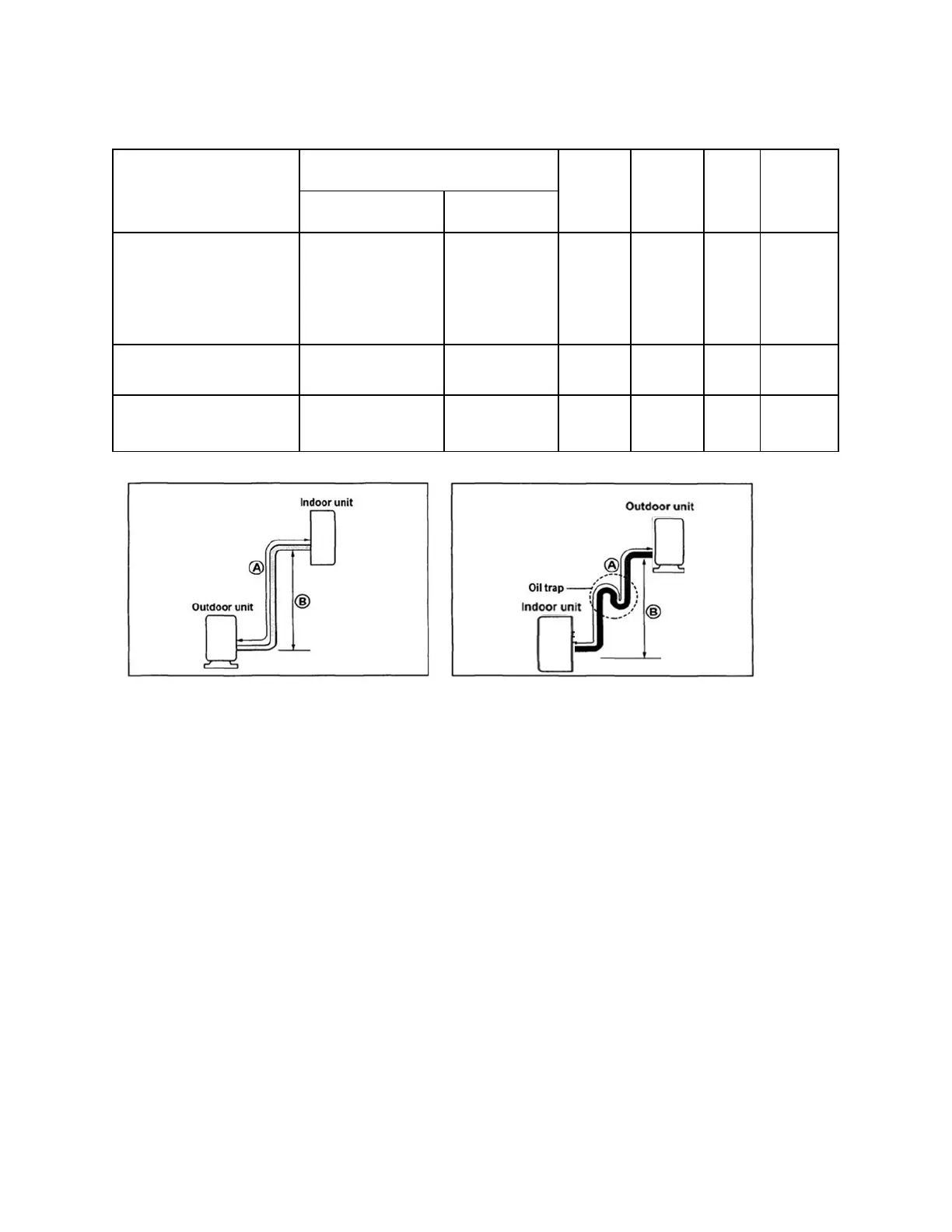

6.3 Pipe length and the elevation
The pipe length and refrigerant amount:
Model
Pipe size
Standard
length
(m)
Max.
Elevation
B (m)
Max.
Length
A (m)
Additional
refrigerant
(g/m)
Gas Liquid
38KHC009DSP
38KHC012DSP
38QHC009ESWP
38QHC012ESWP
3/8’’(Ф9.52) 1/4’’(Ф6.35) 5 10 25 15
38KHC018DSP
38QHC018DSWP
1/2’’(Ф12.7) 1/4’’(Ф6.35) 5 20 30 15
38KHC024DSP
38QHC024DSWP
5/8’’(Ф15.9) 3/8’’(Ф9.52) 5 20 40 30
Caution:
The capacity test is based on the standard length and the maximum permissive length is based on the
system reliability.
The oil trap should be installed per 5-7 meters.
