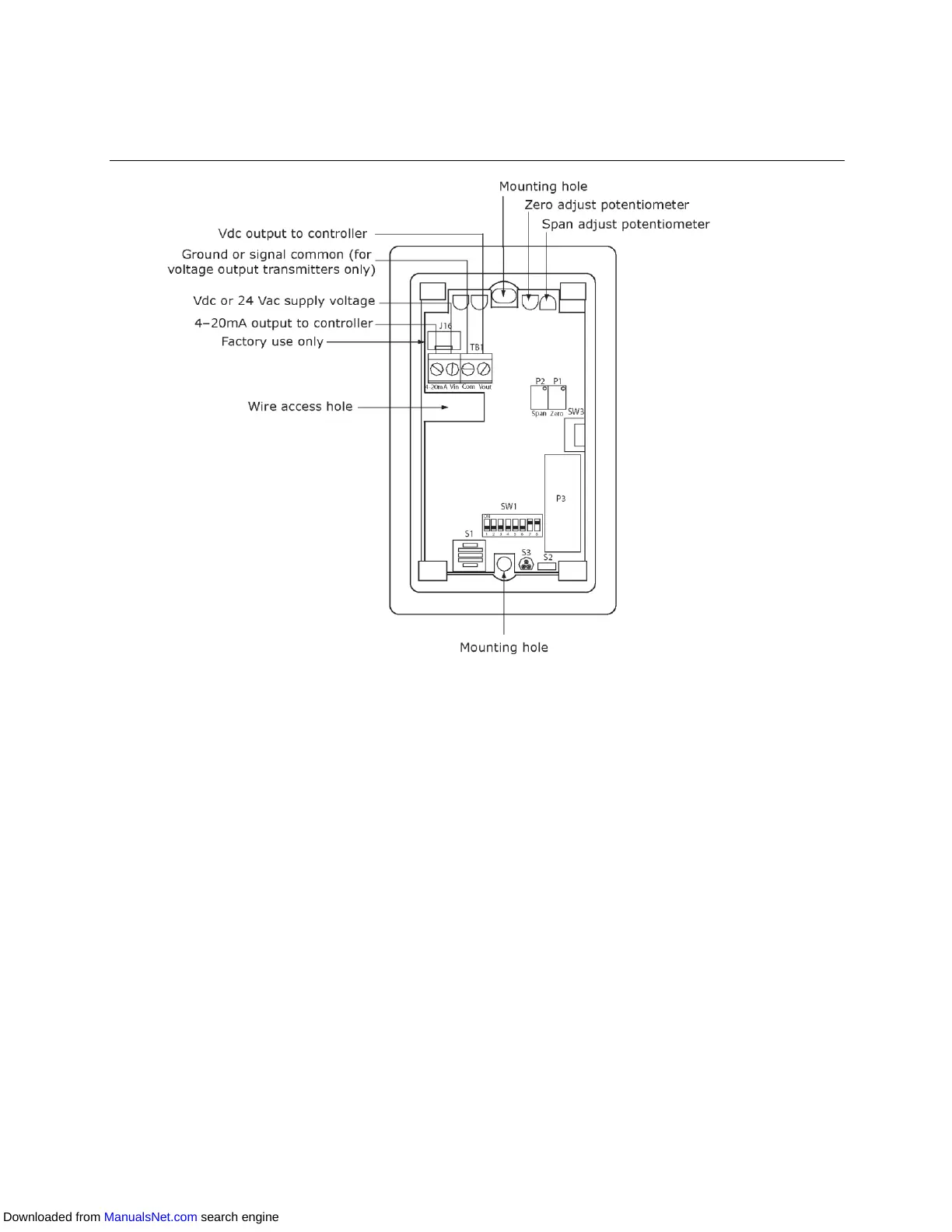

To wire and mount the Space RH sensors
1 Remove the sensor's cover from the mounting plate.
2 Feed the wires from the electrical box through the wire access hole in the center of the sensor mounting
plate.
3 Use the 2 screws provided to attach the mounting plate to the electrical box.
4 Strip the outer jacket from the cable for at least 4 inches (10.2 cm). Strip .25 inch (.6 cm) of insulation from
each wire.
5 Wire the unit for power. See Typical power wiring diagrams for Space RH sensors (page 56).
