Carson Hobby Magnifier User Manual

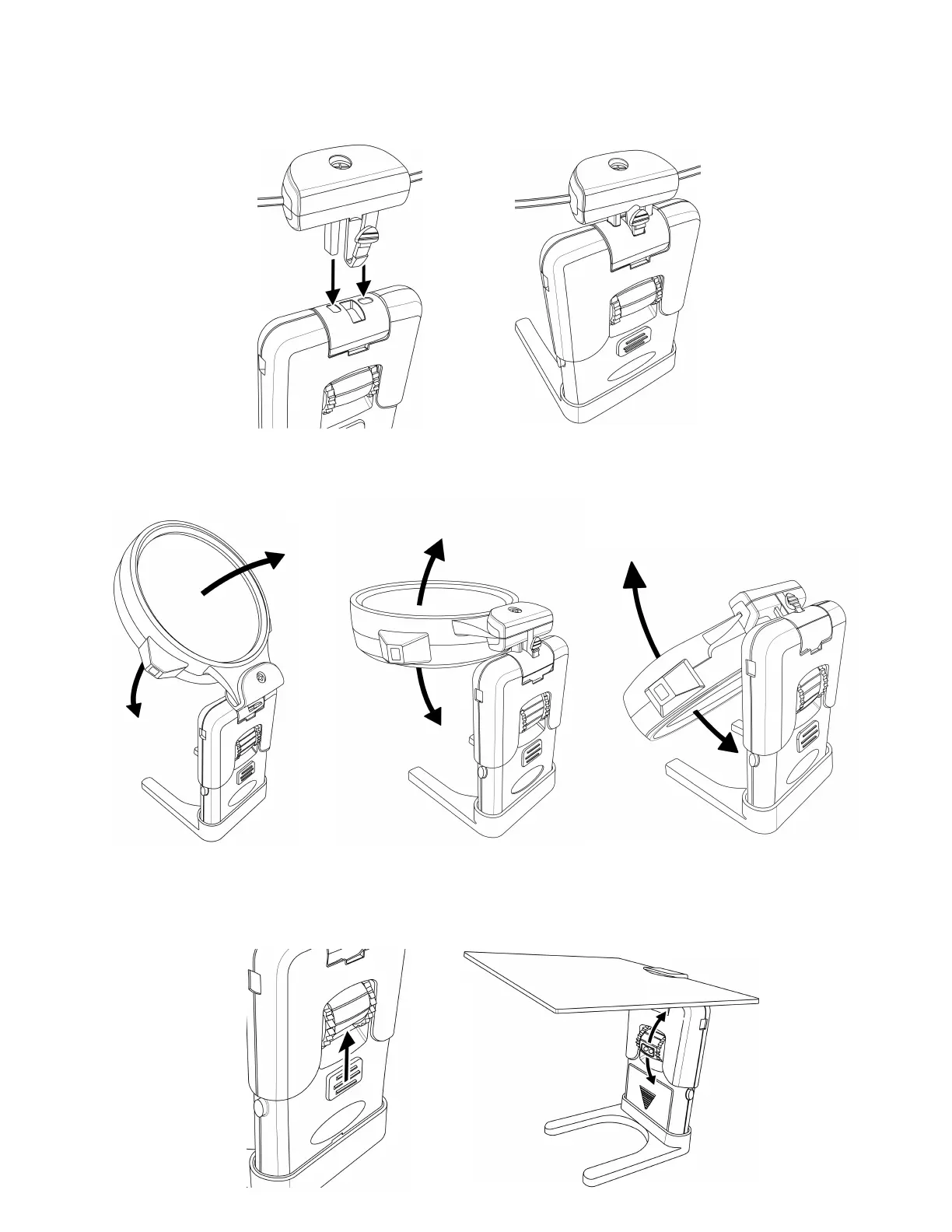

Inserting Lenses
Choose desired lens and insert into body as shown in Figure 5. Adapter will click when lens is inserted
securely (Fig 6).
Fig. 5
Fig. 6
Adjusting Lens Angle
Pull lens up or down to position at desired angle. Lens will click into place in various positions (Fig.
7-9).
Fig. 7
Fig. 8
Fig. 9
Activating LED Light
Slide switch upward to turn on light (Fig. 10). Rotate light compartment to direct light toward desired
viewing subject (Fig. 11). Turn light off when not in use.
Fig. 10
Fig. 11

Carson Hobby Magnifier Specifications

General

Brand	Carson
Model	Hobby Magnifier
Category	Magnifiers
Language	English
