M22904240

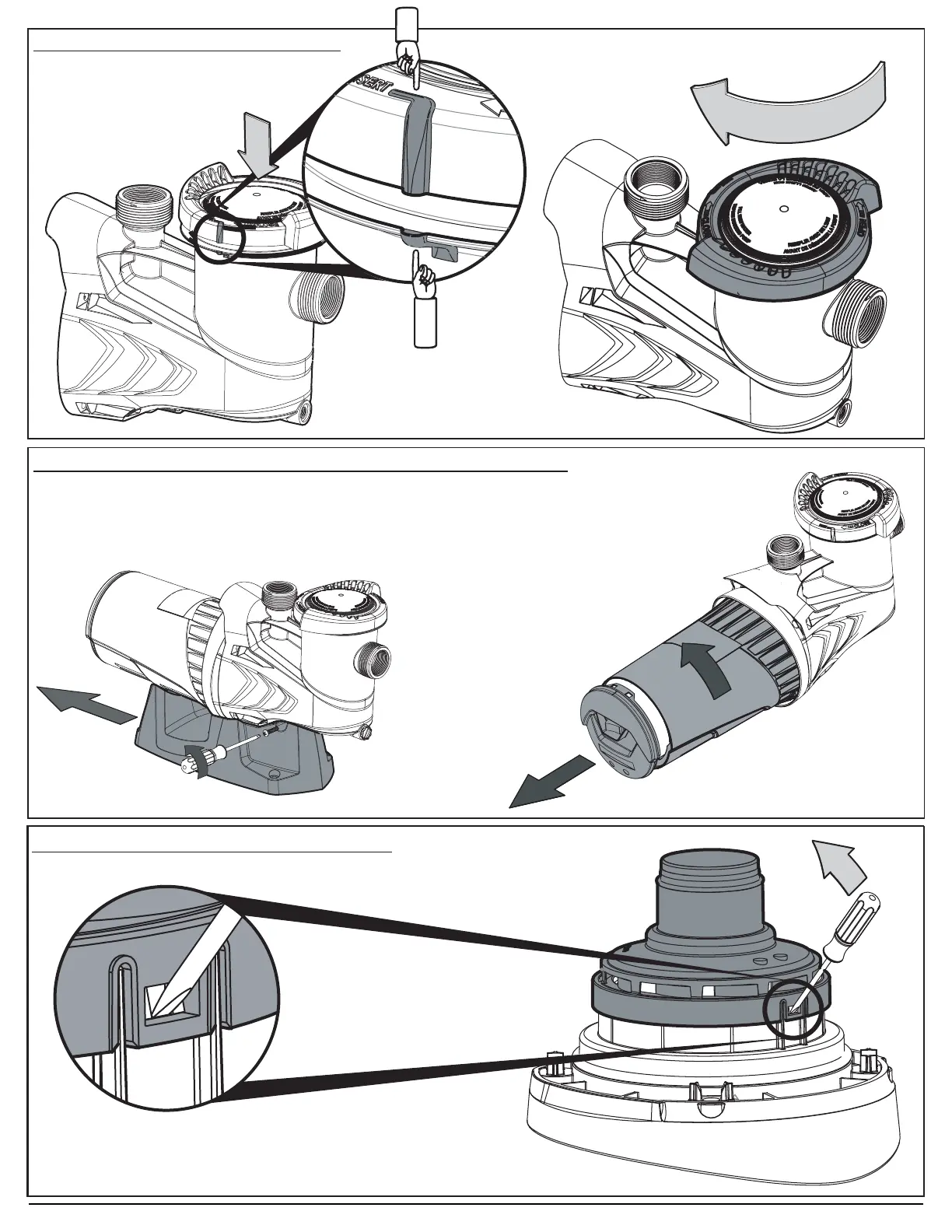

STRAINER NUT INSTALLATION (g. 2)
ALIGN MARKERS OF THE STRAINER
NUT AND BODY AND INSERT.
1.INSERTION 2.TIGHTENING
TURN STRAINER NUT
1/4 TURN CLOCKWISE
TO TIGHTEN
WWW.CARVINPOOL.COM 5
REMOVING SPLASH COVER (g. 3)
DIFFUSER REMOVAL (g. 4)
REMOVE SCREW AND SLIDE BASE BACKWARD .
THIS WILL DISENGAGE THE LOCKING TABS BLOCKING THE
SPLASH COVER.
1. REMOVING THE PUMP BASE 2. REMOVING THE SPLASH COVER.
COUNTERCLOCKWISE
TO UNLOCK
A. UNPLUG PUMP FROM POWER SOURCE
B. REMOVE THE TWO SCREWS HOLDING THE REAR CAP
C. UNPLUG THE WIRES FROM THE SWITCH AND REMOVE
THE CAP.
D. TURN THE SPLASH COVER COUNTERCLOCKWISE TO
UNLOCK IT.
INSERT A SMALL SCREWDRIVER
BETWEEN THE TWO SNAPS ON THE
MOTOR BRACKET. LIFT SLOWLY THE
DIFFUSER’S TAB TO RELEASE.
(REPEAT ON THE OTHER SIDE)
