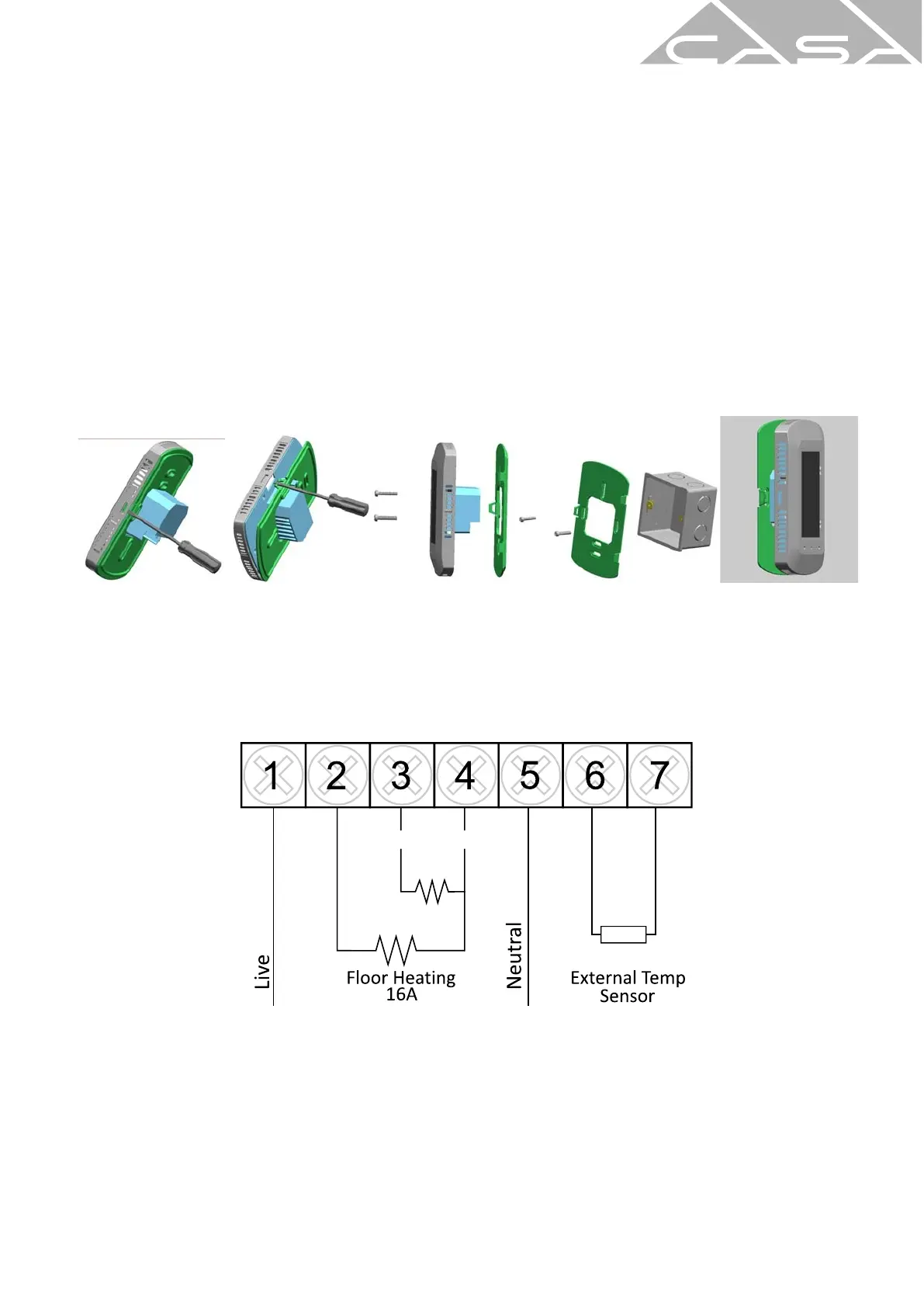

Fitting Instructions
Separate the backplate from the unit. Use machine screws to securely attach 1.
the backplate to the wall.
Follow the Wiring Diagram to connect the floor heating cold leads, optional 2.
t/rail power leads, exterior temperature sensor and electrical supply to the terminals.
Re-attach the unit to the wall-backplate ensuring that 3 plastic clips are clicked correctly.3.
Note:
Thermostat connection must be
done by registered electrician.
Wiring Diagram
towel rail
3A
2
To Next Page
