Engine-Aftercooler

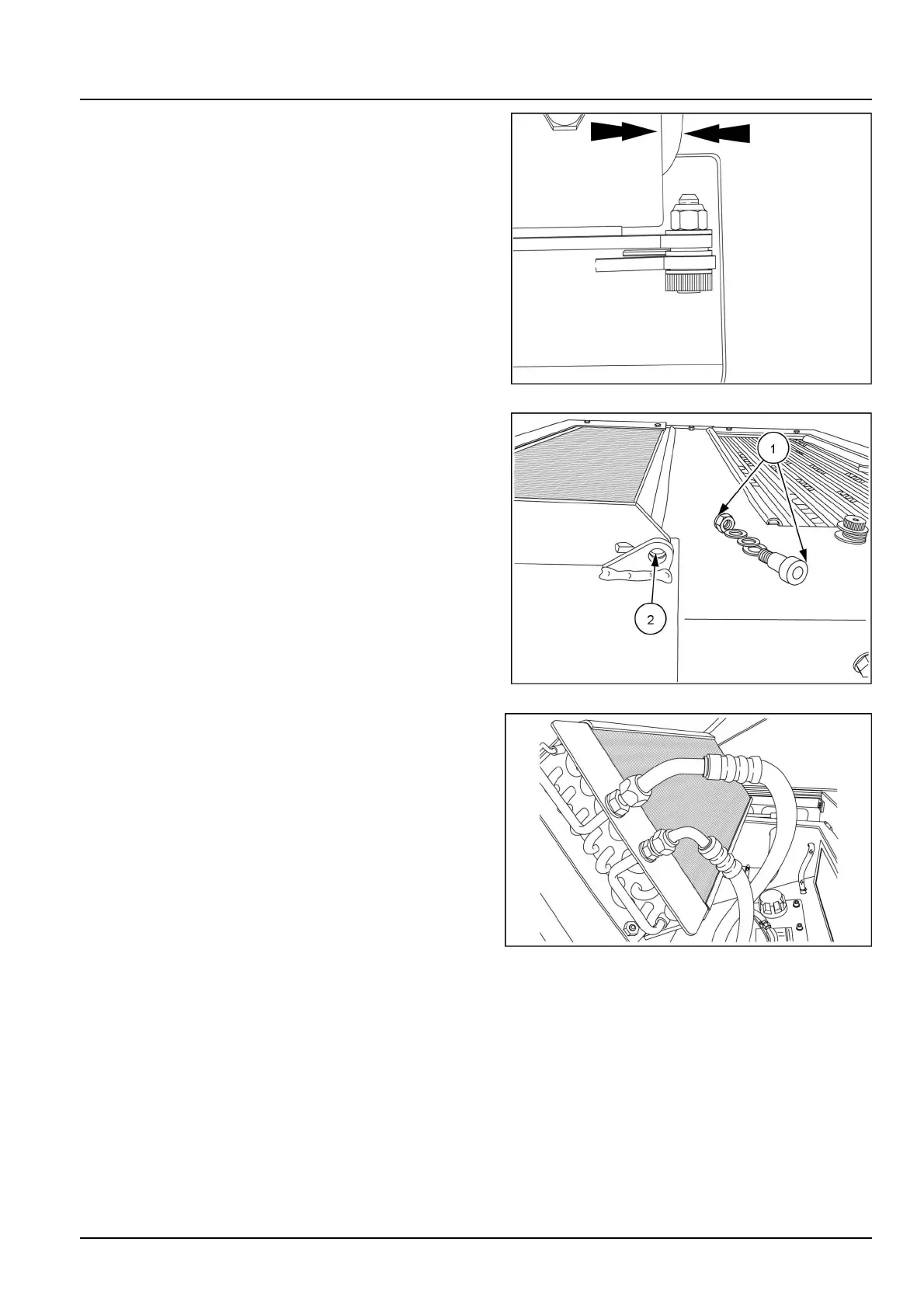

17.Withasharpcuttingtool,makeasliceinthegasket
(arrowed)neartheshoulderbolt.
RAPH12WEL0177AA16
18.Removeshoulderbolt,washersandnut(1)fromair
conditionercondenserunit(2).
RAPH12WEL0221AA17
19.Liftairconditionercondenserupandangletowardthe
backofthecab.Supportinplaceifneeded.
RAPH12WEL0146AA18
7111402215/02/2016
10.3[10.310]/9
