E-39
English
Getting Ready
Before assembling the stand, first take a few moments
to check that all of the items shown below are present.
• This stand does not include any of the tools required
for assembly. It is up to you to prepare a large
Philips head (+) screwdriver for assembly.
IMPORTANT!
• Do not use any screws other than those that come
with the stand. Doing so risks damage to the stand
and/or Digital Piano.
• You can find the screws in a plastic bag inside of the
packing material.
• If anything is missing or damaged, contact your local
CASIO service provider.
CAUTION
• Assembly of the stand should be performed by at
least two people working together.
• This stand should be assembled on a flat surface.
• Do not remove the tape securing the keyboard cover
in place until assembly is complete. Removing the
tape can cause the keyboard cover to open and close
during assembly, creating the risk of personal injury
to your hands and fingers.
• Take care that you do not pinch your fingers
between parts when assembling them.
1.
Unfasten the band 1 that bundles the pedal
cable to the back of crosspiece
D
and pull the
pedal cord out from the crosspiece.
2.
Attach side panels
A
and
B
to crosspiece
D
.
Secure the side panels using four screws
E
.
• When installing parts 2, slide the brackets 3 into the
slots in either end of crosspiece
D
. If the brackets 3
are not inserted into the ends of the crosspiece
D
as
far as they will go, the screws
E
will not be able to
enter into the screw holes of the brackets 3, which
can strip the threads of the screws.
• Cover the screw heads with the caps
I
.

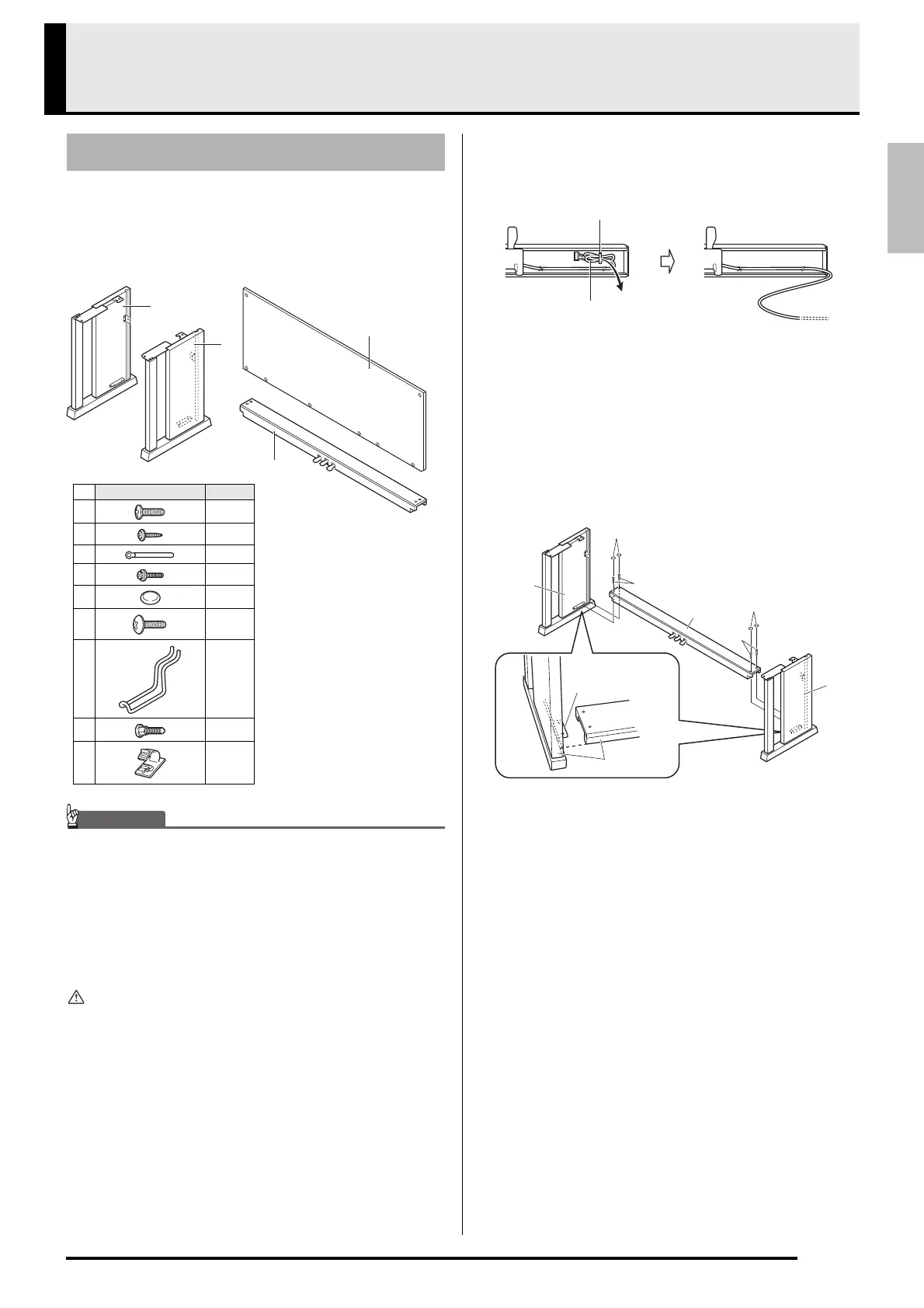

Assembling the Stand
C
D
A
B
Part Qty
E
4
F
6
G
1
H
2
I
4
J
4
K
1
L
1
M
1
1
Pedal cable
A
D
B
I
I
3
2
E
E
AP450_e.book 39 ページ ２０１２年６月２０日 水曜日 午前１１時１１分
