SE-G1/PCR-T273/SM-T274
– 28 –

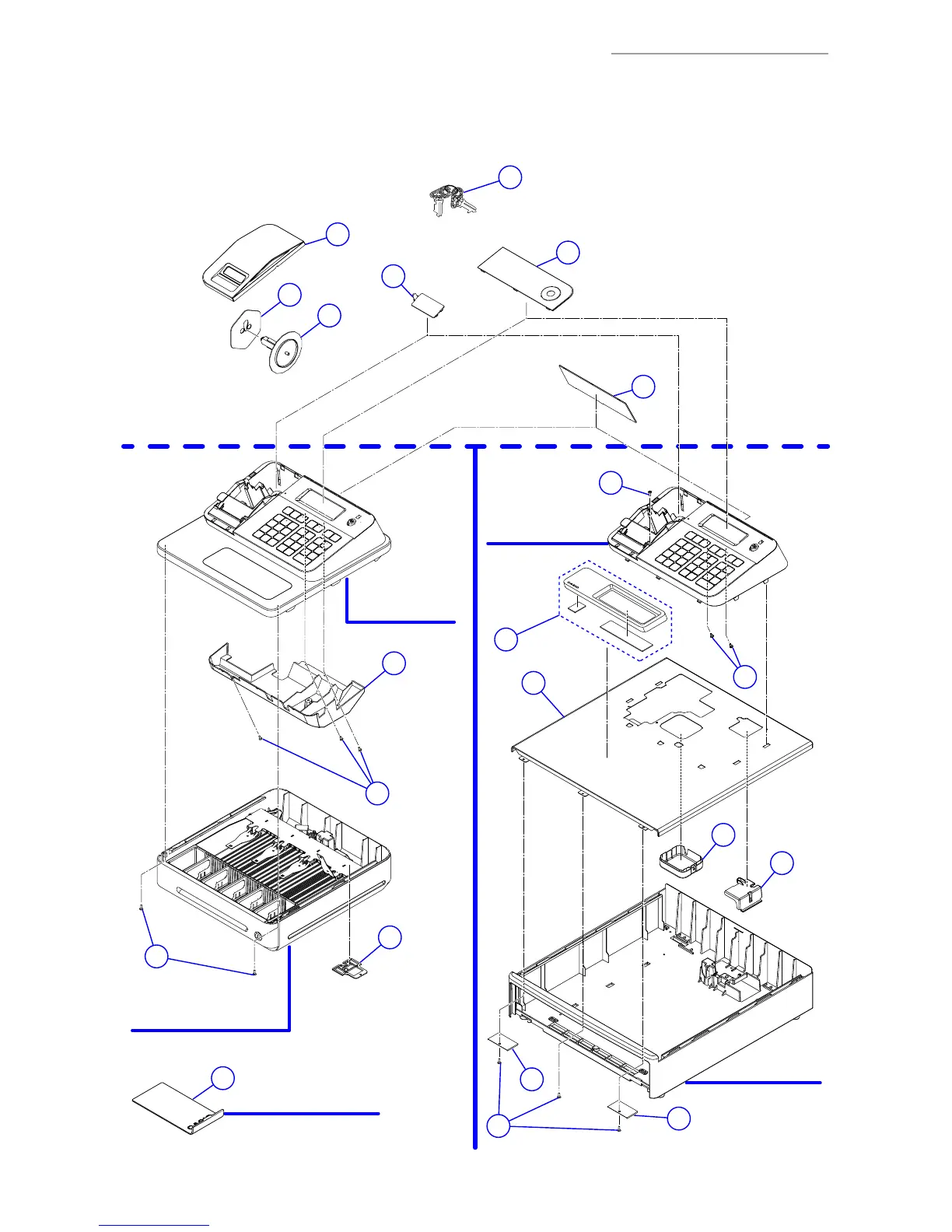

6-1. EXPLODED VIEW
FINAL-ASSY
S-type M-type
EU &UK only
MAIN-UNIT
DL-2816
DL-2817
MAIN-UNIT
DL-1335
DL-1844
DL-1845
1
3
5
7
8
6
4
2
9
11
15
13
14
10
12
12
S2
S3
S1
S3
S4
