CAT 3412C - Annunciator Module

• Air Filter Differential Pressure
• Engine Oil Pressure
• Fire Extinguisher Pressure
• Fuel Filter Differential Pressure
• Oil Filter Differential Pressure
• Starting Air Pressure
Temperatures
• Ambient Air Temperature
• Engine Coolant Temperature
• Engine Oil Temperature
• Exhaust Temperature
• Rear Bearing Temperature
• Right Exhaust Temperature
• Left Exhaust Temperature
Levels
• Engine Coolant Level
• Engine Oil Level
• Fuel Level
• External Fuel Tank Level
Other
• Air Damper Closed
• ATS in Normal Position
• ATS in Emergency Position
• Battery Charger Failure
• Generator Breaker Closed
• Utility Breaker Closed
• Fuel Leak Detected
• Custom Event
For detailed information about the electronic control
module, see Systems Operation, Troubleshooting,
Testing and Adjusting, RENR7902, “3508B, 3512B,
3516 and 3516B Engines EMCP3”.

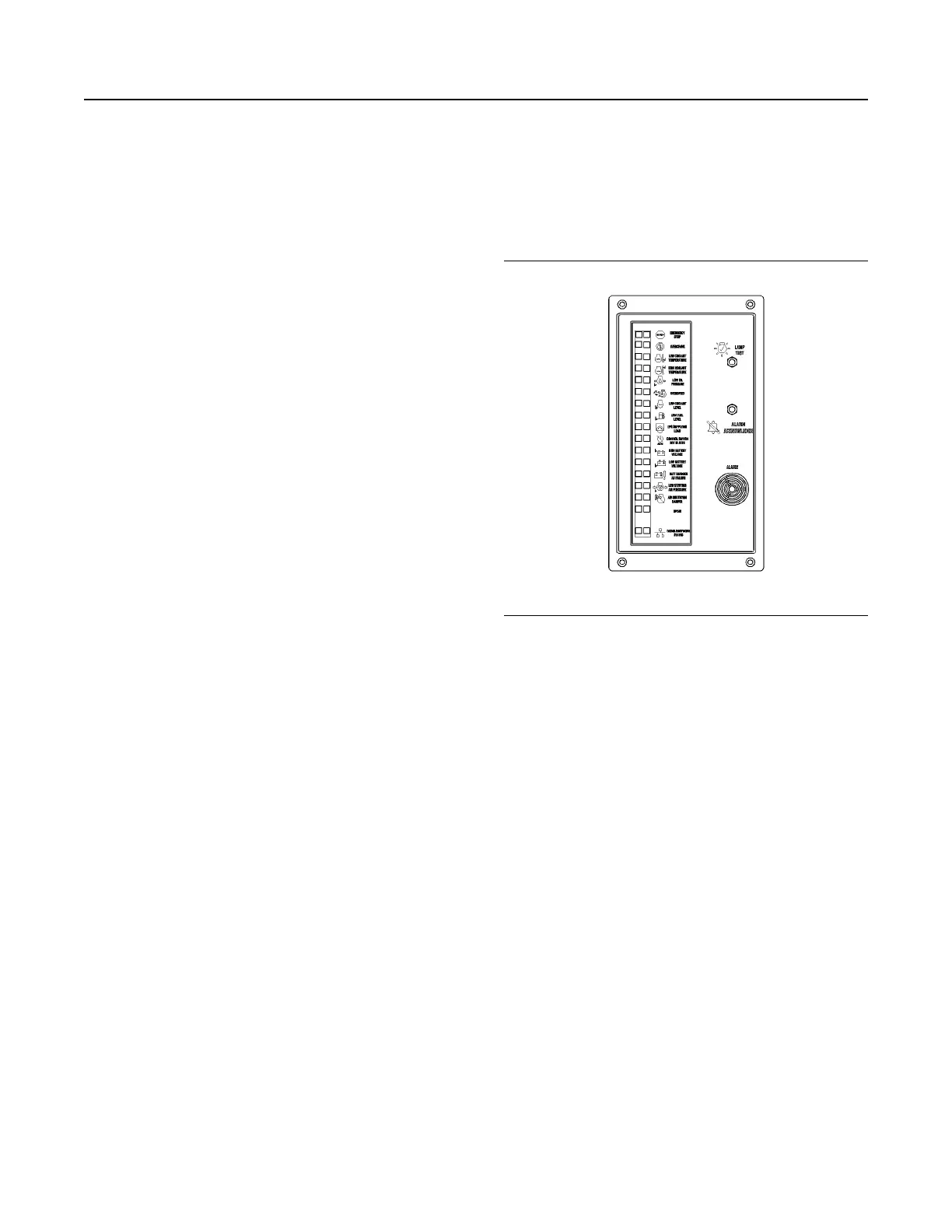

Annunciator Module
Illustration 72 g01101388
General Information
The annunciator module is used to indicate various
system events and conditions. The annunciator
module uses indicator lights and an audible horn to
give the operator information about the current status
of the system. The annunciator module can be used
to announce faults and/or status signals to the
operator. The annunciator module allows the
operator to silence the horn. The annunciator module
also allows the operator to acknowledge faults to the
system.
There are seventeen pair of LED indicators on the
annunciator's front panel. Sixteen pair of LED
indicators are used to announce events, diagnostics,
and ready signals. The seventeenth pair of LED
indicators is used as a combined network/module
status LED. The seventeenth pair of LED indicators
can tell the operator if there is a problem with the
J1939 data link connection.
SEBU7125-13
63
Operation Section
If Equipped
