Application and Installation Guide EMCP 4 SCADA Data Links
©2013 Caterpillar
All rights reserved. Page 57

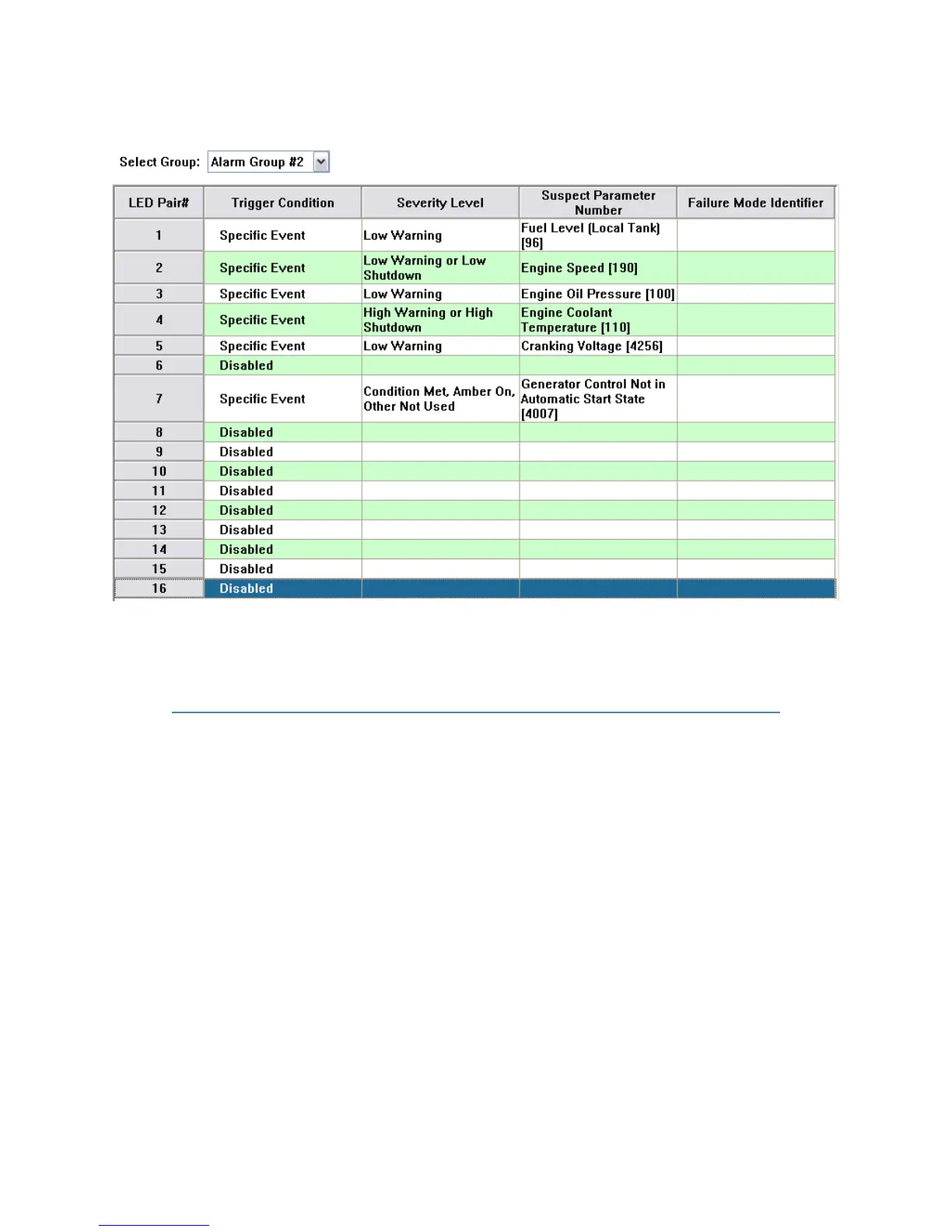

F
IGURE 7-7: CAT ET CONFIGURATION FOR ALARM GROUP 2
This has configured the Alarm Group 2 Column 1 and Alarm Group 2 Column 2 registers as follows:
T
ABLE 7-2: ALARM GROUP REGISTERS CONFIGURATION
Alarm Group 2 Column 1 (346) Alarm Group 2 Column 2 (347)
BIT 15 = not used BIT 15 = not used
BIT 14 = not used BIT 14 = not used
BIT 13 = not used BIT 13 = not used
BIT 12 = not used BIT 12 = not used
BIT 11 = not used BIT 11 = not used
BIT 10 = not used BIT 10 = not used
BIT 9 = not used BIT 9 = not used
BIT 8 = not used BIT 8 = not used
BIT 7 = not used BIT 7 = not used
BIT 6 = not used BIT 6 = Generator Control Not in Automatic Warning
BIT 5 = not used BIT 5 = not used
BIT 4 = not used BIT 4 = Low Cranking Voltage Warning
BIT 3 = High Coolant Temperature Shutdown BIT 3 = High Coolant Temperature Warning
BIT 2 = not used BIT 2 = Low Oil Pressure Warning
BIT 1 = Engine Underspeed Shutdown BIT 1 = Engine Underspeed Warning
BIT 0 = not used BIT 0 = Low Fuel Level Warning
