CAT INV2000 - Recoil Starter Diagram

33

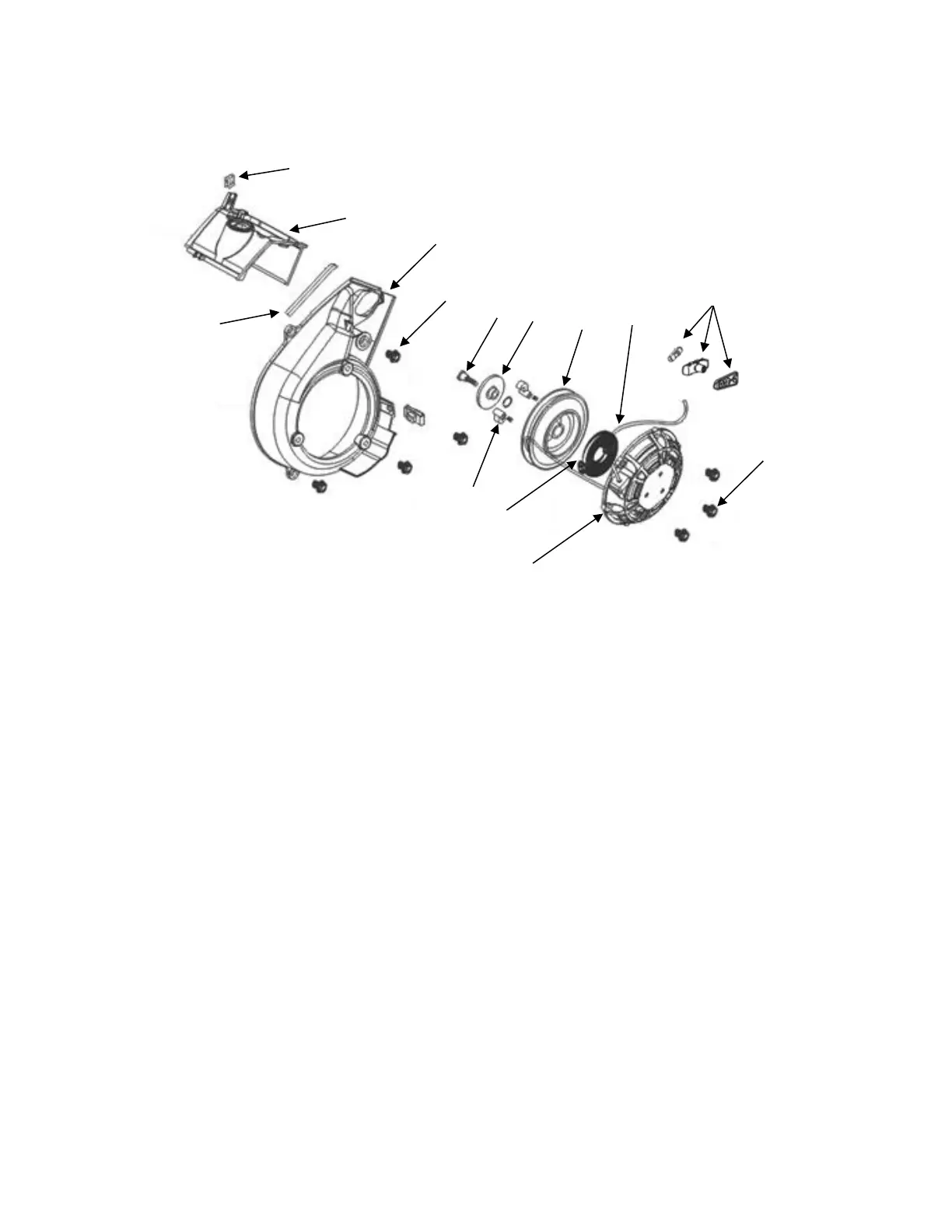

Recoil Starter
1. Limit card
2. Air deflector
3. Shroud
4. Bolt
5. Locking screw
6. Drive guide
7. Recoil starter pulley
8. Recoil pull cord
9. Handle assembly
10. Bolt
11. Housing
12. Starter spring
13. Drive cam/return spring assembly
14. Shroud seal strip
1
2
3
4
8
9
13
14
10
5
6
7
11
12
