Remtron
®
Engineered Systems
User Manual
11
9M02-9028-A021-
EN
Version 4.0
22R08A

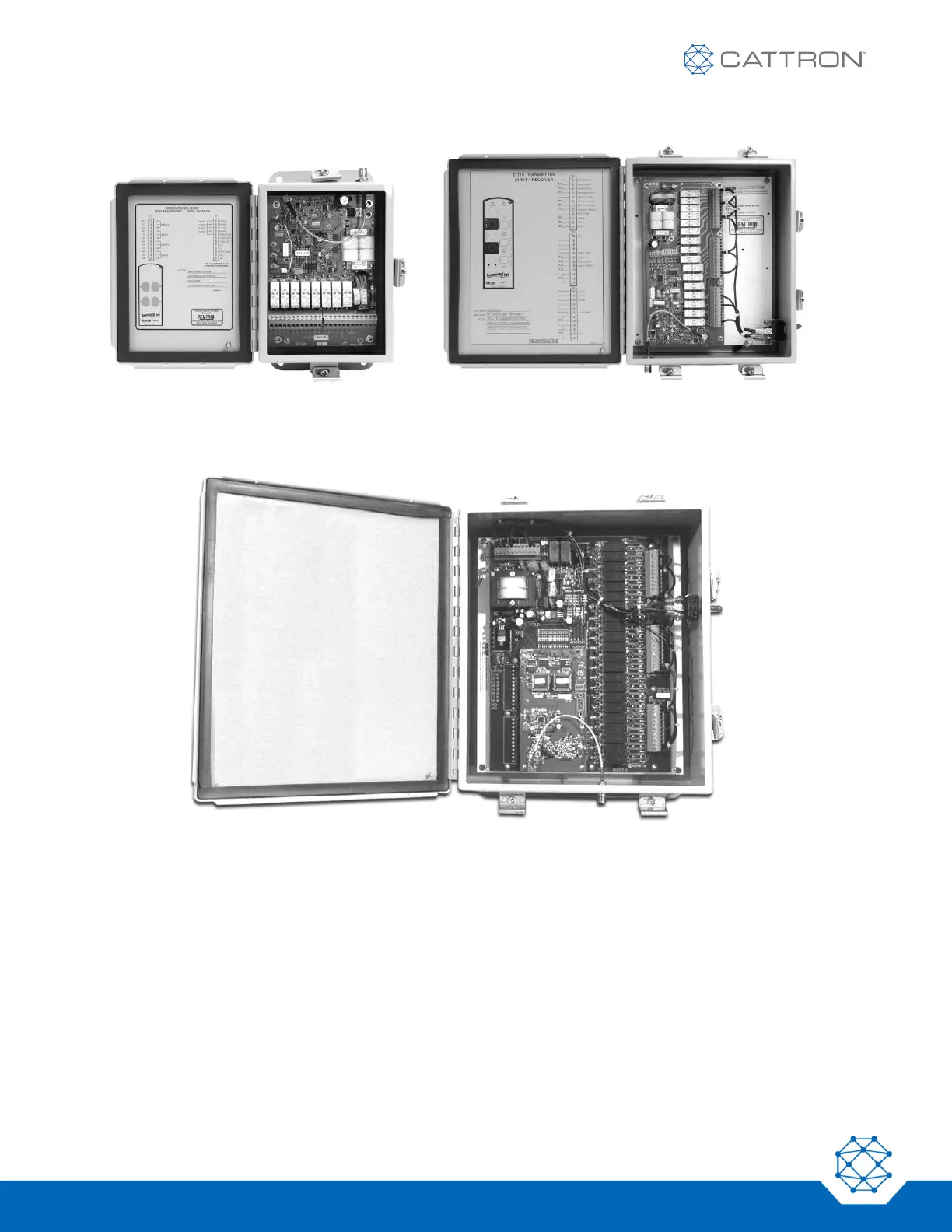

8 Function Receiver
21R14A
14 Function Receiver
21R22
22 to 66 Function Receiver
Figure 2
:
Cattron Comm
andPro
®
Engineered Syste
ms Receivers
10
12
Table of Contents
Default Chapter
3
Table of Contents
3
1 Warnings
6
2 FCC Compliance Statement
7
3 Safety Rules
8
Installation
8
Personal Safety
8
Care
8
4 Introduction
9
Purpose
9
Scope
9
Important Safety Rules
9
5 Operations
12
How the System Works
12
Frequency
12
Range and Antenna Coverage
12
License-Free Channels
12
Command Format
13
Safety
13
Carrying Strap for 'Belly Box' Controllers
13
Transmitter Operation and Features
14
Wireless Operation
14
Pendant Operation
14
Commands
15
Command Switches
15
Status Indicators
17
Status LED
17
Function Select Leds
17
6 Installation
18
General
18
Locating the Equipment
18
Antenna Location
18
Receiver Location
19
Installation Wiring
20
Receiver Power
20
Relay Outputs
20
Output Snubbers
20
Installation Procedure - 21R14A Receiver
20
Power/Control Wiring
20
Installation Procedure - 21R22 Receiver
24
Power/Control Wiring
24
21R14A Installation Testing
27
21R22 Installation Testing
27
Installation Procedure - SAFE-T-RANGE (21R22CR)
28
21R22CR Power/Control Wiring
28
21R22CR Antenna Installation
28
21R22CR Installation Testing
29
21R22CR Control Range Alignment and Test
29
Installation Procedure - 22R08A
30
22R08A Power/Control Wiring
30
22R08A Output Relay Connections
32
22R08A Installation Testing
32
7 Maintenance & Troubleshooting
34
Monthly Inspection
34
Installation Troubleshooting
34
Transmitter Troubleshooting
34
Normal Operation
34
Transmitter Repair
35
Replacing the Transmitter Batteries
35
Changing the Transmitter ID Code
36
Transmitter Spare Parts List
38
Handheld Transmitters
38
Belly Box Transmitters
38
Receiver Troubleshooting
39
General
39
Receiver Testing
39
Receiver Repairs
41
Replacing the Circuit Boards
41
Changing the Receiver ID Code
41
Receiver Spare Parts List
42
8 Warranty Statement
43
9 CE Declaration of Conformity
44
Appendix I: Transmitter Specifications
45
Certifications
46
Appendix II: Receiver Specifications
47
Certifications
48
