The device described in this manual is the CAVOE IDEO Baby Stroller, designed for the transport of a single child from birth up to 36 months of age, with a maximum weight of 22 kg. It is manufactured in accordance with EN 1888-1:2018 and EN 1888-2:2018 standards, indicating its compliance with European safety regulations for child care articles.

Function Description:

The CAVOE IDEO is a versatile baby stroller designed for outdoor use across various atmospheric conditions and surfaces. Its primary function is to safely transport a child, offering features for comfort, adjustability, and ease of use for parents. The stroller includes a 5-point safety harness system to secure the child, a parking brake for stability, and a swivel seat function for enhanced maneuverability and interaction. The backrest and footrest are adjustable to accommodate the child's age and comfort needs, from a lying down position for infants to a seated position for older children. The stroller is also designed for compact folding for storage and transport.

Important Technical Specifications:

Child Age/Weight Range: From birth up to 36 months, with a maximum weight capacity of 22 kg.
Safety Standards: Complies with EN 1888-1:2018 and EN 1888-2:2018.
Safety Harness: 5-point safety harness system with adjustable shoulder straps and hip belts, designed to fit children of different ages. Lower slots for children under 6 months, upper slots for children over 6 months.
Backrest Adjustment: 3-step recline adjustment, allowing for a lying down position suitable for infants.
Footrest Adjustment: Adjustable footrest to support the child's legs.
Swivel Seat: The seat has a 360° swivel function, allowing it to face forward or backward.
Brake System: Rear parking brake.
Basket Load: Maximum load of the storage basket is 3 kg.
Bag Load: Maximum load of an additional bag (if attached to the handle) is 2 kg.
Temperature Range: Functional temperature range from -5°C to +35°C.
Folding Mechanism: Features a folding mechanism with a securing button and a second lock button for compact storage. Can be folded with the seat facing forward or backward, though folding with the seat facing forward results in a larger, less regular folded size.
Wheels: Detachable front and rear wheels for easier transport and maintenance.
Bumper Bar: Removable front bumper bar.

Usage Features:

Unfolding: To unfold, straighten the upper part of the handle, press the securing button, twist the folding mechanism, and vigorously move forward and up until the backrest is lifted.
Wheel Attachment/Removal: Wheels are attached by pushing their hubs into the mounts and removed by pressing a button on the back/bottom of the mounts and sliding the hubs out. It is crucial to ensure wheels are correctly attached before use.
Parking Brake: Engage the brake by pressing down on the lever (foot pedal) and disengage by lifting it. The brake should always be engaged when the stroller is stopped, especially on inclined surfaces, and is not designed for slowing down.

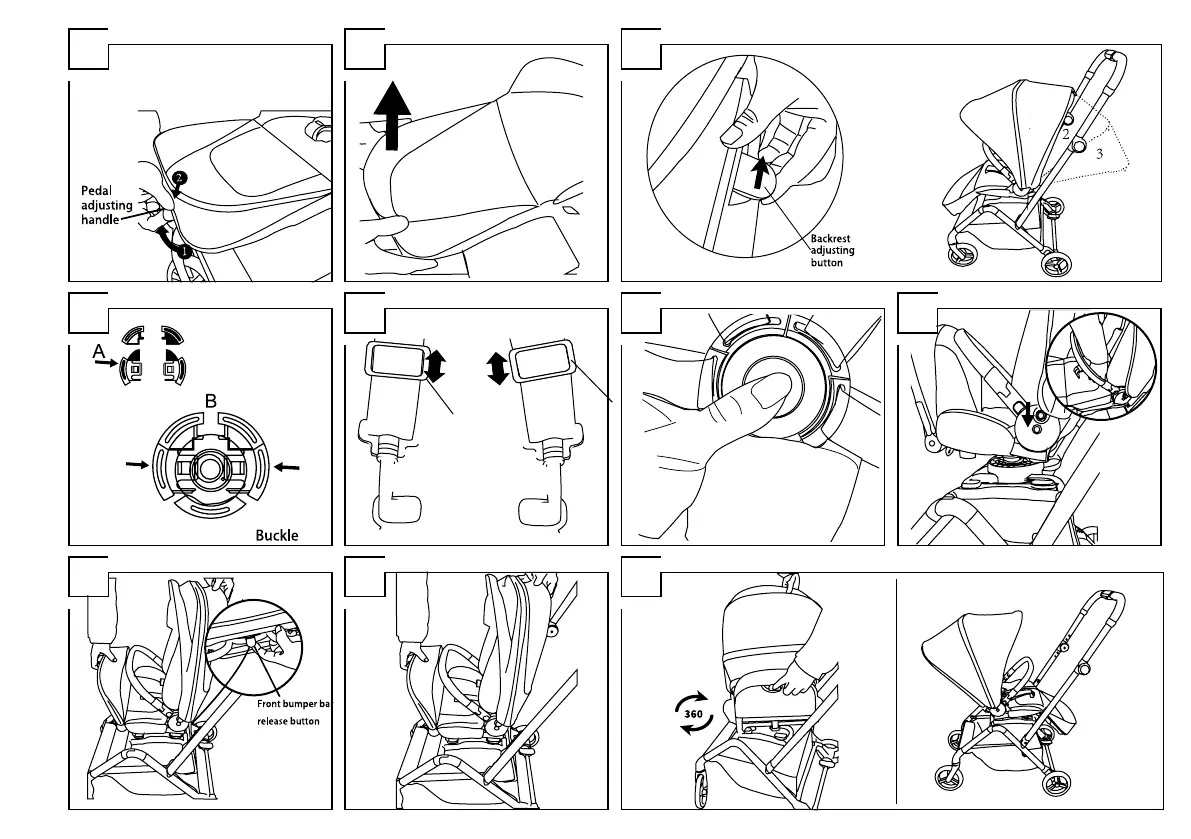

Footrest Adjustment: Lower by pulling a lever at the front, raise by pushing up. When the child is seated, the footrest should be lowered.
Backrest Adjustment: Lower by pulling a lever at the rear, raise by pushing up. It automatically locks into position.
Safety Harness Usage: Connect shoulder straps with hip straps and insert into the central buckle. Adjust strap length for a snug but comfortable fit. To open, press the button on the central buckle. For children under 6 months, the backrest must be in a lying down position.
Swivel Seat Installation/Removal: Install by plugging the seat's pin into the round holder on the frame. Remove by pulling a plastic lever under the seat. Ensure the seat is correctly installed before use.
Swivel Seat Function: To rotate, set the backrest to a seated position, lift the footrest to a vertical position, and pull the footrest adjustment lever. The seat will automatically lock in forward or backward facing positions with an audible click.
Folding: Rotate the seat backward, tilt the backrest fully forward, press the safety button, twist the folding mechanism, and push the handle down and forward until the frame locks. Repeat the safety button and twist action to fully fold the handle.

Maintenance Features:

Regular Maintenance: Periodic maintenance is essential for proper functioning, especially given outdoor use in varying conditions.
Metal Parts: Clean with a damp cloth and mild detergent, then wipe dry to prevent corrosion.
Upholstery: Clean with a damp cloth and mild washing agent. Air dry in a well-ventilated area, away from prolonged sunlight. Do not machine wash, tumble dry, or soak upholstery due to structural elements.
Bleach: Do not use bleach; only mild detergents are permitted.
Wetting: If the product gets wet, wipe metal elements dry and leave the stroller unfolded in a well-ventilated place until completely dry.
Sunlight Exposure: Avoid prolonged exposure to sunlight to prevent discoloration or damage to upholstery and plastic parts.
Moving Parts: Periodically treat moving parts with fast-evaporating cleaning and lubricating agents (e.g., WD-40).
Safety Belts: Regularly check the adjustment of safety belts and other adjustable elements.
Wheels, Brakes, Suspension: Regularly clean off sand, salt, and other contaminants. Avoid using lubricants in areas where sand can accumulate.
Salt Water: Avoid contact with salt water (seawater, sea breeze, road salt) to prevent corrosion.
Storage: Store the stroller in a place inaccessible to children.
Damage: Do not use the stroller if any component is damaged.
Original Parts: Only original parts approved by the manufacturer should be used.
