378....7770 REV A 4-22-03
Template for Mounting or Cutout
FLOOR LEVEL
TO SCALE
Place within 12
inches from the
floor to the
horizontal
centerline of the
detector case.
5 3/4 INCHES
2 1/4
INCHES
CHASSIS
GROUNDS
FUSE FUSE
2
nd
Red Wire
(if available) to
converter
BLACK
BATTERY
OUTPUT SIDE
CONNECT TO
CONVERTER
RV BATTERY

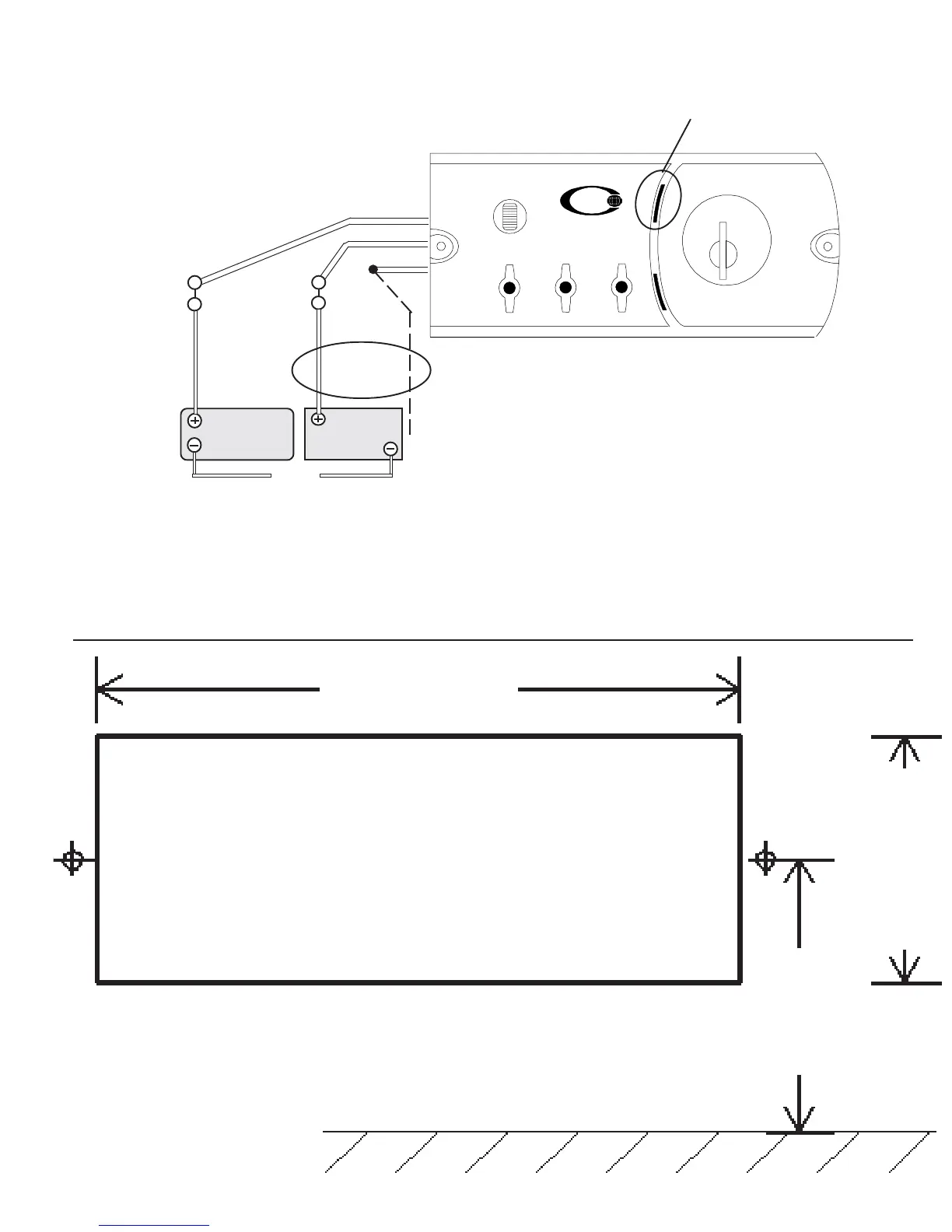

TYPICAL INSTALLATION:
The cutout should be an opening 5-3/4 inch long by 2-1/4 inch high. Place the detector in the opening and
mark the two mounting hole locations with an ice pick or any other sharp object. Remove the detector and
connect it as shown in the wiring diagram. Install the detector to the opening and secure it with two number
4 or 5 screws 3/8 to 1/2 inch long.
11/01
__
____Opitional master cutoff (Not to scale)
switch used for storage only,
offered by some manufacturers.
(Not to scale)
RED
RED
Gas Sensing Area
CCI CONTROLS
LP GAS LEAK DETECTOR
OPERATING ALARM FAULT
Low
Voltage
Pre Tell 21
MUTE
