CEAPR DR400/135CDI Pilot Operating Handbook

Supplement POH DR400/120D, DR400/140B,
DR400/180R, DR400/200R, DR400/RP
Issue 3 – July 2014 Page 1 - 9
FUEL TANK (110 Litres)
Fuel shut-off
with fuel filter
and
drain-valve
Electric
fuel pump,
Switch
Fire-wall
Fuel quantity
transmitter
Vent/overflow line
Filler
port
Drain valve
Strainer
Power lever
Fuel
quantity
ON
O
F
F
Option.fuel
quantity
CED
6
8
10 12 14
16
FUEL
F
½
E
FUEL
2
1
3WESTACH
Fuel
low-level
Fuel
temperature
Optional
switch
Optional tank
50 litres
Engine-driven
fuel pump
FU E L
FIL T E R
Excess from
fuel injectors
Excess from
fuel pump
ENGINE
VOLTSFUEL
F
½
½
E
E
FUEL
FUEL
2
1
3
4
WESTACH
F
FADEC

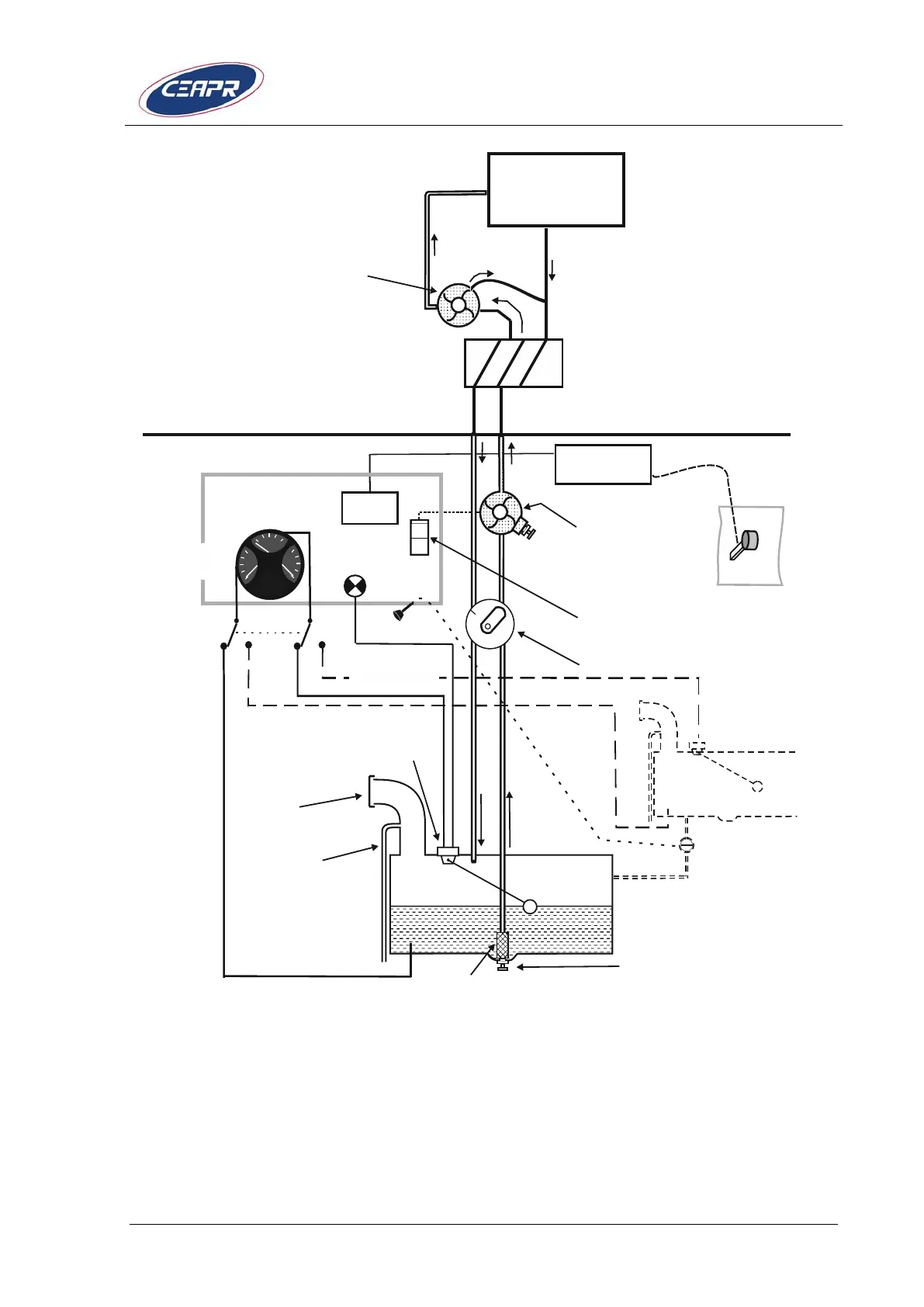

Figure 1-3/1 fuel system simplified diagram (Instrument panel models #1
and #2)
