Cedar Ridge CRHEB30RT - GAS SELECTION AND CONNECTION

www.usaprocom.com
13200015-01B
INSTALLATION
FLOOR CLEARANCES
Hearth
5"
Min.
Combustible
Material
14"
Min.
Combustible
Material
Noncombustible Material

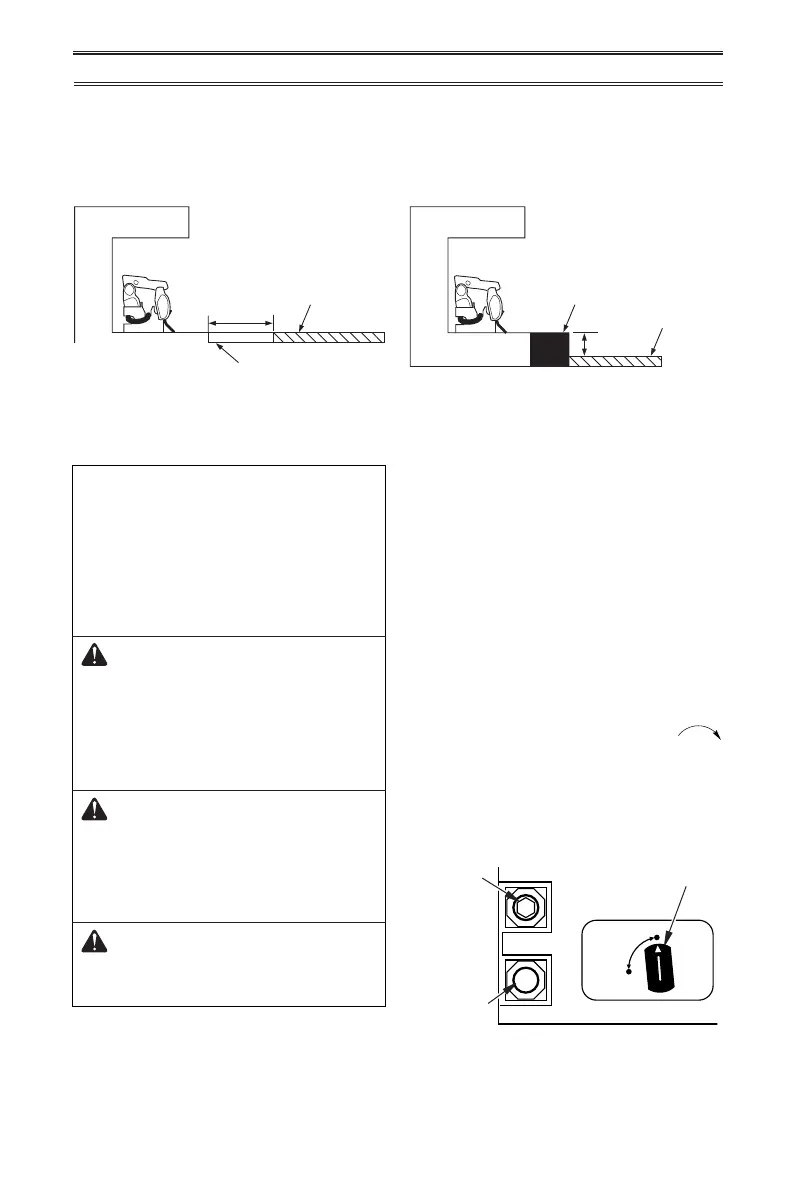

Figure 8 - Minimum Fireplace Clearances
If Installed at Floor Level
Figure 9 - Minimum Fireplace Clearances
Above Combustible Flooring
A. If installing appliance on the oor level,
you must maintain the minimum distance
of 14" to combustibles (see Figure 8).
B. If combustible materials are less than 14"
to the replace, you must install appliance
at least 5" above the combustible ooring
(see Figure 9).
NG
LP
Left Side of Heater
NG
LP
Fuel Selector Knob
Hex Plug
Figure 10 - Settings for Natural Gas
Selection
Gas
Connection
Fitting
GAS SELECTION
This appliance is factory
preset for propane/LP gas.
No changes are required for
connecting to propane/LP. Only
a qualied installer or service
technician can perform gas selec-
tion and connecting to gas supply.
CAUTION: Two gas line in-
stallations at the same time are
prohibited. The access plate
to the simple switching means
shall not be opened while the
heater is in operation.
CAUTION: To avoid gas
leakage at the inlet of regulator,
a qualied installer or service
technician must use supplied
hex plug with sealant.
WARNING: Do not attempt to
access or change the setting of
the fuel selection means.
Access to and adjustment of the fuel selection
means must only be performed by a qualied
service person when connecting this appliance to
a specied fuel supply at the time of installation.
Change of the selector setting to other than
the fuel type specied at the time of installa-
tion could damage this appliance and render
it inoperable.
The installer shall replace the access cover
before completing the installation and operat-
ing this appliance.
For changing from propane to
natural gas supply:
1. Remove 2 screws from cover plate located
on left side of heater (see Figure 10).
2. For NATURAL GAS, press in knob using a
at screwdriver with a blade with thickness
of a quarter and turn knob clockwise
until the knob locks into the NG position
(see Figure 10). Fuel selection device
must be locked in the NG position. Do not
operate heater between locked positions!
3. Replace cover over fuel selection device
and reinstall screws.
