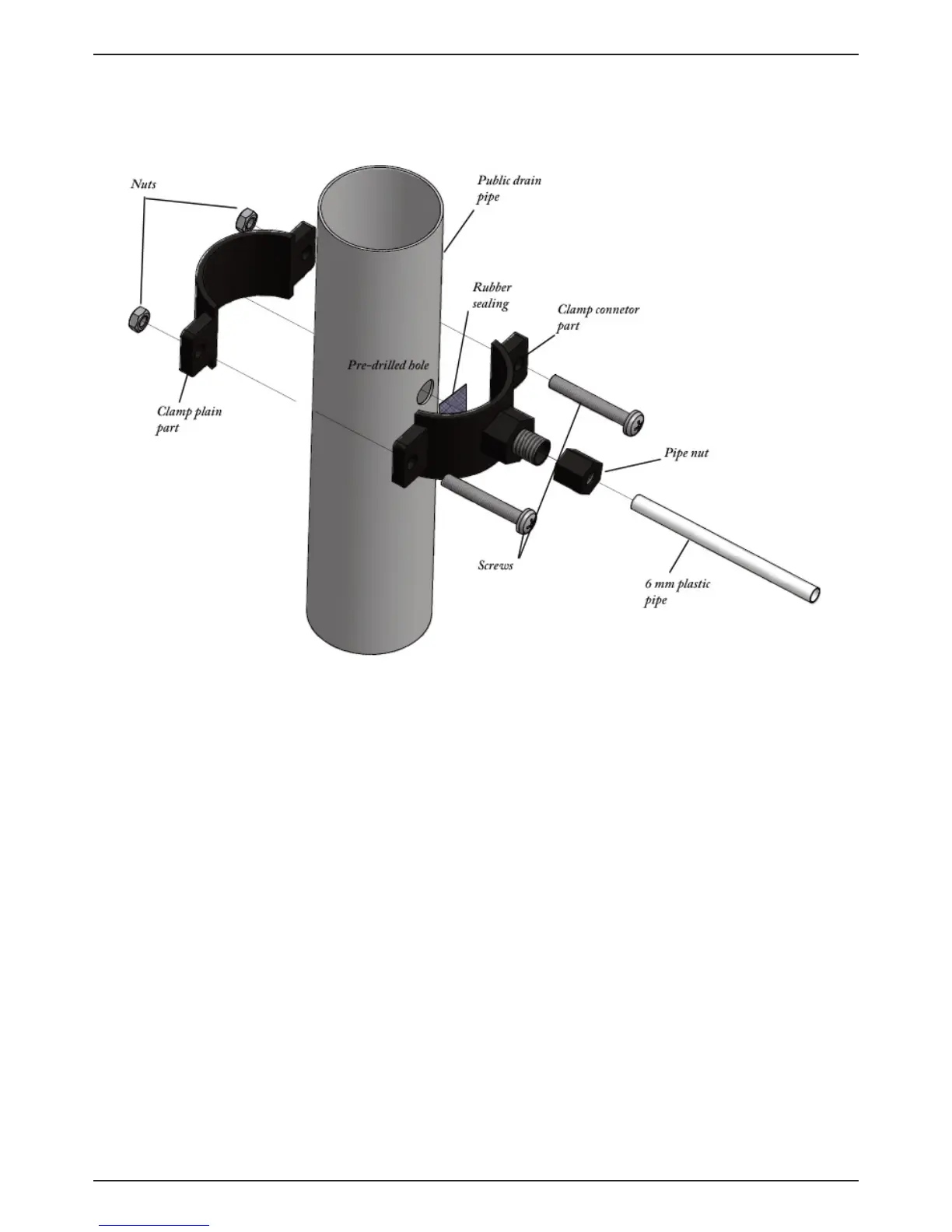

Connecting the unit to the drain using the kit
supplied
1. Drill a hole on the public drain pipe ( min. 6.5, max 10 mm).
2. Place the two clamps on the pipe in a way, that the hole on the drain pipe is concentrical to the
hole on the clamp’s hole which has a nut on it. Between this clamp and the pipe, put the rubber
sealing. The rubber sealing has on one side a self-adhesive film on it, so you can glue it to the pipe,
too.
3. Using the supplied screws, tight the two clamps together.
4. Insert the pipe nut on the 6 mm plastic pipe.
5. Firmly insert the pipe with the nut into the drain pipe. The 6 mm plastic pipe’s end should over-
hang from the drain’s pipe wall at least 3 mm.
6. Tight the nut carefully.
