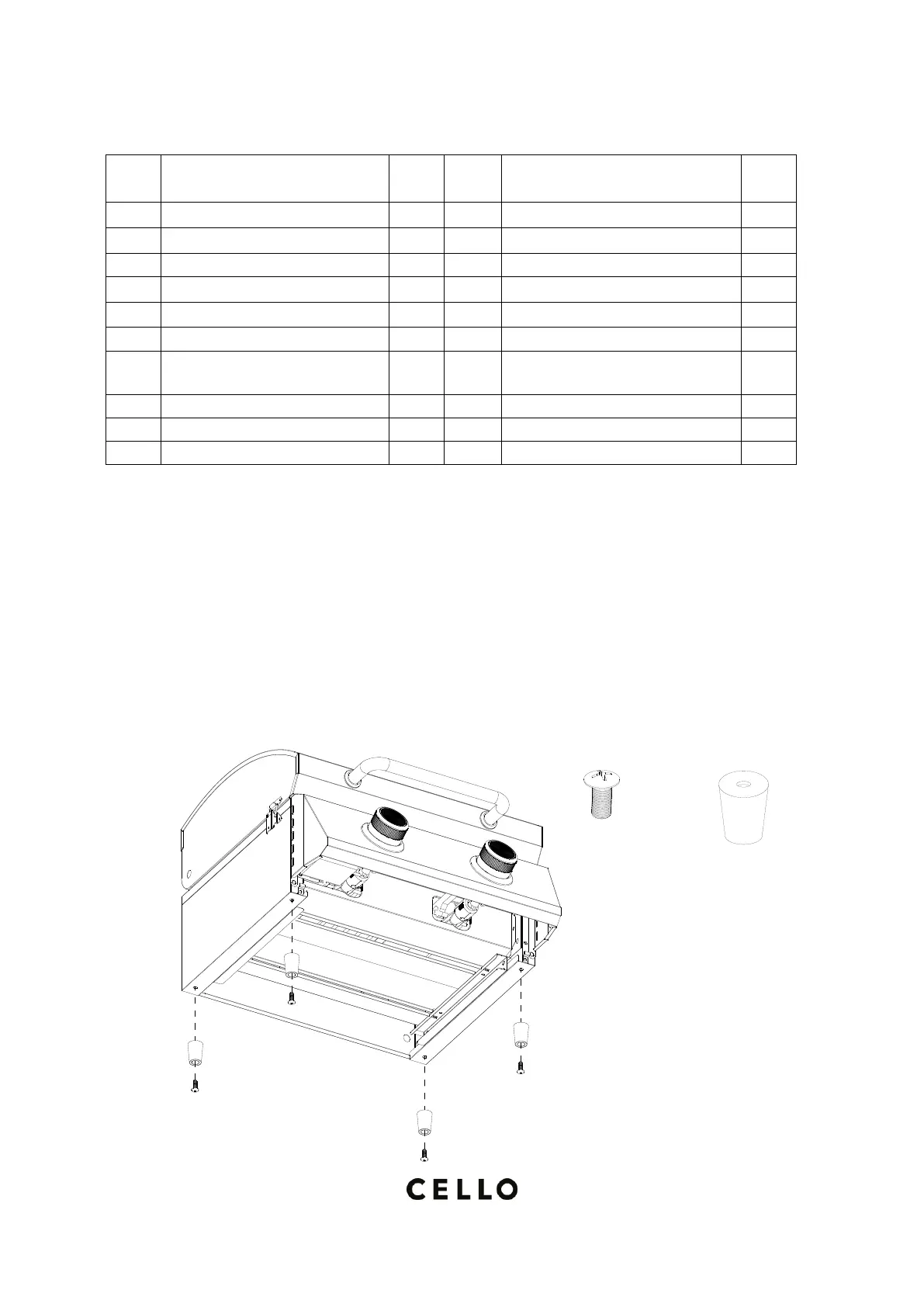

Cello 501986729 - Assembly and Parts; Single Part List; Mounting Steps

4
2. Single part list
seq.
NO.
appellation
qty
seq.
NO.
appellation
qty
1
Lid assembled
1
11
Control panel
1
2
Thermometer
1
12
Gas tube
1
3
Spindle of lid
2
13
Gas valve
2
4
Lid handle
1
14
Main burner
2
5
Cooking grid
1
15
Clamp
2
6
Firebox rear upper panel
1
16
Flame tamer
2
7
Firebox rear lower panel
1
17
Gas regulator and hose for
small gas bottle
1
8
Firebox
1
18
Gas connector
1
9
Feet
4
10
Grease collector
1
3. Mounting steps
Make sure your grill is assembled properly. Detailed assembly instructions are packed with
each grill giving specific assembly procedures for each model. Follow these instructions
carefully to ensure the correct and safe assembly of the grill.
Caution: Although we take every effort to ensure that the assembly process is as easy as
possible, it is inherent with fabricated steel parts that corners and edged can cause cuts if
improperly handled during assembly procedures. Be careful while handling any parts during
assembly. It is strongly recommended that you protect hands with a pair of work gloves.
STEP1
X4
5/32-32
X4
Control Knob BaseControl Knob BaseControl Knob Base
