Page 8 For technical questions, please call 1-800-444-3353. Item 68028
68068

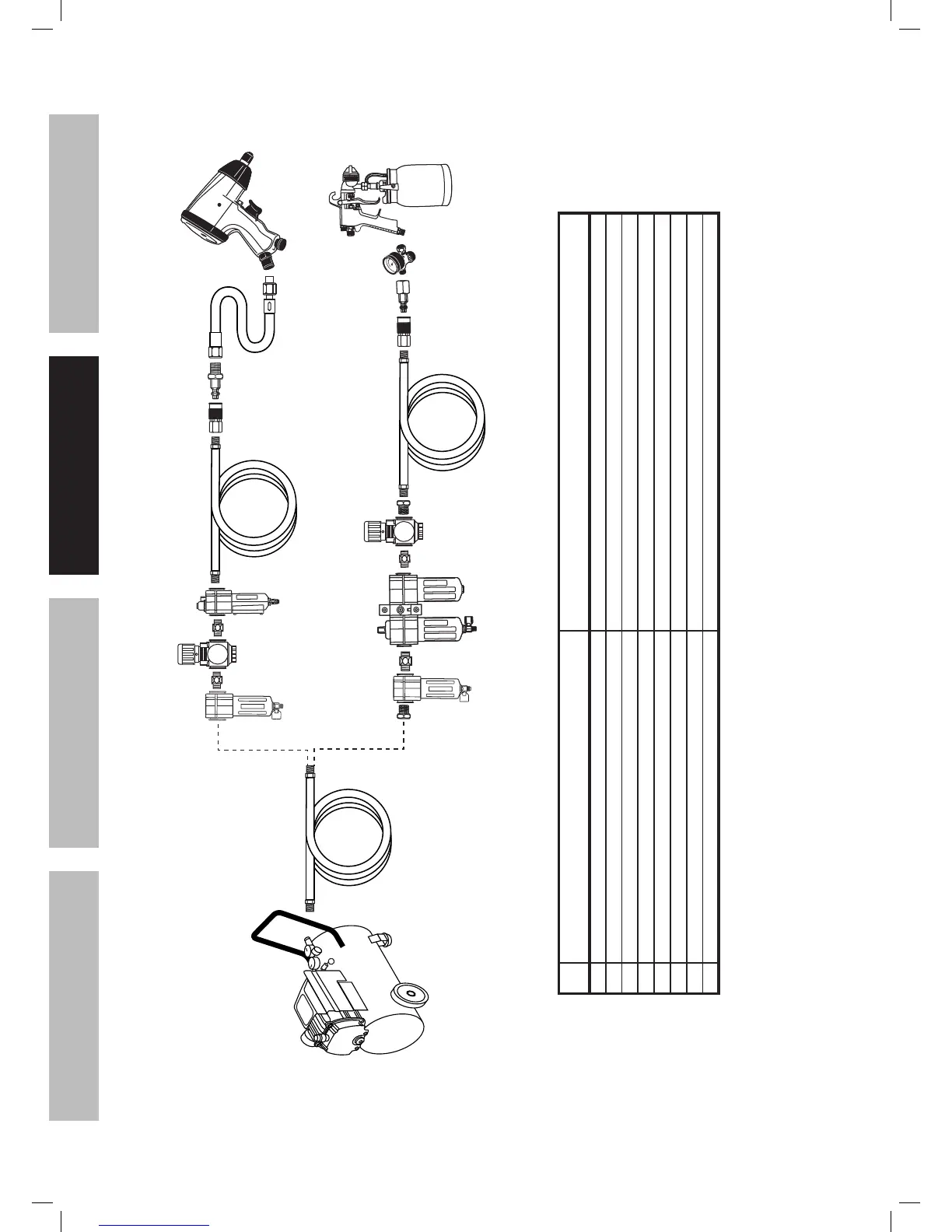

Figure A: Portable Air Supply Setup
G
A
E
E H
F
B
Non-lubricated Tools Lubricated Tools
A
B
C
C
D
A
Description Function
A Air Hose Connects air to tool
B Filter Prevents dirt and condensation from damaging tool or work piece
C Regulator Adjusts air pressure to tool D Lubricator (optional) For air tool lubrication
E Coupler and Plug Provides quick connection and release
F Leader Hose (optional) Increases coupler life
G Air Cleaner / Dryer (optional) Prevents water vapor from damaging work piece
H Air Adjusting Valve (optional) For fine tuning airflow at tool
SAFETY OPERATION MAINTENANCESETUP
