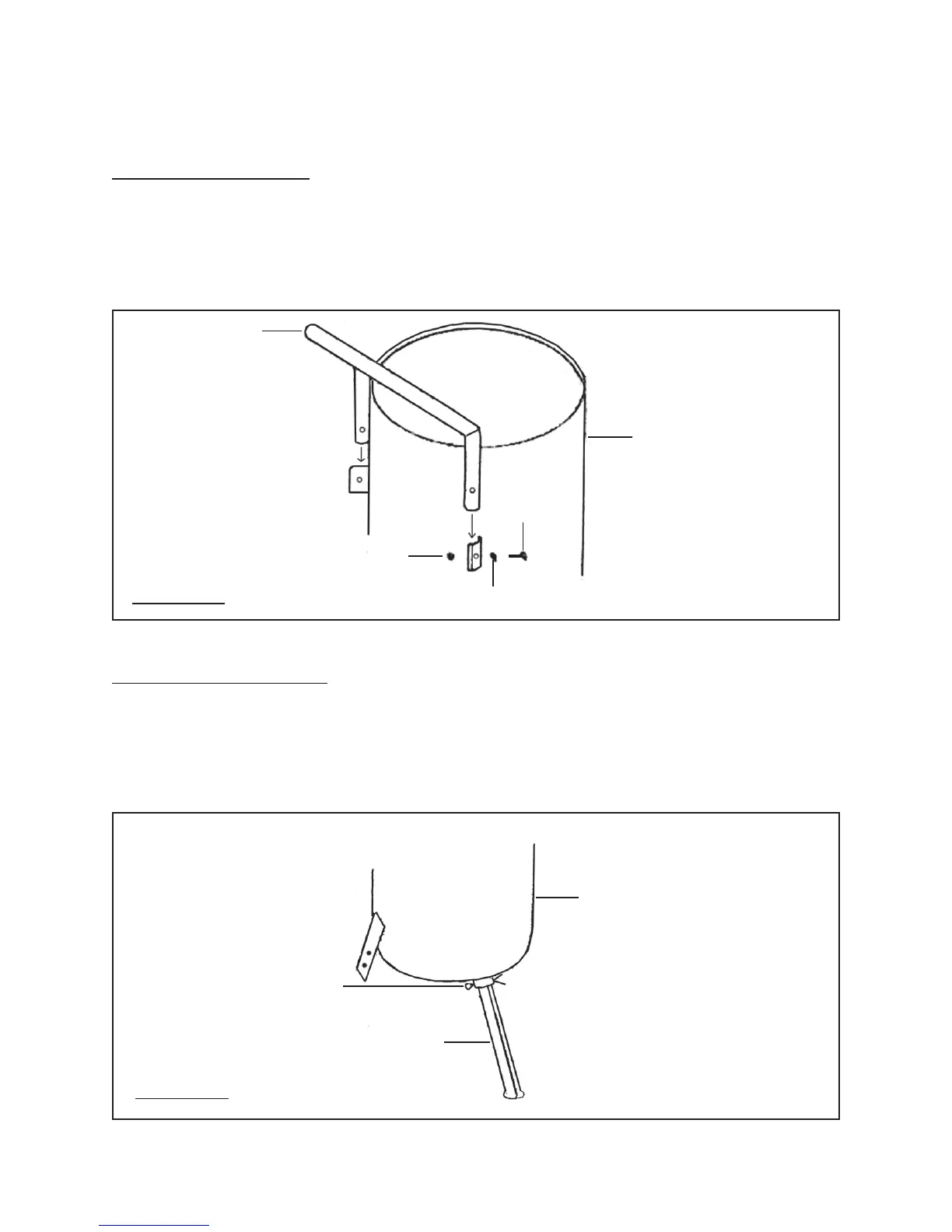

To Attach The Handle:
1. To attach the Handle (2) to the Tank Assembly (3), align the two mounting holes
in the Handle with the two mounting holes located on the side of the Tank. Then
secure the Handle to the Tank, using two Screws (11), two Flat Washers (10),
and two Hex Nuts (9). (See Figure B.)
FIGURE B
HANDLE
(2)
TANK ASSEMBLY
(3)
HEX NUT
(9)
FLAT WASHER
(10)
SCREW
(11)
To Attach The Tank Leg:
1. To attach the Tank Leg (17) to the Tank Assembly (3), insert the Tank Leg into
the bottom mounting sleeve of the Tank. Then secure the Tank Leg to the Tank,
using one Cotter Pin (24). (See Figure C.)
TANK LEG
(17)
TANK ASSEMBLY
(3)
COTTER PIN
(24)
FIGURE C
