1

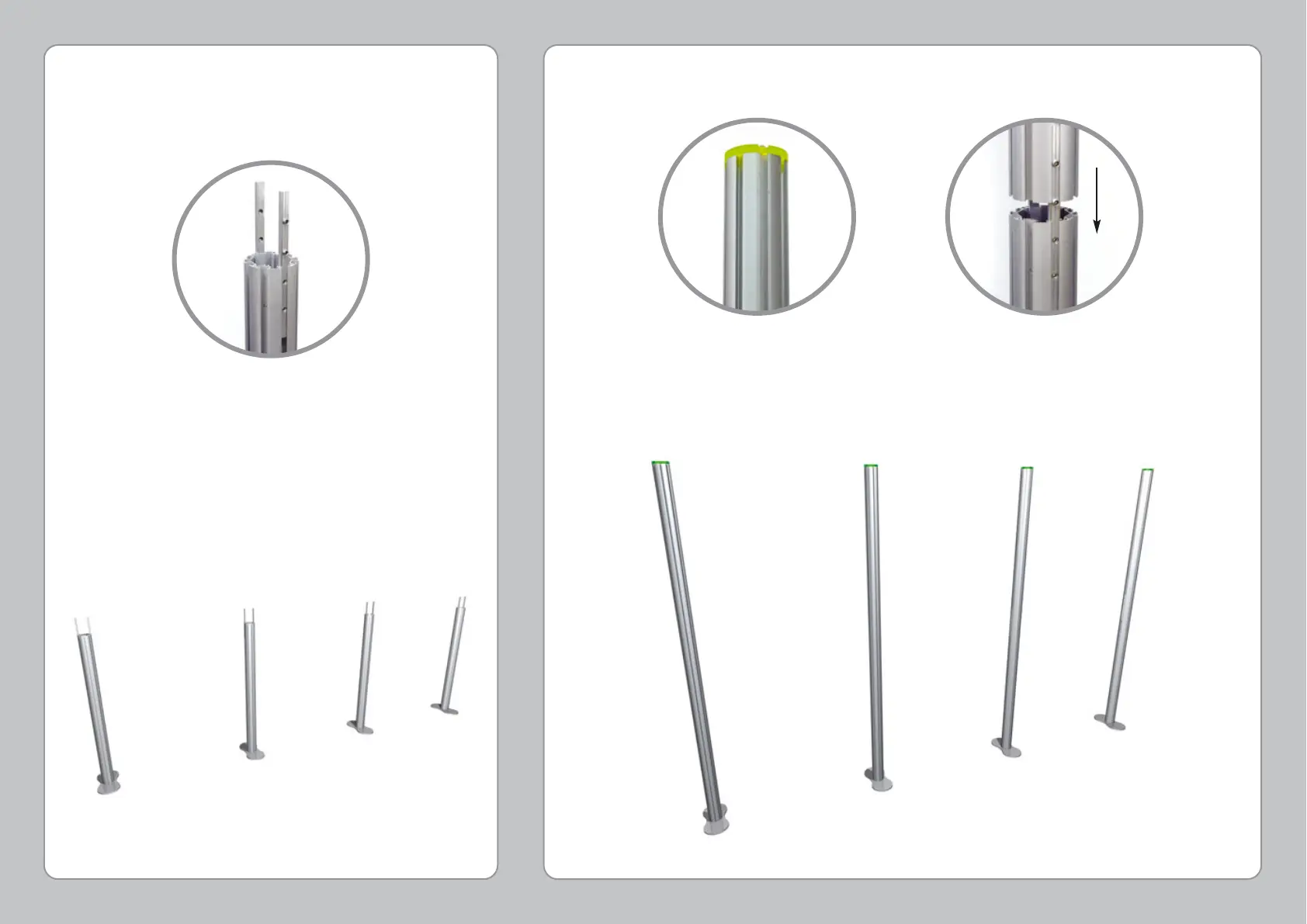

Stand base on the ground.
Loosen grub screws and slide
both connector bars half way
out of groove and retighten.
Repeat for other base posts.
Note: Base plates
pre-assembled on kits
supplied in carry bag only.
2
The upper 8-way post end
cap has two notches which
should align with the
connector bar grooves
shown in stage 3.
3
Join posts and tighten the
grub screws to make
assembly secure.
Repeat for other base posts.
