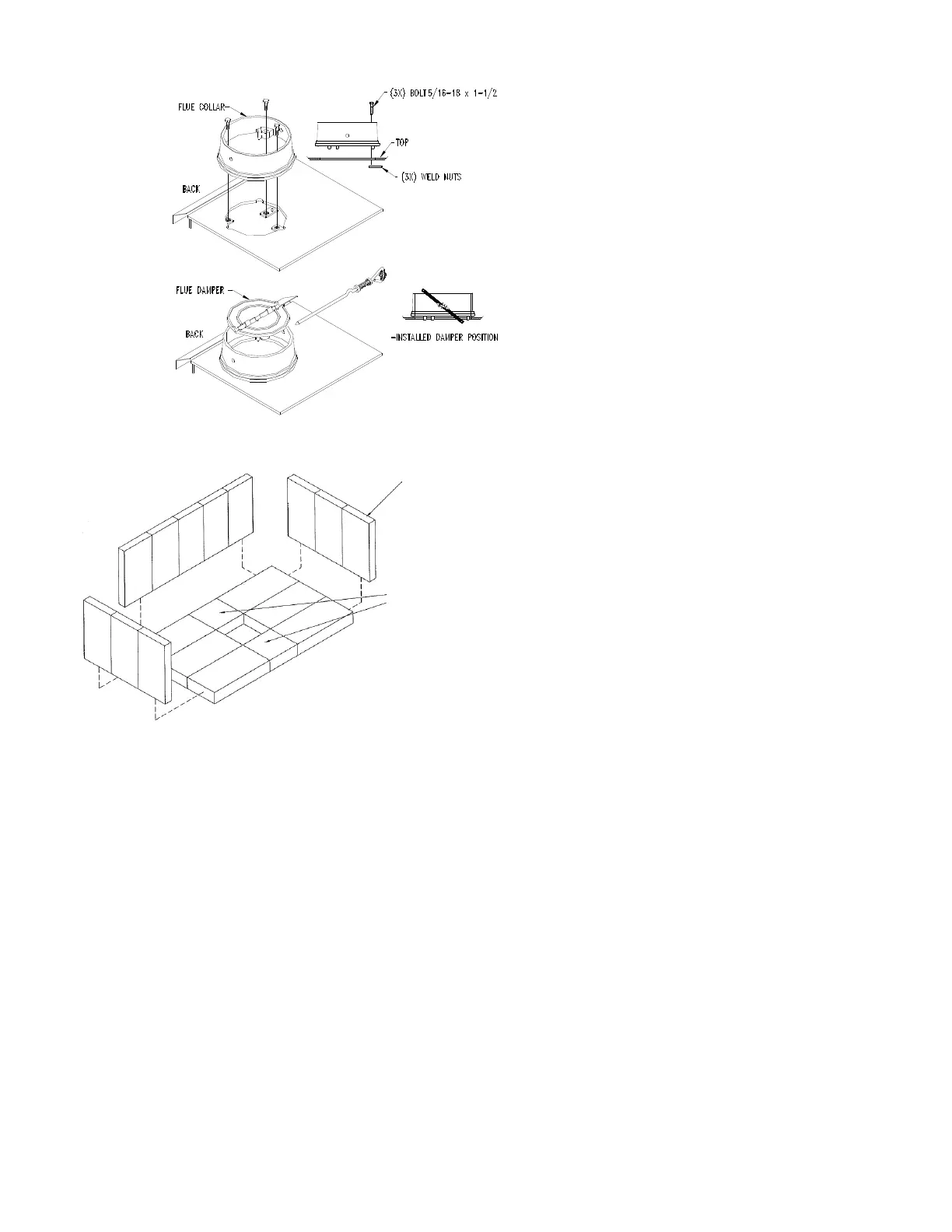

Cast iron flue collar installation:
1. Peel off the tape from the back
of the gasket and attach the
gasket to the rope groove at
the back of the flue collar;
2. Mount flue collar on top of the
stove. Make sure that the
damper holes on each side of
the flue collar are parallel to the
back of the stove;
3. Fix the flue collar with the
hardware supplied;
4. Install the flue damper inside
the flue collar as illustrated.
